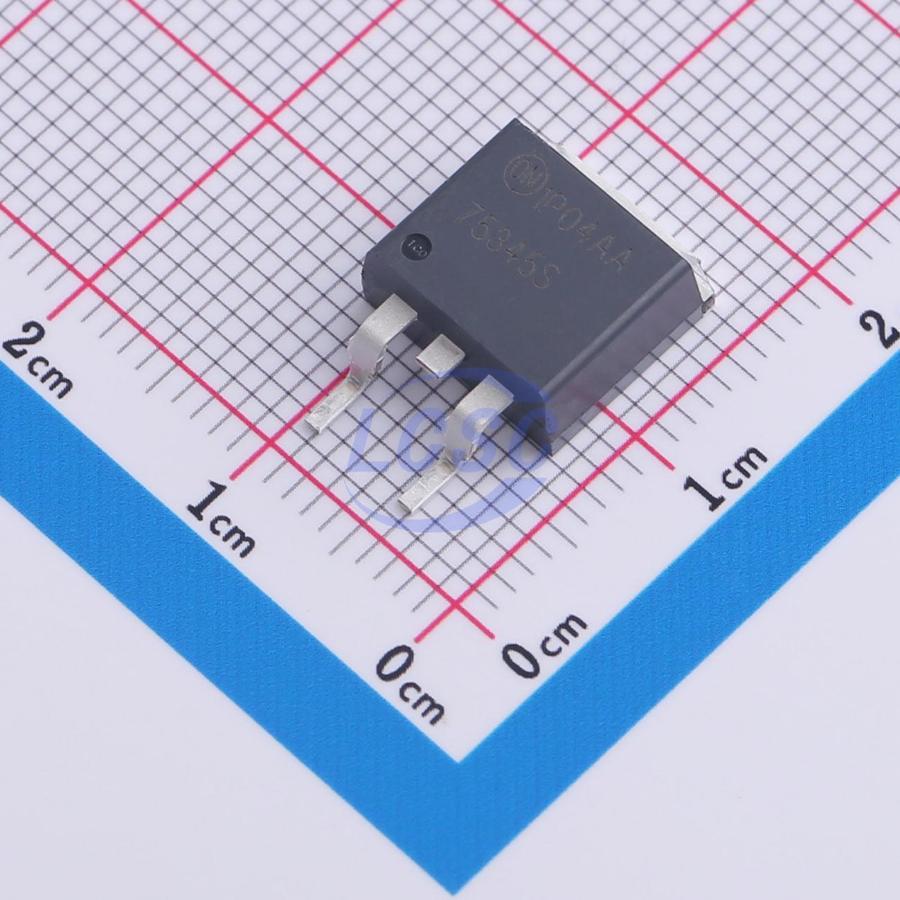

HUF75345S3ST
N-Channel 55V 75A 325W Surface Mount D2PAK-3
D2PAK-3ROHS3 CompliantActive
MOSFET N-CH 55V 75A D2PAK-3
- Manufacturer
- onsemi
- Manufacturer part #
- HUF75345S3ST
- Store part #
- C463510
- Package / case
- D2PAK-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
335 in stock
#C463510
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹491.02 | ₹491.02 |
| 10+ | ₹464.56 | ₹4,645.60 |
| 30+ | ₹448.64 | ₹13,459.20 |
| 100+ | ₹432.52 | ₹43,252.00 |
| 500+ | ₹425.20 | ₹2,12,600.00 |
| 800+ | ₹421.76 | ₹3,37,408.00 |
1 × ₹491.02
₹491.02
excl. GST
₹579.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
HUF75345S3ST
₹491.02 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.45nF
- Ciss-Input Capacitance
- 4nF
- Pd - Power Dissipation
- 325W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 55V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 275nC@20V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
These N−Channel power MOSFETs are manufactured using the innovative UltraFET process. This advanced process technology achieves the lowest possible on−resistance per silicon area, resulting in outstanding performance. This device is capable of withstanding high energy in the avalanche mode and the diode exhibits very low reverse recovery time and stored charge. It was designed for use in applications where power efficiency is important, such as switching regulators, switching converters, motor drivers, relay drivers, low−voltage bus switches, and power management in portable and battery−operated products.
Applications
- Switching regulators
- Switching converters
- Motor drivers
- Relay drivers
- Low-voltage bus switches
- Power management for portable and battery-powered products
Key features
- 75 A, 55 V
- Simulation Models − Temperature Compensated PSPICE and SABER Models − Thermal Impedance SPICE and SABER Models
- Peak Current vs Pulse Width Curve
- UIS Rating Curve
- These Devices are Pb−Free
