onsemiDatasheet (PDF)

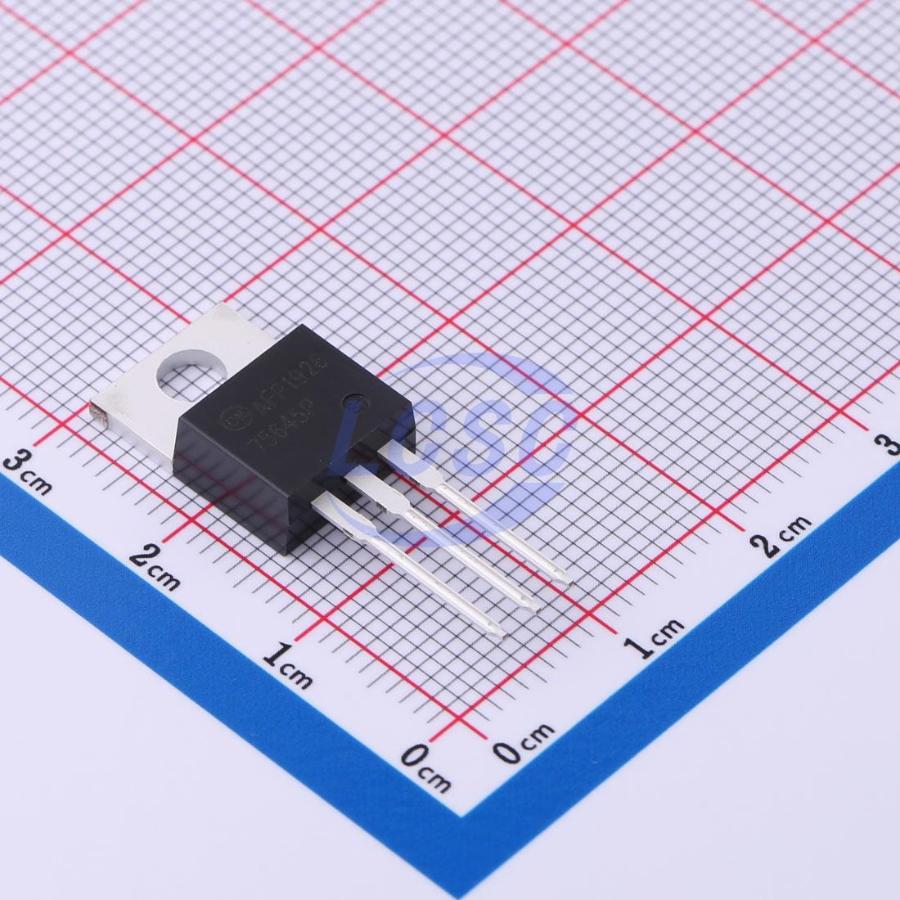

HUF75645P3
N-Channel 100V 75A 310W Through Hole TO-220AB
TO-220ABROHS3 CompliantActive
MOSFET N-CH 100V 75A TO-220AB
- Manufacturer
- onsemi
- Manufacturer part #
- HUF75645P3
- Store part #
- C512967
- Package / case
- TO-220AB
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
200 in stock
#C512967
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹443.80 | ₹443.80 |
| 10+ | ₹378.34 | ₹3,783.40 |
| 50+ | ₹339.44 | ₹16,972.00 |
| 100+ | ₹299.90 | ₹29,990.00 |
| 500+ | ₹281.76 | ₹1,40,880.00 |
| 800+ | ₹273.76 | ₹2,19,008.00 |
1 × ₹443.80
₹443.80
excl. GST
₹523.68 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
HUF75645P3
₹443.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 810pF
- Ciss-Input Capacitance
- 3.79nF
- Pd - Power Dissipation
- 310W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Current - Continuous Drain(Id)
- 75A
- Reverse Transfer Capacitance (Crss)
- 230pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 238nC@20V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.9 g
Overview
Key features
- Ultra-low on-resistance
- r<sub>DS(ON)</sub> = 0.014 Ω, v<sub>GS</sub> = 10 V
- Simulation Models
- Temperature-compensated PSPICE and SABER electrical models
- Spice and Saber thermal impedance models
- Peak current vs. pulse width curves
- UIS rating curves
