HXY MOSFETDatasheet (PDF)

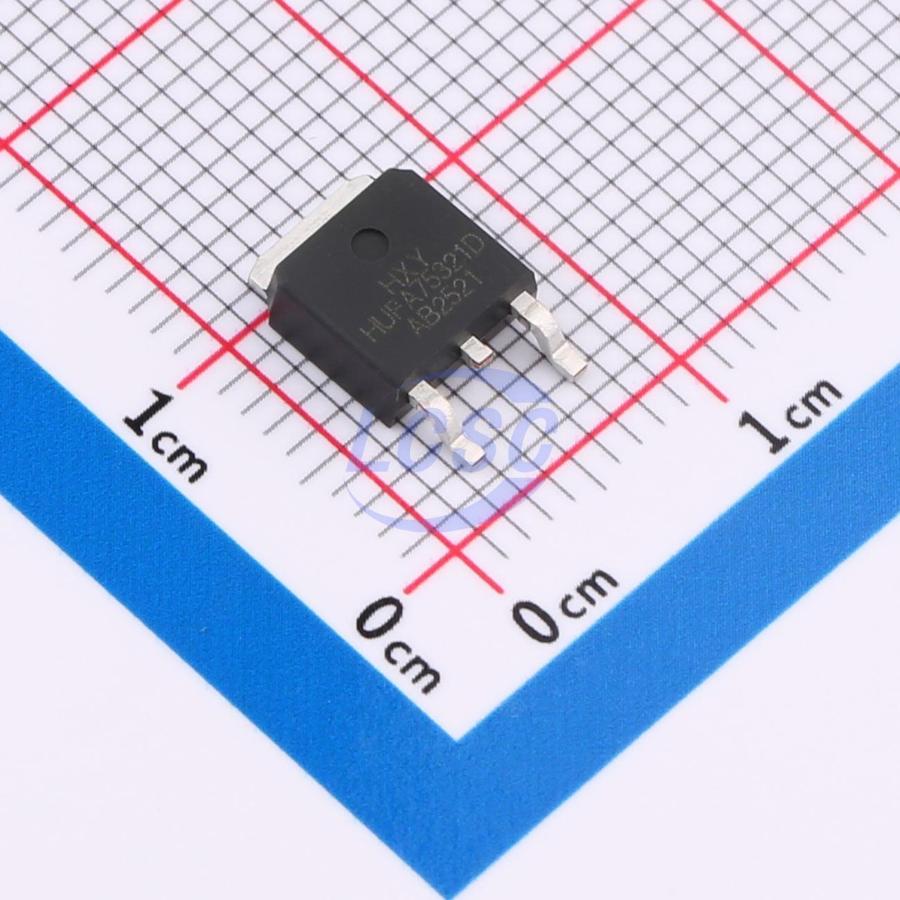

HUFA75321D3ST-HXY
60V 20A 34.7W 25mΩ@10V 1 N-channel N-Channel TO-252-2L Single FETs, MOSFETs
TO-252-2LRoHSActive
MOSFET 60V 20A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HUFA75321D3ST-HXY
- Store part #
- C49256448
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
193 in stock
#C49256448
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.87 | ₹64.87 |
| 10+ | ₹51.98 | ₹519.80 |
| 30+ | ₹46.40 | ₹1,392.00 |
| 100+ | ₹39.52 | ₹3,952.00 |
| 500+ | ₹36.51 | ₹18,255.00 |
| 1,000+ | ₹34.58 | ₹34,580.00 |
1 × ₹64.87
₹64.87
excl. GST
₹76.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HUFA75321D3ST-HXY
₹64.87 for 1 + GST
Specifications
- Configuration
- Standalone
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+150℃
- Output Capacitance(Coss)
- 60pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 1.355nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 49pF
- RDS(on)
- 25mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 22nC@10V
- Gate Threshold Voltage (Vgs(th))
- 1.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.365 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DMN6040SK3-HXY#C22366761HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 70 | ₹33.62 · 70 in stock | View |
 | STD20NF06L-HXY#C22366764HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 450 | ₹24.32 · 450 in stock | View |
 | STD20NF06T4-HXY#C22366765HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 20 | ₹26.35 · 20 in stock | View |
 | IRFR4105PBF-HXY#C22366766HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 55 | ₹27.17 · 55 in stock | View |
 | IRLR2705PBF-HXY#C22366767HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 185 | ₹26.76 · 185 in stock | View |
