HEXIN

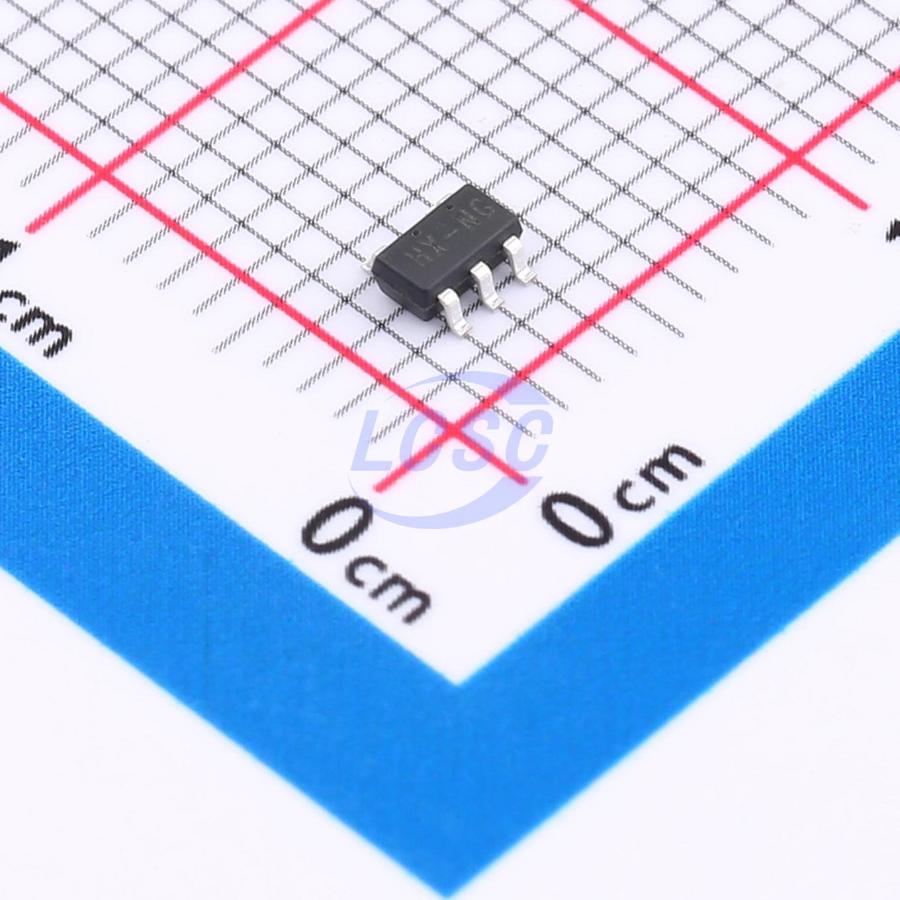

HX1001-GEC

Step-down type 1MHz Fixed 3.3V 700mA SOT-23-5L Voltage Regulators - DC DC Switching Regulators

SOT-23-5LRoHSActive

Synchronous Buck DC/DC Converter

Manufacturer: HEXIN
Manufacturer part #: HX1001-GEC
Store part #: C42412961
Package / case: SOT-23-5L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,290 in stock

#C42412961

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹9.92	₹99.20
100+	₹7.85	₹785.00
300+	₹6.80	₹2,040.00
3,000+	₹6.02	₹18,060.00
6,000+	₹5.40	₹32,400.00
9,000+	₹5.09	₹45,810.00

Quantity (min 10, multiples of 10)

10 × ₹9.92

₹99.20

excl. GST

₹117.06 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX1001-GEC

₹99.20 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+85℃@(TA)
Function: Step-down type
Number of Outputs: 1
Frequency - Switching: 1MHz
Features: Light load efficient mode;Overcurrent Protection
Topology: Buck
Output Type: Fixed
Operating Voltage: 3.4V~5.5V
Switch tube (built-in/external): Built-in
Output Voltage: 3.3V
Output Current: 700mA
Quiescent Current: 200uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.045 g

Overview

The HX1001 is high efficiency synchronous, PWM step-down DC/DC converters working under an input voltage range from 2.2V to 5.5V. This feature makes the HX1001 suitable for single Li-Lon battery-powered applications. 100% duty cycle capability extends battery life in portable devices, while the quiescent current is 200μA with no load, and drops to <1μA in shutdown. The internal synchronous switch is desired to increase efficiency without an external Schottky diode. The 1.0MHz/1.4MHz switching frequency allows the using of tiny, low profile inductors and ceramic capacitors, which minimized overall solution footprint.

Applications

Digital cameras and MP3
Palmtop computers / PDAs
Cellular phones
Wireless handsets and DSL modems
Portable media players
PC cards

Key features

Up to 95% Efficiency
Current Mode Operation for Excellent Line and Load Transient Response
700mA Output Current
Low Quiescent Current: 200μA
Output Voltage: 0.6V ~ 5.5V
Automatic PWM/PFM Mode Switching
No Schottky Diode Required
Frequency Operation: 1.0MHz for Fixed Output Voltage and 1.4MHz for Adjustable Output Voltage
Short-Circuit Protection
Shutdown Quiescent Current: <1μA
Low Profile TSOT/ SOT-23-5L Package (lead-free packaging is now available)
