HEXINDatasheet (PDF)

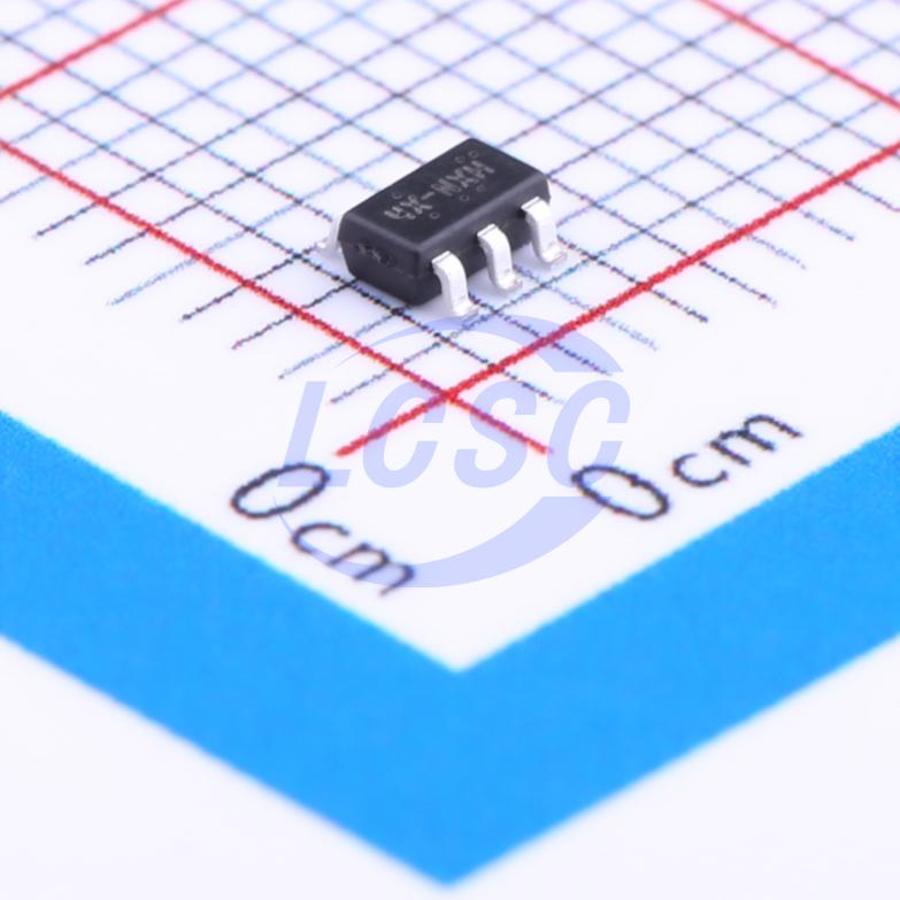

HX3001-AFC
1.1MHz~1.7MHz Boost Adjustable 2.5V~5V 500mA SOT-23-6 Voltage Regulators - DC DC Switching Regulators
SOT-23-6RoHSActive
High Efficiency Synchronous Boost DC/DC Regulator
- Manufacturer
- HEXIN
- Manufacturer part #
- HX3001-AFC
- Store part #
- C172352
- Package / case
- SOT-23-6
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,095 in stock
#C172352
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.71 | ₹128.55 |
| 50+ | ₹20.18 | ₹1,009.00 |
| 150+ | ₹17.81 | ₹2,671.50 |
| 500+ | ₹14.86 | ₹7,430.00 |
| 3,000+ | ₹13.40 | ₹40,200.00 |
| 6,000+ | ₹12.61 | ₹75,660.00 |
5 × ₹25.71
₹128.55
excl. GST
₹151.69 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX3001-AFC
₹128.55 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Frequency - Switching
- 1.1MHz~1.7MHz
- Function
- Boost
- Number of Outputs
- 1
- Features
- Light load efficient mode;Load disconnect
- Output Type
- Adjustable
- Topology
- Boost
- Operating Voltage
- 1V~4.4V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 2.5V~5V
- Output Current
- 500mA
- Quiescent Current
- 280uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The HX3001 is high efficiency synchronous, PWM step-up DC/DC converters optimized to provide a high efficient solution to medium power systems. The devices work with a 1.4MHz fixed frequency switching. These features minimize overall solution footprint by allowing the use of tiny, low profile inductors and ceramic capacitors. Automatic PWM/PFM mode switching at light load saves power and improves efficiency. The HX3001 is capable of supplying an output voltage between 2.5V and 5V, the internal synchronous switch is desired to provide high efficiency without Schottky. The HX3001 regulators are available in the industry standard SOT-23-6L power packages (or upon request).
Applications
- Digital Cameras and MP3
- Palmtop Computers / PDAs
- Cellular Phones
- Wireless Handsets And DSL Modems
- PC Cards
- Portable Media Players
Key features
- Up to 97% Efficiency
- Shut-down current: 2μA
- Load Current: up to 500mA
- Low Voltage Start-up HX3001-AFC: 1V HX3001-AFC7: 2V
- Input Voltage HX3001-AFC: 1V ~ 4.4V HX3001-AFC7: 2V ～ 4.4V
- Output Voltage: 2.5V ~ 5V (up to 5V with Schottky)
- Low Switch On Resistance RDS(ON), Internal Switch: 0.35Ω
- 1.4MHz Fixed Frequency Switching
- Automatic PWM/PFM Mode Switching
- Low Profile SOT-23-6L Package (lead-free packaging is now available)
