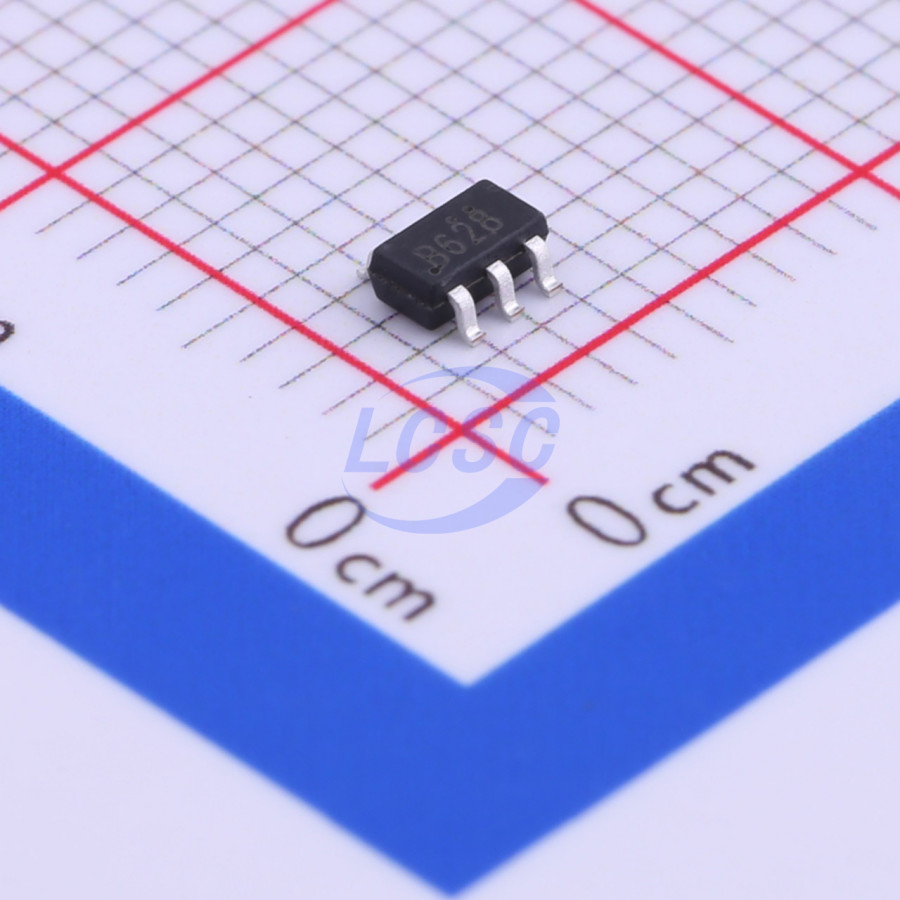

hengjiaxing

HX3608

Boost Switching Regulator IC Adjustable 2.5V~28V 1 Output SOT-23-6L

SOT-23-6LROHS CompliantActive

2A High Efficiency Boost DC/DC Voltage Regulator

Manufacturer: hengjiaxing
Manufacturer part #: HX3608
Store part #: C296278
Package / case: SOT-23-6L
Category: Voltage Regulators - DC DC Switching Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

41,850 in stock

#C296278

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹11.59	₹57.95
50+	₹9.09	₹454.50
150+	₹7.83	₹1,174.50
500+	₹6.89	₹3,445.00
3,000+	₹6.03	₹18,090.00
6,000+	₹5.66	₹33,960.00

Quantity (min 5, multiples of 5)

5 × ₹11.59

₹57.95

excl. GST

₹68.38 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

HX3608

₹57.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+80℃@(TA)
Frequency - Switching: 1.2MHz
Function: Boost
Number of Outputs: 1
Features: Light load efficient mode;Overcurrent Protection
Output Type: Adjustable
Topology: Boost
Operating Voltage: 2V~24V
Switch tube (built-in/external): Built-in
Output Voltage: 2.5V~28V
Output Current: 3.5A
Quiescent Current: 90uA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.041 g

Overview

HX3608 is a miniature, high-efficiency boost DC/DC regulator. The circuit consists of a current-mode PWM control loop, error amplifier, slope compensation circuit, comparator, and power switch. This IC operates efficiently and stably over a wide load range, with an integrated 4A power switch and soft-start protection circuit. A conversion efficiency of up to 93% effectively extends battery life. The output voltage can be set by adjusting two external resistors.
