HEXINDatasheet (PDF)

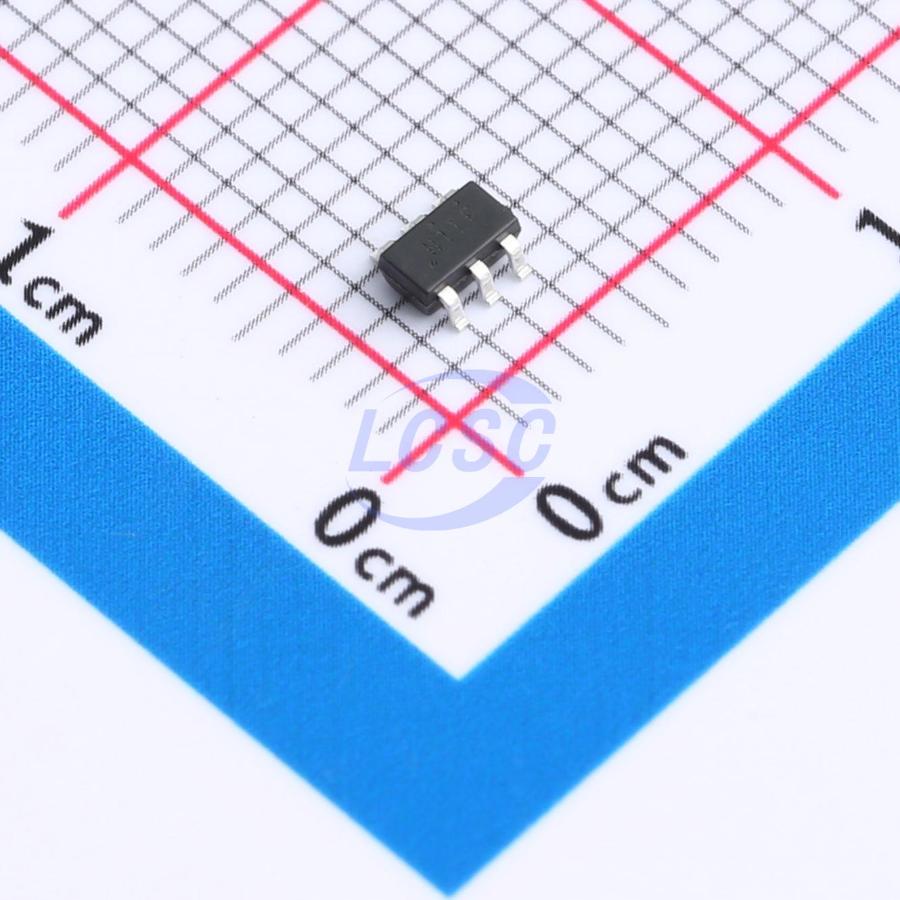

HX4002B-MFC
boost converter 1.2MHz 3.17V~3.43V 250mA SOT-23-6L Voltage Regulators - DC DC Switching Regulators
SOT-23-6LRoHSActive
Low-noise regulated charge pump DC/DC converter
- Manufacturer
- HEXIN
- Manufacturer part #
- HX4002B-MFC
- Store part #
- C42413067
- Package / case
- SOT-23-6L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,915 in stock
#C42413067
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.13 | ₹60.65 |
| 50+ | ₹9.53 | ₹476.50 |
| 150+ | ₹8.23 | ₹1,234.50 |
| 500+ | ₹7.25 | ₹3,625.00 |
| 3,000+ | ₹6.47 | ₹19,410.00 |
| 6,000+ | ₹6.07 | ₹36,420.00 |
5 × ₹12.13
₹60.65
excl. GST
₹71.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HX4002B-MFC
₹60.65 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Function
- boost converter
- Frequency - Switching
- 1.2MHz
- Features
- Low ripple / low noise architecture;Low-power standby;Output short-circuit protection;Soft-start
- Operating Voltage
- 1.8V~5V
- Output Voltage
- 3.17V~3.43V
- Output Current
- 250mA
- Quiescent Current
- 650uA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
The Hx4002B is a low noise, constant frequency (1.2MHz) switched capacitor voltage doubler. It produces a regulated output voltage from 1.8V to 5V input with up to 100mA of output current. Low external parts count (one flying capacitor and two small bypass capacitors at VIN and VOUT) make the HX4002B ideally suited for small, battery- powered applications. The new charge- pump architecture maintains constant switching frequency to no load and reduces both output and input ripple. The HX4002B have thermal shutdown capability and can survive a continuous short circuit from VOUT to GND. Built- in soft- start circuitry prevents excessive inrush current during start- up. The HX4002B is available in the 6- pin SOT- 23 package.
Applications
- White LED Backlighting
- Li- Ion Battery Backup Supplies
- Local 3V to 5V Conversion
- Smart Card Readers
- PCMCIA Local 5V Supplies
Key features
- Fixed 3.3V ± 4% Output
- VIN Range: 1.8V ~ 5V
- Output Current: up to 250mA (VIN = 3V)
- Low Noise Constant Frequency Operation
- Shutdown Current: < 1μA
- Short- Circuit Protection
- Soft- Start
- No Inductors
- Available in Low Profile 6- Lead SOT- 23 Package
