HXY MOSFETDatasheet (PDF)

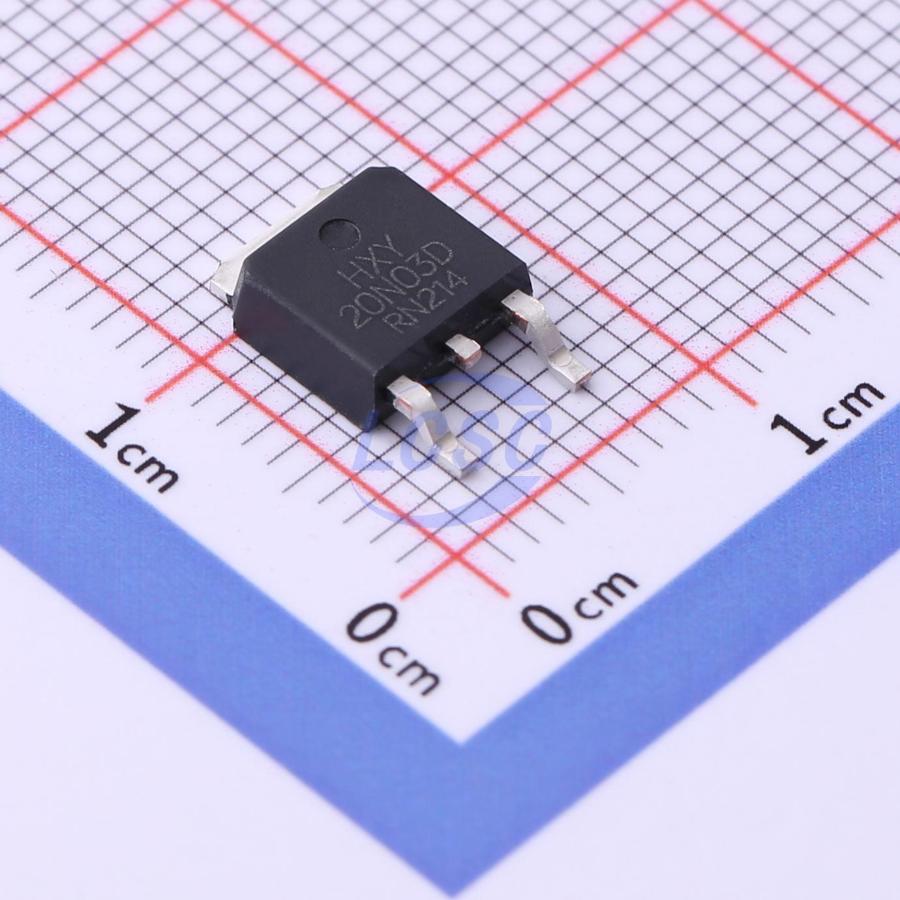

HXY20N03D
N-Channel 30V 20A 20.8W Surface Mount TO-252-2L
TO-252-2LRoHSActive
MOSFET N-CH 30V 20A TO-252-2L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HXY20N03D
- Store part #
- C3033428
- Package / case
- TO-252-2L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
395 in stock
#C3033428
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.78 | ₹63.90 |
| 50+ | ₹10.33 | ₹516.50 |
| 150+ | ₹9.12 | ₹1,368.00 |
| 500+ | ₹8.20 | ₹4,100.00 |
| 2,500+ | ₹6.36 | ₹15,900.00 |
| 5,000+ | ₹5.99 | ₹29,950.00 |
5 × ₹12.78
₹63.90
excl. GST
₹75.40 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
HXY20N03D
₹63.90 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 62pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 416pF
- Pd - Power Dissipation
- 20.8W
- Reverse Transfer Capacitance (Crss)
- 51pF
- RDS(on)
- 18mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 4.9nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.29 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IRLR3103TRPBF-HXY#C20606233HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹33.90 · 15 in stock | View |
 | IRLR3103PBF-HXY#C22366524HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 9 | ₹62.45 · 9 in stock | View |
 | NTD20N03L27-HXY#C22366525HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 15 | ₹19.83 · 15 in stock | View |
 | STN4102-HXY#C22366527HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 60 | ₹14.96 · 60 in stock | View |
 | AOD484-HXY#C22366528HXY MOSFET · TO-252-2L | HXY MOSFET | TO-252-2L | 5 | ₹17.86 · 5 in stock | View |
