HXY MOSFETDatasheet (PDF)

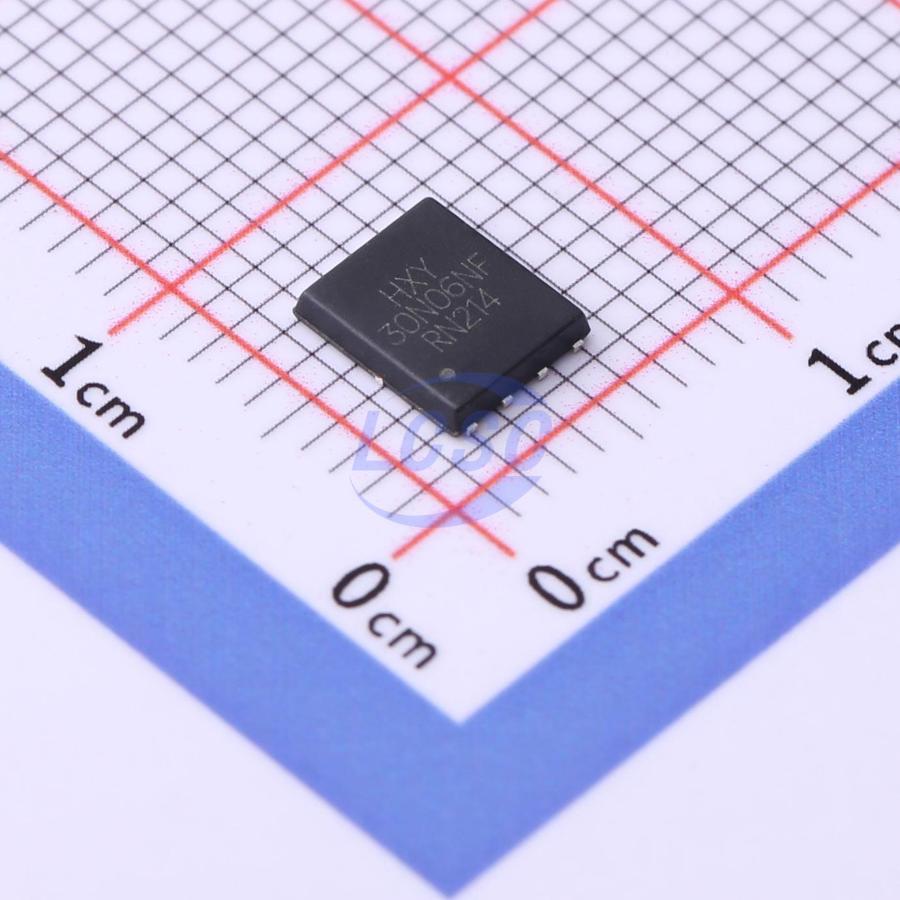

HXY30N06NF
N-Channel 60V 30A 34.7W Surface Mount DFN5x6-8L
DFN5x6-8LRoHSActive
MOSFET N-CH 60V 30A DFN5x6-8L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HXY30N06NF
- Store part #
- C3033450
- Package / case
- DFN5x6-8L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C3033450
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.80 | ₹109.00 |
| 50+ | ₹17.36 | ₹868.00 |
| 150+ | ₹15.47 | ₹2,320.50 |
| 500+ | ₹13.08 | ₹6,540.00 |
| 2,500+ | ₹12.04 | ₹30,100.00 |
| 5,000+ | ₹11.40 | ₹57,000.00 |
5 × ₹21.80
₹109.00
excl. GST
₹128.62 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
HXY30N06NF
₹109.00 for 5 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 86pF
- Current - Continuous Drain(Id)
- 30A
- Ciss-Input Capacitance
- 1.378nF
- Pd - Power Dissipation
- 34.7W
- Reverse Transfer Capacitance (Crss)
- 64pF
- RDS(on)
- 20mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.1 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SI7850DP-T1-GE3-HXY#C22366851HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 57 | ₹125.59 · 57 in stock | View |
 | NVMFS024N06CT1G-HXY#C49420427HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 173 | ₹109.95 · 173 in stock | View |
 | Si7850DP-HXY#C5148670HXY MOSFET · DFN5x6-8L | HXY MOSFET | DFN5x6-8L | 3,050 | ₹27.00 · 3,050 in stock | View |
 | HSI7850DPT1E3#C42401371HXY MOSFET · DFN5X6-8L | HXY MOSFET | DFN5X6-8L | 215 | ₹32.66 · 215 in stock | View |
 | DMT6005LPS-13-HXY#C51949314HXY MOSFET · DFN-8L(5x6) | HXY MOSFET | DFN-8L(5x6) | 158 | ₹60.50 · 158 in stock | View |
