HXY MOSFETDatasheet (PDF)

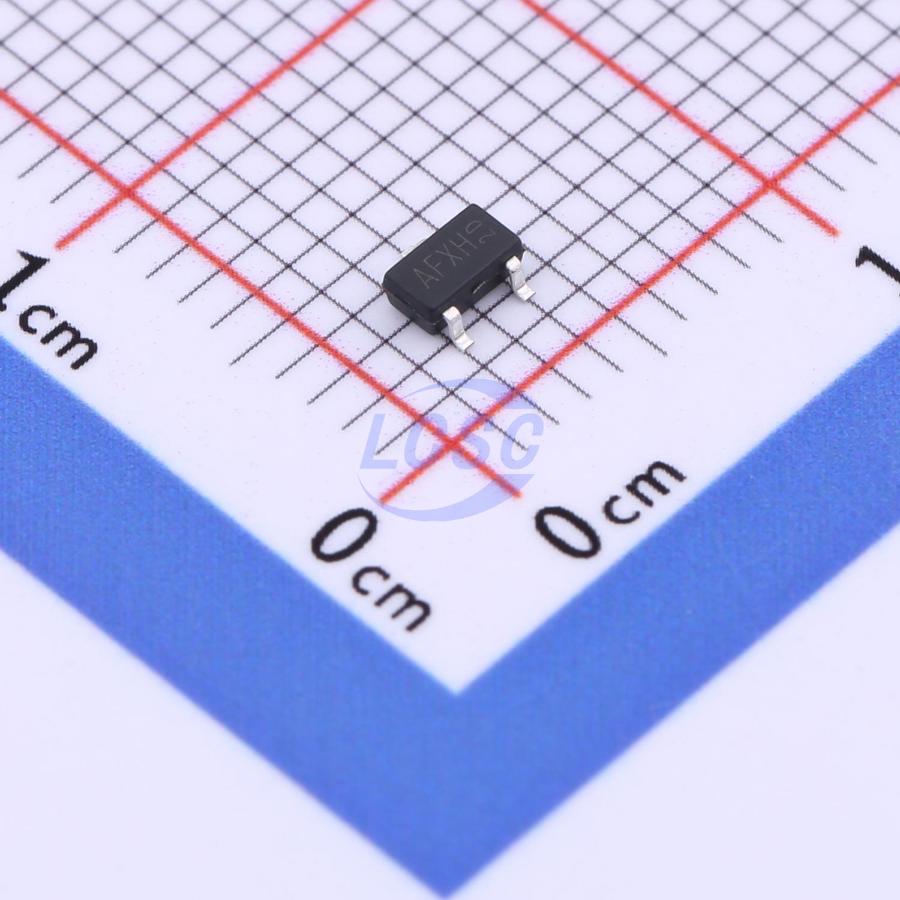

HXY3415MI
P-Channel 20V 4.1A 1.4W Surface Mount SOT-23-3L
SOT-23-3LRoHSActive
MOSFET P-CH 20V 4.1A SOT-23-3L
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HXY3415MI
- Store part #
- C3033392
- Package / case
- SOT-23-3L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
80 in stock
#C3033392
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.14 | ₹61.40 |
| 100+ | ₹4.88 | ₹488.00 |
| 300+ | ₹4.26 | ₹1,278.00 |
| 3,000+ | ₹3.64 | ₹10,920.00 |
| 6,000+ | ₹3.25 | ₹19,500.00 |
| 9,000+ | ₹3.07 | ₹27,630.00 |
10 × ₹6.14
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HXY3415MI
₹61.40 for 10 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 20V
- Output Capacitance(Coss)
- 165pF
- Current - Continuous Drain(Id)
- 4.1A
- Ciss-Input Capacitance
- 950pF
- Pd - Power Dissipation
- 1.4W
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 34mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 12nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 550mV
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.015 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SM3415SRL-HXY#C22366618HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 50 | ₹7.12 · 50 in stock | View |
 | FDN306P-HXY#C22367221HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 2,920 | ₹6.85 · 2,920 in stock | View |
 | AO3419-HXY#C22367222HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 10 | ₹7.70 · 10 in stock | View |
 | HDMG3415U7#C42401390HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 5 | ₹11.44 · 5 in stock | View |
 | AO3415A-HXY#C4748719HXY MOSFET · SOT-23-3L | HXY MOSFET | SOT-23-3L | 6,670 | ₹7.05 · 6,670 in stock | View |
