HXY MOSFETDatasheet (PDF)

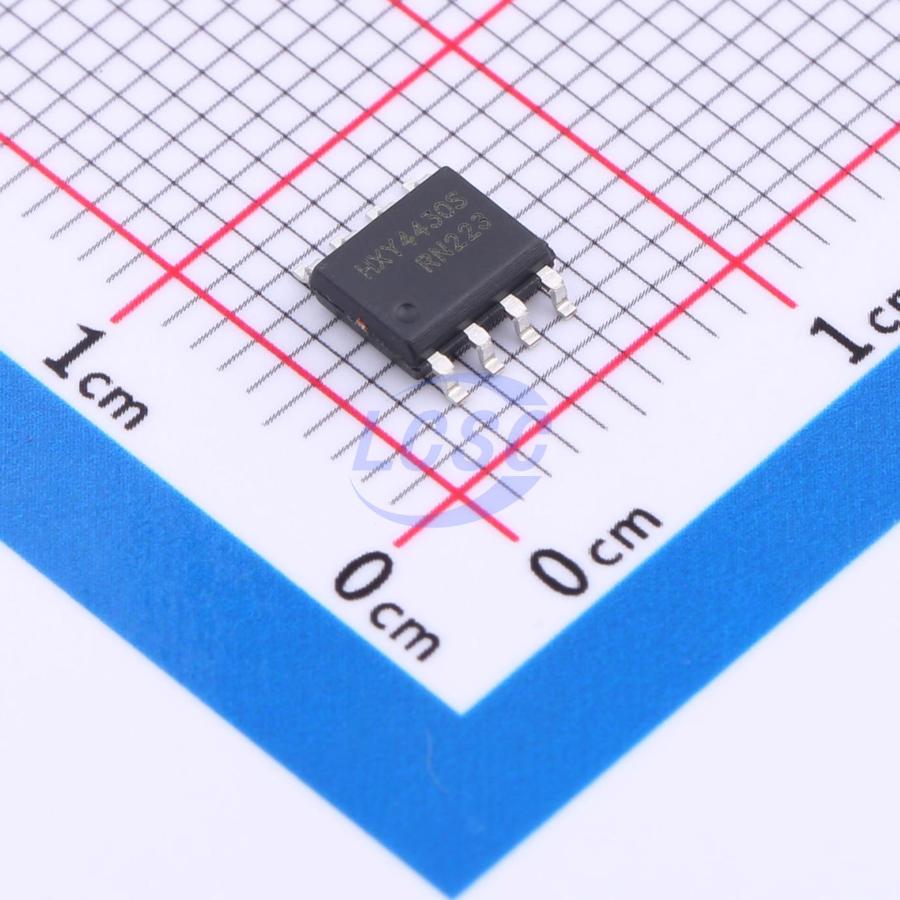

HXY4430S
N-Channel 30V 18A 1.5W Surface Mount SOP-8
SOP-8RoHSActive
MOSFET N-CH 30V 18A SOP-8
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HXY4430S
- Store part #
- C5148651
- Package / case
- SOP-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C5148651
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹15.35 | ₹15.35 |
| 10+ | ₹12.24 | ₹122.40 |
| 30+ | ₹10.68 | ₹320.40 |
| 100+ | ₹9.51 | ₹951.00 |
| 500+ | ₹8.57 | ₹4,285.00 |
| 1,000+ | ₹8.11 | ₹8,110.00 |
1 × ₹15.35
₹15.35
excl. GST
₹18.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
HXY4430S
₹15.35 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 30V
- Output Capacitance(Coss)
- 163pF
- Current - Continuous Drain(Id)
- 18A
- Ciss-Input Capacitance
- 1.317nF
- Pd - Power Dissipation
- 1.5W
- Reverse Transfer Capacitance (Crss)
- 131pF
- RDS(on)
- 5.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 12.6nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 1.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.11 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FDS8817NZ-HXY#C22366458HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 50 | ₹25.67 · 50 in stock | View |
 | SI4386DY-T1-E3-HXY#C22366461HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 45 | ₹41.13 · 45 in stock | View |
 | FDS8896-HXY#C22366464HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 150 | ₹38.01 · 150 in stock | View |
 | AO4410-HXY#C4748732HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 156 | ₹15.92 · 156 in stock | View |
 | AO4576#C49420483HXY MOSFET · SOP-8 | HXY MOSFET | SOP-8 | 180 | ₹54.56 · 180 in stock | View |
