HXY MOSFETDatasheet (PDF)

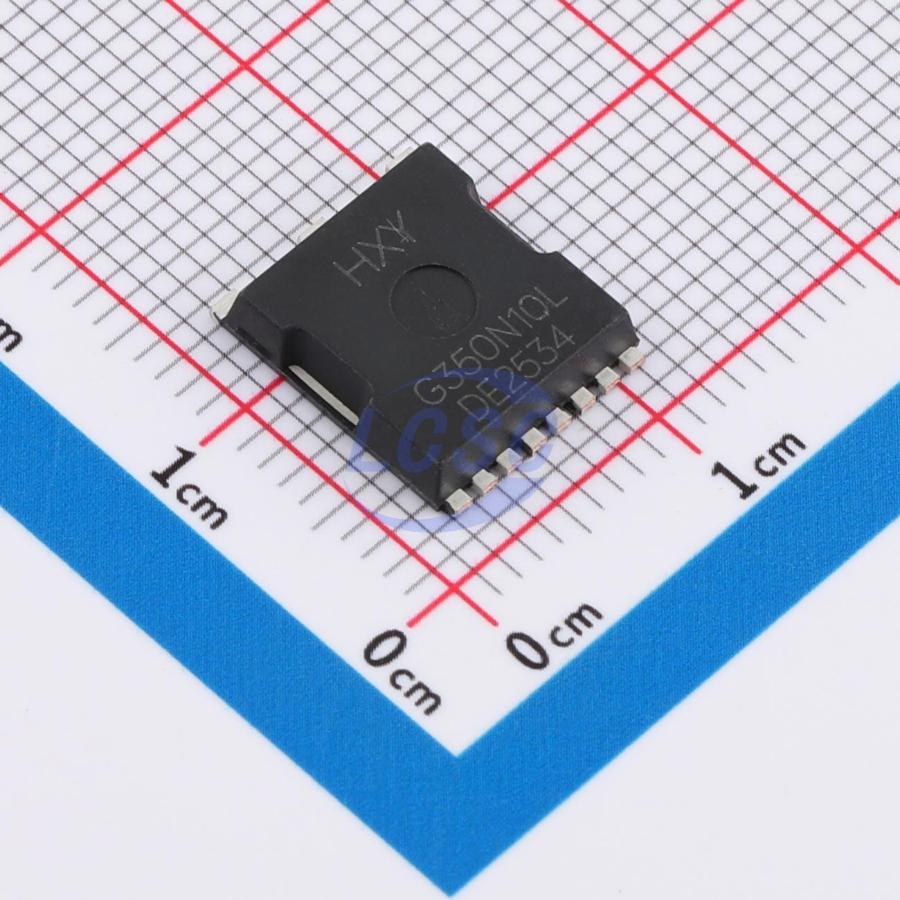

HXYG350N10L
390.6W 100V 312A 1.4mΩ@10V 1 N-channel N-Channel TOLL-8 Single FETs, MOSFETs
TOLL-8RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- HXYG350N10L
- Store part #
- C51949363
- Package / case
- TOLL-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
201 in stock
#C51949363
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.81 | ₹203.81 |
| 10+ | ₹170.20 | ₹1,702.00 |
| 30+ | ₹151.56 | ₹4,546.80 |
| 100+ | ₹130.75 | ₹13,075.00 |
| 500+ | ₹121.42 | ₹60,710.00 |
| 1,000+ | ₹117.09 | ₹1,17,090.00 |
1 × ₹203.81
₹203.81
excl. GST
₹240.50 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
HXYG350N10L
₹203.81 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.12nF
- Ciss-Input Capacitance
- 14.3nF
- Pd - Power Dissipation
- 390.6W
- Configuration
- Standalone
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 312A
- Reverse Transfer Capacitance (Crss)
- 50pF
- RDS(on)
- 1.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 250nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.943 g
Overview
HXYG350N10L employs advanced SGT MOSFET technology to achieve low on-resistance RDS(ON), low gate charge, fast switching, and excellent avalanche characteristics. The device is specifically designed for enhanced durability.
Applications
- Battery Protection
- Power Distribution
Key features
- Drain-source voltage VDS = 100 V, drain current ID = 350 A
- On-resistance RDS(ON) < 2 mΩ at gate-source voltage VGS = 10 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPT015N10N5-HXY#C22366979HXY MOSFET · TOLL | HXY MOSFET | TOLL | 861 | ₹141.01 · 861 in stock | View |
 | AOTL66912#C48996529HXY MOSFET · TOLL | HXY MOSFET | TOLL | 905 | ₹203.54 · 905 in stock | View |
 | IPT015N10NF2SATMA1-HXY#C48996530HXY MOSFET · TOLL-8 | HXY MOSFET | TOLL-8 | 102 | ₹339.76 · 102 in stock | View |
 | IPT022N10NF2SATMA1-HXY#C51949361HXY MOSFET · TOLL-8 | HXY MOSFET | TOLL-8 | 462 | ₹246.10 · 462 in stock | View |
