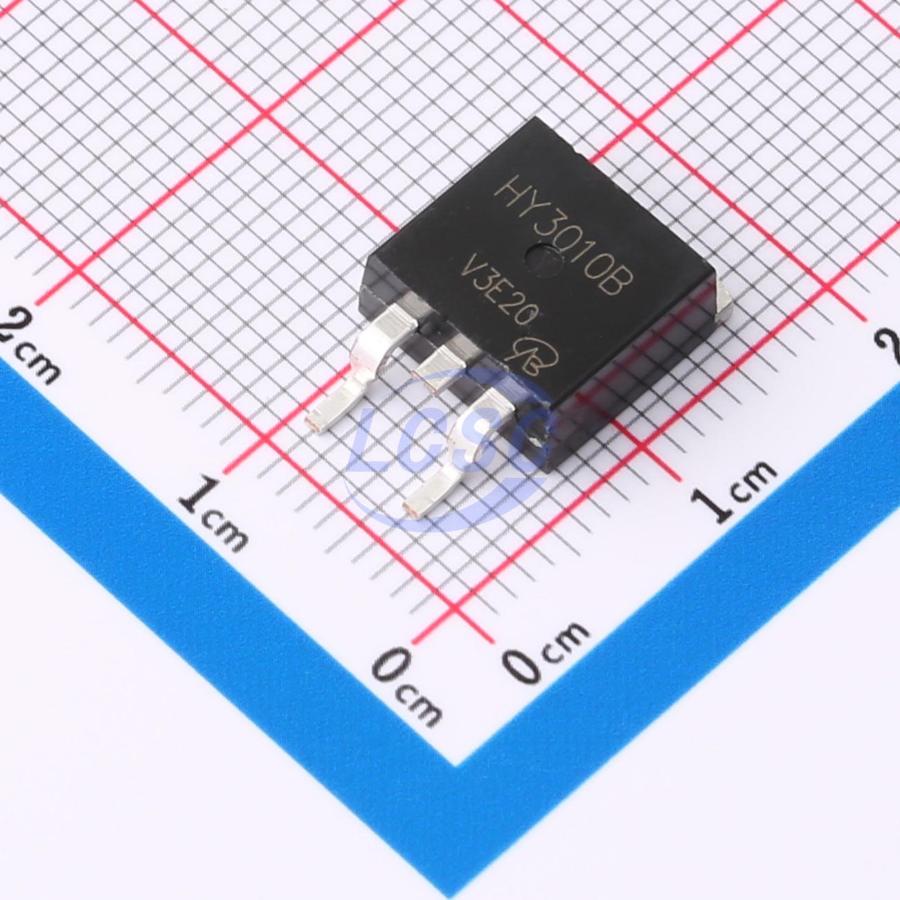

hy3010b-VB
N-Channel 100V 100A Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET N-CH 100V 100A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- hy3010b-VB
- Store part #
- C7568847
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46 in stock
#C7568847
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹181.34 | ₹181.34 |
| 10+ | ₹156.09 | ₹1,560.90 |
| 50+ | ₹114.29 | ₹5,714.50 |
| 100+ | ₹98.40 | ₹9,840.00 |
| 500+ | ₹91.43 | ₹45,715.00 |
| 1,000+ | ₹88.18 | ₹88,180.00 |
1 × ₹181.34
₹181.34
excl. GST
₹213.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
hy3010b-VB
₹181.34 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 665pF
- Current - Continuous Drain(Id)
- 100A
- Ciss-Input Capacitance
- 6.55nF
- Pd - Power Dissipation
- 250W
- Reverse Transfer Capacitance (Crss)
- 265pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.325 g
Overview
Applications
- Notebook computer core
- Voltage Regulator Module / Point-of-Load power supply
Key features
- Trench power MOSFET
- Maximum junction temperature 175°C
- RoHS compliant (Directive 2002/95/EC)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN013-100BS-VB#C7568902VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 34 | ₹182.65 · 34 in stock | View |
 | IRFS4410TRPBF-VB#C7568933VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 16 | ₹147.88 · 16 in stock | View |
 | AUIRF3710ZSTRR-VB#C19188147VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹151.46 · 3 in stock | View |
 | H7N1002LS-VB#C19188257VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 14 | ₹174.28 · 14 in stock | View |
 | AOB296L-VB#C19626676VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 20 | ₹171.12 · 20 in stock | View |
