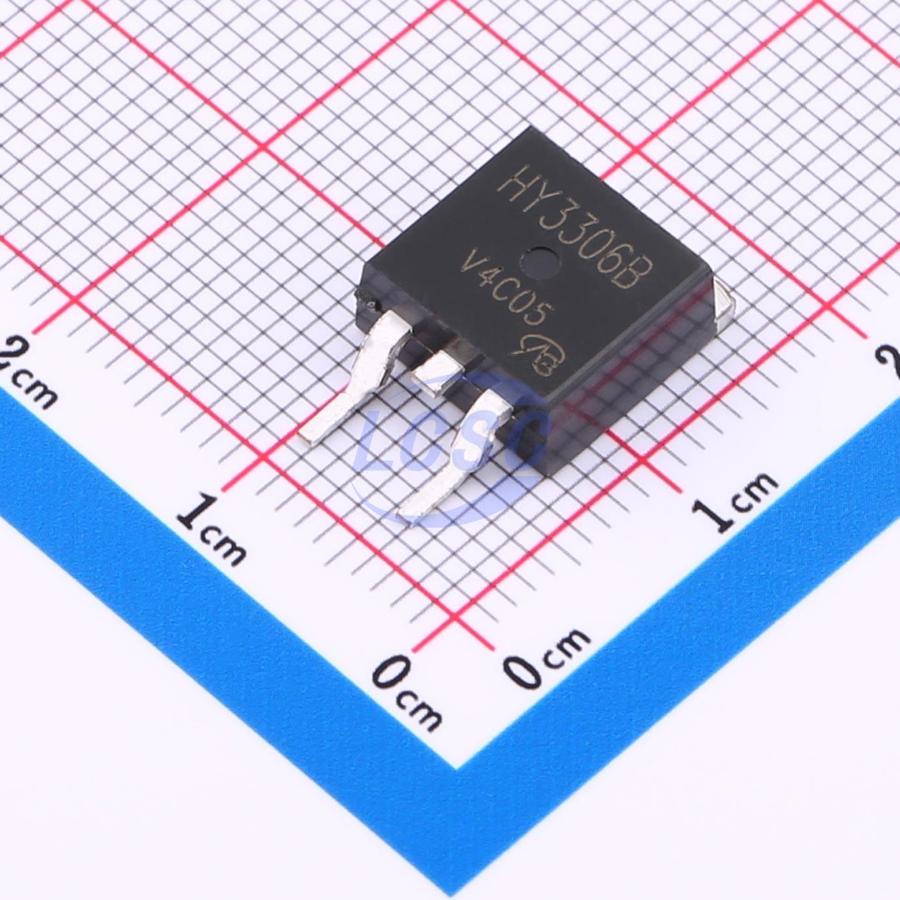

HY3306B-VB
N-Channel 60V 150A 220W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 60V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- HY3306B-VB
- Store part #
- C20754950
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
63 in stock
#C20754950
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹173.29 | ₹173.29 |
| 10+ | ₹145.65 | ₹1,456.50 |
| 30+ | ₹131.93 | ₹3,957.90 |
| 100+ | ₹92.53 | ₹9,253.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 800+ | ₹80.12 | ₹64,096.00 |
1 × ₹173.29
₹173.29
excl. GST
₹204.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
HY3306B-VB
₹173.29 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Output Capacitance(Coss)
- 715pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 7nF
- Pd - Power Dissipation
- 220W
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 96nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.57 g
Overview
Applications
- Server and telecom power supplies - Switch Mode Power Supplies (SMPS) - Power Factor Correction (PFC) - Lighting - High Intensity Discharge (HID) lamps - Fluorescent ballast lighting - Industrial applications
Key features
- Trench power MOSFET
- Low thermal resistance package
- 100% Rg and UIS tested
- RoHS compliant
- Halogen-free
- N-channel MOSFET
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AUIRF1010ZSTRL-VB#C18794973VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 5 | ₹144.30 · 5 in stock | View |
 | 2N0609 TO263-VB#C18794995VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 6 | ₹142.63 · 6 in stock | View |
 | 2N06L11 TO263-VB#C19190248VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 8 | ₹142.63 · 8 in stock | View |
 | SUB75N06-08-VB#C19626693VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 68 | ₹142.63 · 68 in stock | View |
 | 2N0608 TO263-VB#C19626765VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 3 | ₹136.96 · 3 in stock | View |
