InfineonDatasheet (PDF)

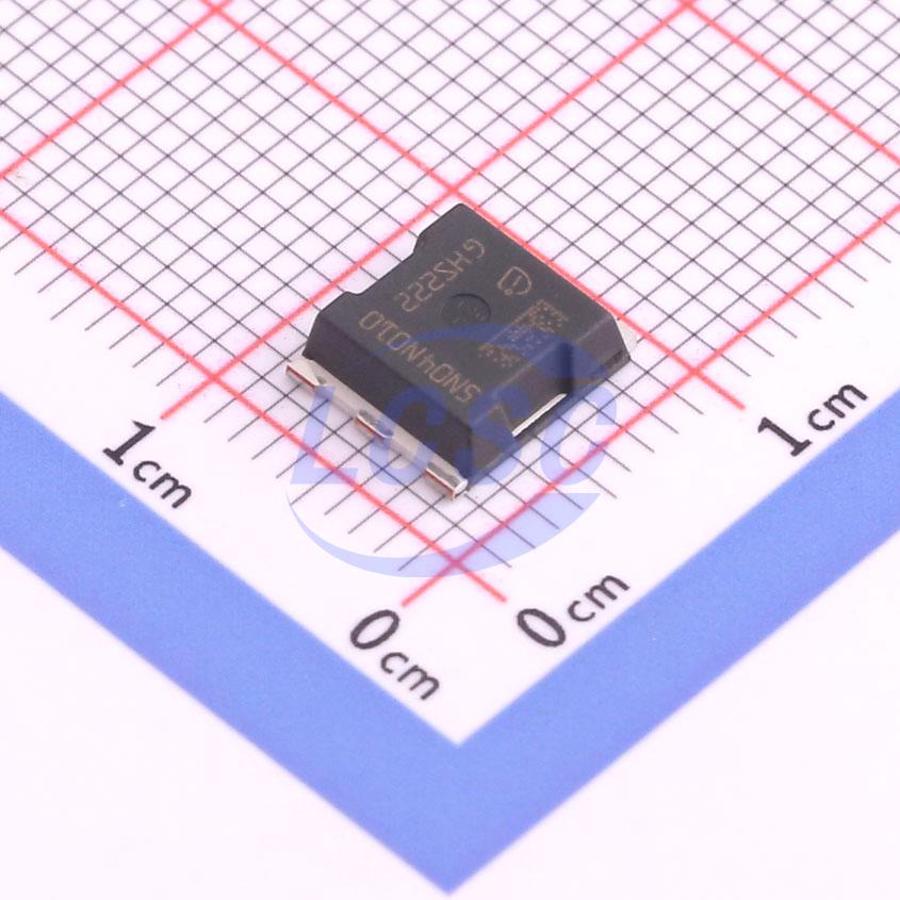

IAUA200N04S5N010
N-Channel 40V 200A 167W HSOF-5
HSOF-5ROHS CompliantActive
MOSFET N-CH 40V 200A HSOF-5
- Manufacturer
- Infineon
- Manufacturer part #
- IAUA200N04S5N010
- Store part #
- C535690
- Package / case
- HSOF-5
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
957 in stock
#C535690
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹223.80 | ₹223.80 |
| 10+ | ₹183.30 | ₹1,833.00 |
| 30+ | ₹160.88 | ₹4,826.40 |
| 100+ | ₹135.85 | ₹13,585.00 |
| 500+ | ₹124.52 | ₹62,260.00 |
| 1,000+ | ₹119.52 | ₹1,19,520.00 |
1 × ₹223.80
₹223.80
excl. GST
₹264.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
IAUA200N04S5N010
₹223.80 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.6nF
- Ciss-Input Capacitance
- 7.65nF
- Pd - Power Dissipation
- 167W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 200A
- Reverse Transfer Capacitance (Crss)
- 120pF
- RDS(on)
- 0.8mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 99nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.46 g
Overview
Key features
- OptiMOS™ - power MOSFET for automotive applications
- N-channel - Enhancement mode - Normal Level
- AEC Q101 qualified
- MSL3 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUA250N04S6N008AUMA1#C6061344Infineon · HSOF-5 | Infineon | HSOF-5 | 102 | ₹346.26 · 102 in stock | View |
 | IAUAN04S7N008AUMA1#C27029419Infineon · HSOF-5 | Infineon | HSOF-5 | 39 | ₹315.52 · 39 in stock | View |
 | IAUAN04S7N006AUMA1#C22668212Infineon · HSOF-5 | Infineon | HSOF-5 | 4 | ₹510.70 · 4 in stock | View |
 | IAUA220N08S5N021AUMA1#C3278536Infineon · HSOF-5 | Infineon | HSOF-5 | 10 | ₹455.46 · 10 in stock | View |
| IST026N10NM5AUMA1#C3278532Infineon · HSOF-5 | Infineon | HSOF-5 | 49 | ₹484.80 · 49 in stock | View | |
