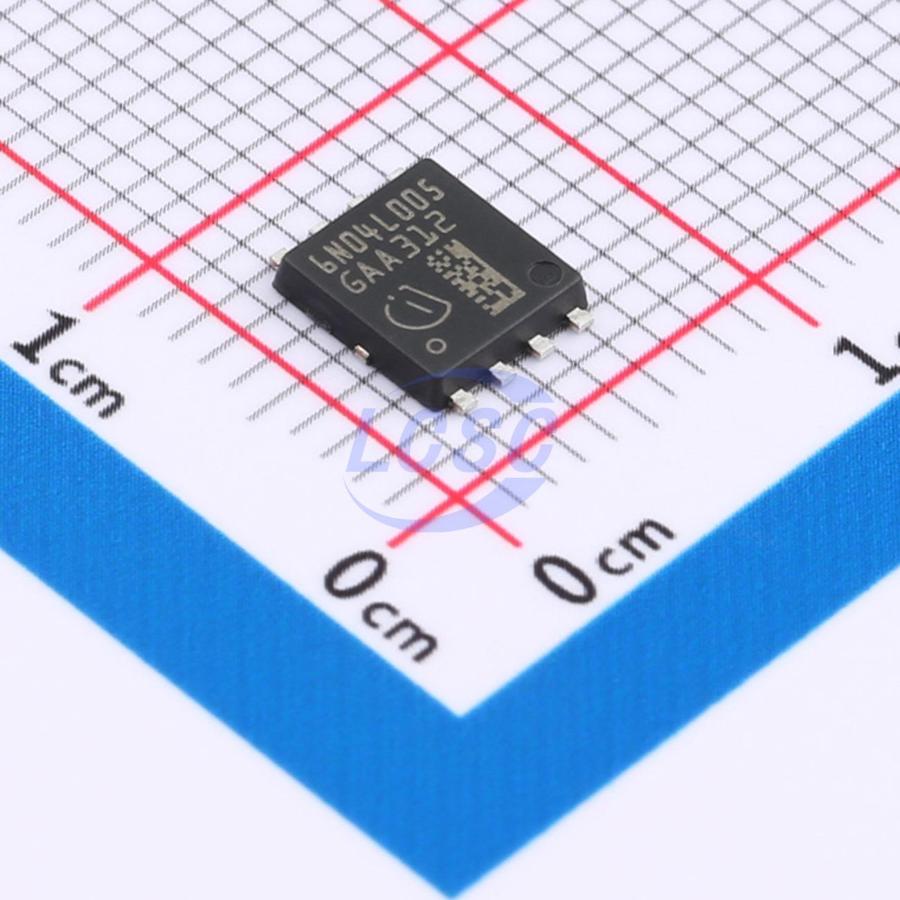

IAUC120N04S6L005ATMA1
N-Channel 40V 120A 187W Surface Mount TDSON-8
TDSON-8ROHS3 CompliantActive
MOSFET N-CH 40V 120A TDSON-8
- Manufacturer
- Infineon
- Manufacturer part #
- IAUC120N04S6L005ATMA1
- Store part #
- C3278713
- Package / case
- TDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
56 in stock
#C3278713
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹360.73 | ₹360.73 |
| 10+ | ₹303.69 | ₹3,036.90 |
| 30+ | ₹268.20 | ₹8,046.00 |
| 100+ | ₹231.63 | ₹23,163.00 |
| 500+ | ₹215.09 | ₹1,07,545.00 |
| 1,000+ | ₹208.12 | ₹2,08,120.00 |
1 × ₹360.73
₹360.73
excl. GST
₹425.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IAUC120N04S6L005ATMA1
₹360.73 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 2.982nF
- Current - Continuous Drain(Id)
- 120A
- Ciss-Input Capacitance
- 11.203nF
- Pd - Power Dissipation
- 187W
- Reverse Transfer Capacitance (Crss)
- 175pF
- RDS(on)
- 0.55mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 177nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.61 g
Overview
Key features
- OptiMOS - power MOSFET for automotive applications
- N-channel - Enhancement mode - Logic Level
- AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
