InfineonDatasheet (PDF)

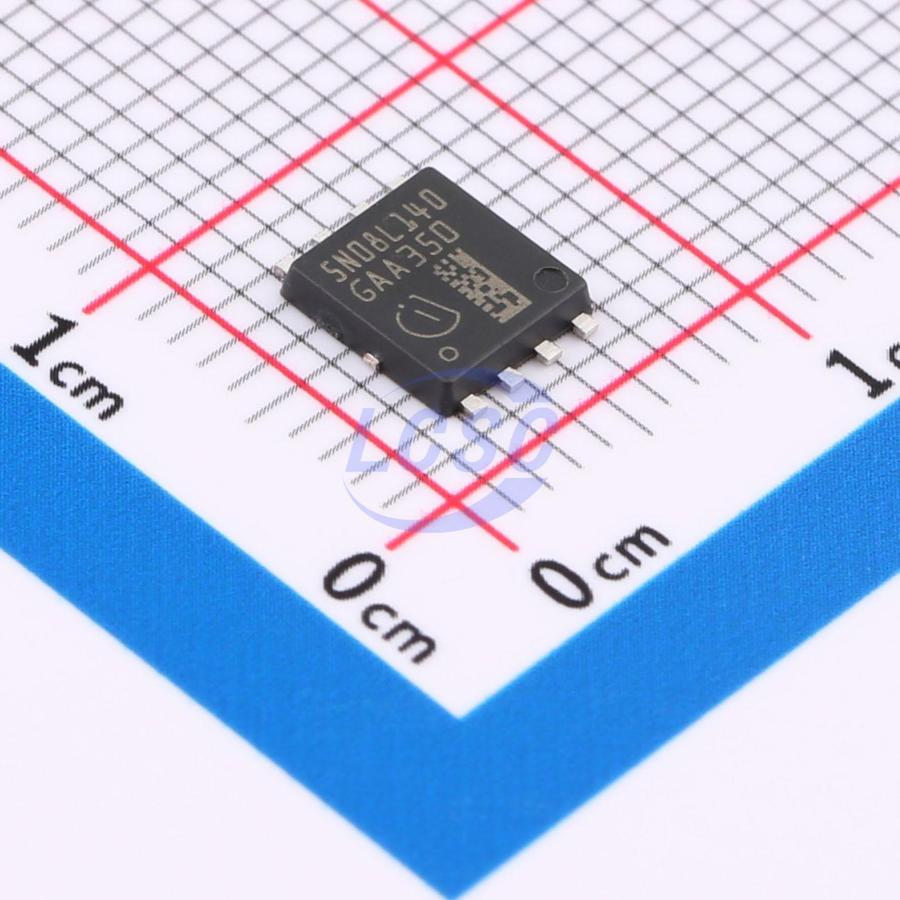

IAUC40N08S5L140ATMA1
80V 40A 56W 14mΩ@10V 1 N-channel N-Channel TDSON-8 Single FETs, MOSFETs RoHS
TDSON-8ROHS3 CompliantActive
N-channel, Current: 40A, Voltage: 80V
- Manufacturer
- Infineon
- Manufacturer part #
- IAUC40N08S5L140ATMA1
- Store part #
- C3288871
- Package / case
- TDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C3288871
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.76 | ₹162.76 |
| 10+ | ₹135.17 | ₹1,351.70 |
| 30+ | ₹119.96 | ₹3,598.80 |
| 100+ | ₹103.01 | ₹10,301.00 |
| 500+ | ₹95.40 | ₹47,700.00 |
| 1,000+ | ₹91.92 | ₹91,920.00 |
1 × ₹162.76
₹162.76
excl. GST
₹192.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IAUC40N08S5L140ATMA1
₹162.76 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 190pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.078nF
- Pd - Power Dissipation
- 56W
- Reverse Transfer Capacitance (Crss)
- 17pF
- RDS(on)
- 14mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 18.6nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Key features
- OptiMOS power MOSFET for automotive applications
- N-channel - enhancement mode - logic level
- MSL1 up to 260°C peak reflow temperature
- 175°C operating temperature
- Green product (RoHS compliant)
- 100% avalanche tested
