InfineonDatasheet (PDF)

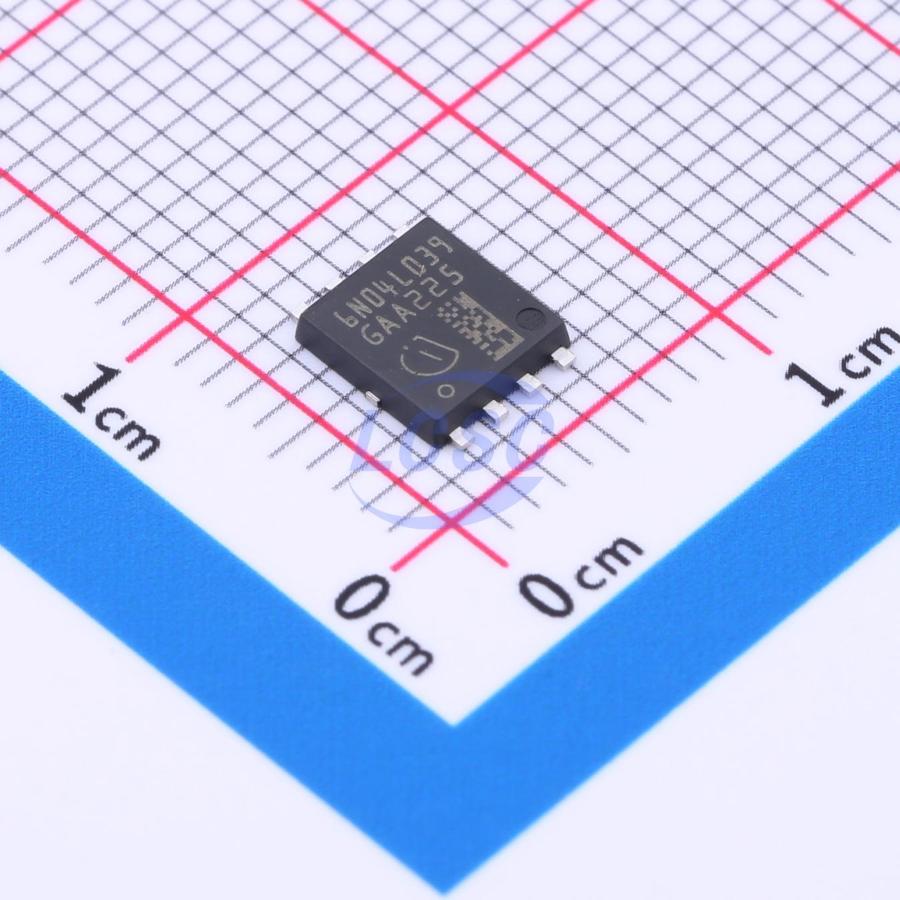

IAUC60N04S6L039ATMA1
N-Channel 40V 60A 42W Surface Mount TDSON-8
TDSON-8ROHS3 CompliantActive
MOSFET N-CH 40V 60A TDSON-8
- Manufacturer
- Infineon
- Manufacturer part #
- IAUC60N04S6L039ATMA1
- Store part #
- C3288835
- Package / case
- TDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14 in stock
#C3288835
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹105.76 | ₹105.76 |
| 10+ | ₹85.08 | ₹850.80 |
| 30+ | ₹74.64 | ₹2,239.20 |
| 100+ | ₹64.42 | ₹6,442.00 |
| 500+ | ₹58.32 | ₹29,160.00 |
| 1,000+ | ₹55.06 | ₹55,060.00 |
1 × ₹105.76
₹105.76
excl. GST
₹124.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IAUC60N04S6L039ATMA1
₹105.76 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 337pF
- Ciss-Input Capacitance
- 1.179nF
- Pd - Power Dissipation
- 42W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 30pF
- RDS(on)
- 5.9mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 20nC@10V
- Vgs
- ±16V
- Gate Threshold Voltage (Vgs(th))
- 2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Key features
- OptiMOS - power MOSFET for automotive applications
- N-channel - Enhancement mode - Logic Level
- AEC Q101 qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
