InfineonDatasheet (PDF)

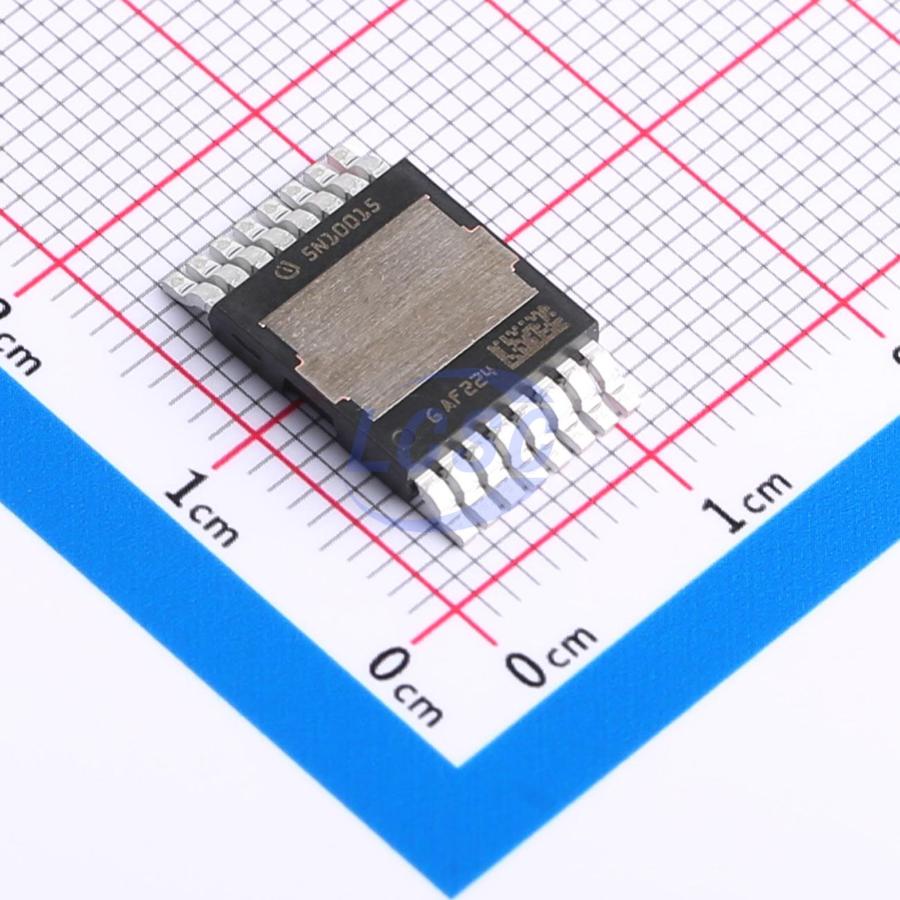

IAUS300N10S5N015TATMA1
100V 300A 375W 1.5mΩ@10V 1 N-channel N-Channel HDSOP-16 Single FETs, MOSFETs RoHS
HDSOP-16ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IAUS300N10S5N015TATMA1
- Store part #
- C3288751
- Package / case
- HDSOP-16
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4 in stock
#C3288751
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹829.92 | ₹829.92 |
| 10+ | ₹690.34 | ₹6,903.40 |
| 30+ | ₹622.93 | ₹18,687.90 |
| 100+ | ₹566.40 | ₹56,640.00 |
1 × ₹829.92
₹829.92
excl. GST
₹979.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
IAUS300N10S5N015TATMA1
₹829.92 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 2.496nF
- Current - Continuous Drain(Id)
- 300A
- Ciss-Input Capacitance
- 16.011nF
- Pd - Power Dissipation
- 375W
- Reverse Transfer Capacitance (Crss)
- 126pF
- RDS(on)
- 1.5mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 216nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Applications
- 12V automotive systems
- Solenoid and motor control
- Automotive transmission control
- DC-DC converters
Key features
- OptiMOS power MOSFET for automotive applications
- N-channel - Enhancement mode - Normal level
- Extended qualification beyond AEC-Q101
- Enhanced electrical testing
- Robust design
- MSL1 up to 260°C peak reflow temperature
- 175°C operating temperature
- Green product (RoHS compliant)
- 100% avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPTC015N10NM5ATMA1#C3278524Infineon · HDSOP-16 | Infineon | HDSOP-16 | 1 | ₹795.76 · 1 in stock | View |
 | IPTC017N12NM6ATMA1#C17701797Infineon · HDSOP-16 | Infineon | HDSOP-16 | 4 | ₹1,224.57 · 4 in stock | View |
 | IPTC020N13NM6ATMA1#C22408422Infineon · HDSOP-16 | Infineon | HDSOP-16 | 10 | ₹1,460.08 · 10 in stock | View |
 | IPTC019N10NM5ATMA1#C3278522Infineon · HDSOP-16 | Infineon | HDSOP-16 | 22 | ₹583.88 · 22 in stock | View |
 | IPTC014N10NM5ATMA1#C5443905Infineon · HDSOP-16 | Infineon | HDSOP-16 | On request | ₹1,414.30 · 0 in stock | View |
