InfineonDatasheet (PDF)

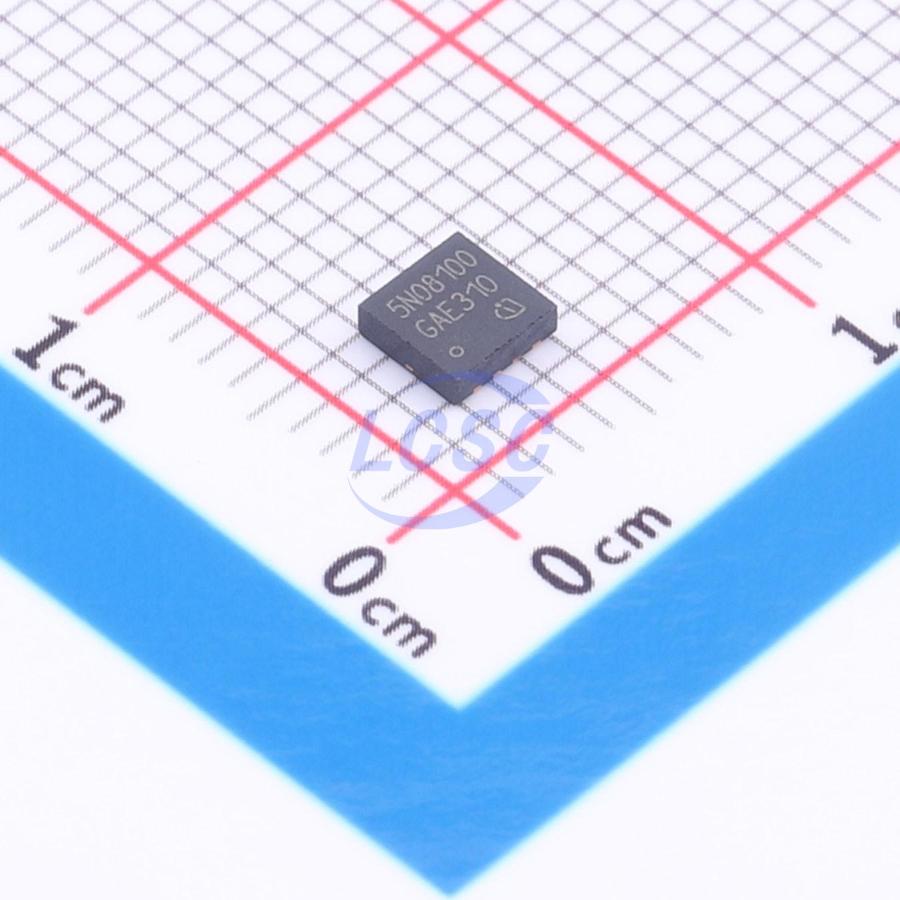

IAUZ40N08S5N100ATMA1
80V 40A 68W 10mΩ@10V 1 N-channel N-Channel TDSON-8 Single FETs, MOSFETs RoHS
TDSON-8ROHS3 CompliantActive
N-channel, Current:40A, Breakdown Voltage:80V
- Manufacturer
- Infineon
- Manufacturer part #
- IAUZ40N08S5N100ATMA1
- Store part #
- C3288837
- Package / case
- TDSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
100 in stock
#C3288837
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹163.56 | ₹163.56 |
| 10+ | ₹160.96 | ₹1,609.60 |
| 30+ | ₹159.21 | ₹4,776.30 |
| 100+ | ₹157.25 | ₹15,725.00 |
1 × ₹163.56
₹163.56
excl. GST
₹193.00 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IAUZ40N08S5N100ATMA1
₹163.56 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 80V
- Output Capacitance(Coss)
- 300pF
- Current - Continuous Drain(Id)
- 40A
- Ciss-Input Capacitance
- 1.591nF
- Pd - Power Dissipation
- 68W
- Reverse Transfer Capacitance (Crss)
- 20pF
- RDS(on)
- 10mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3.8V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.567 g
Overview
Key features
- OptiMOS Power MOSFET for automotive applications
- N-channel - Enhancement mode - Standard level
- MSL1 rated for peak reflow temperature up to 260°C
- 175°C operating temperature
- Green product (RoHS compliant)
- 100% avalanche tested
- Infineon automotive quality
- Extended qualification beyond AEC Q101
- Enhanced testing
- Advanced delamination adhesion resistance
- Supplemental testing for board-level reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IAUC50N08S5N102ATMA1#C3288872Infineon · TDSON-8 | Infineon | TDSON-8 | 56 | ₹134.07 · 56 in stock | View |
 | BSZ123N08NS3G#C152364Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 2,071 | ₹245.44 · 2,071 in stock | View |
 | BSZ075N08NS5#C534679Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 12,761 | ₹132.58 · 12,761 in stock | View |
| BSZ097N10NS5#C534697Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 2,207 | ₹165.80 · 2,207 in stock | View | |
 | IAUZ40N10S5L120ATMA1#C3289321Infineon · TSDSON-8FL | Infineon | TSDSON-8FL | 163 | ₹135.85 · 163 in stock | View |
