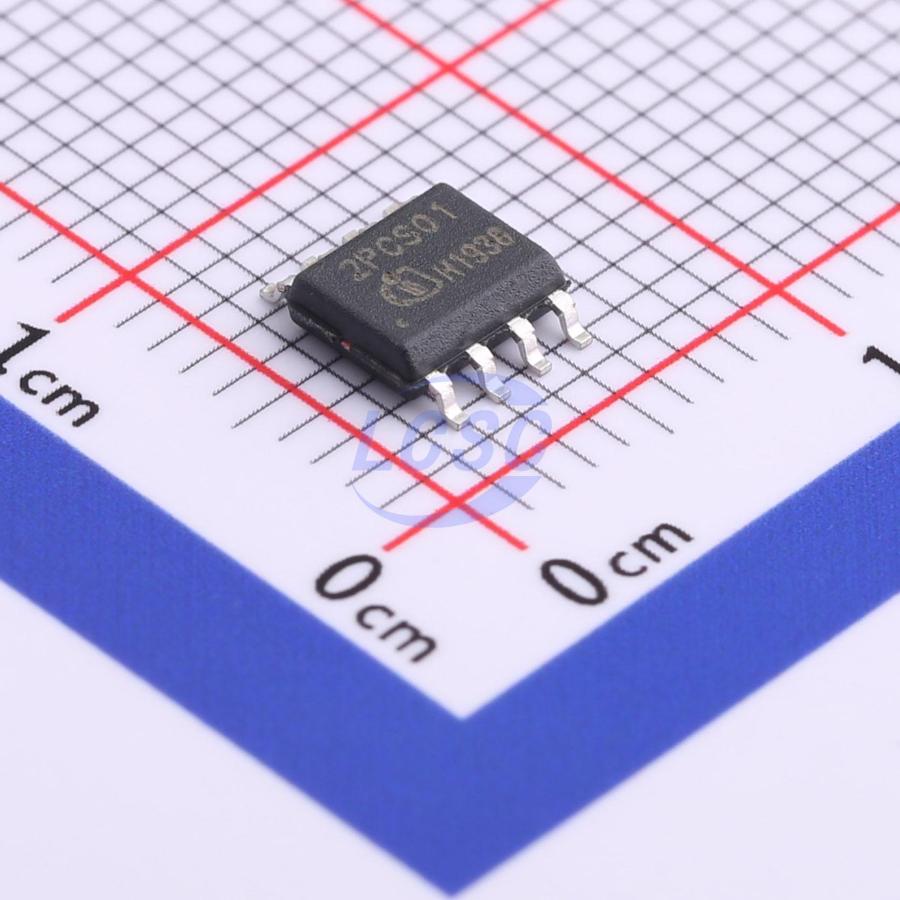

ICE2PCS01G

Ease of Use with Few External Components Supports Wide Range Average Current Control External Current and Voltage Loop Compensation for Greater User Flexibility Programmable Operating/Switching Frequency (50kHz - 250kHz) Max Duty Cycle of 95% (at 25°C) at 125kHz Trimmed Internal Reference Voltage (3V ± 2% at 25°C) VCC Under-Voltage Lockout Cycle by Cycle Peak Current Limiting Output Over-Voltage Protection Open Loop Detection Enhanced Dynamic Response Short Startup(SoftStart) duration Fulfills Class D Requirements of IEC 1000-3-2 Soft Overcurrent Protection The ICE2PCS01/G is a 8-pin wide input range controller IC for active power factor correction converters. It is designed for converters in boost topology, and requires few external components. Its power supply is recommended to be provided by an external auxiliary supply which will switch on and off the IC. The IC operates in the CCM with average current control, and in DCM only under light load condition. The switching frequency is programmable by the resistor at pin 4. Both compensations for the current and voltage loop are external to allow full user control. There are various protection features incorporated to ensure safe system operation conditions. The internal reference is trimmed (3V ± 2%) to ensure precise protection and control level. The device has a fast startup time with controlled peak start up current.

Key features

• Leadfree DIP and DSO Package
• Wide Input Range
• Optimized for applications which require fast Startup
• Output Power Controllable by External Sense Resistor
• Programmable Operating Frequency
• Output Over-Voltage Protection
• Fast Output Dynamic Response during Load Jumps
