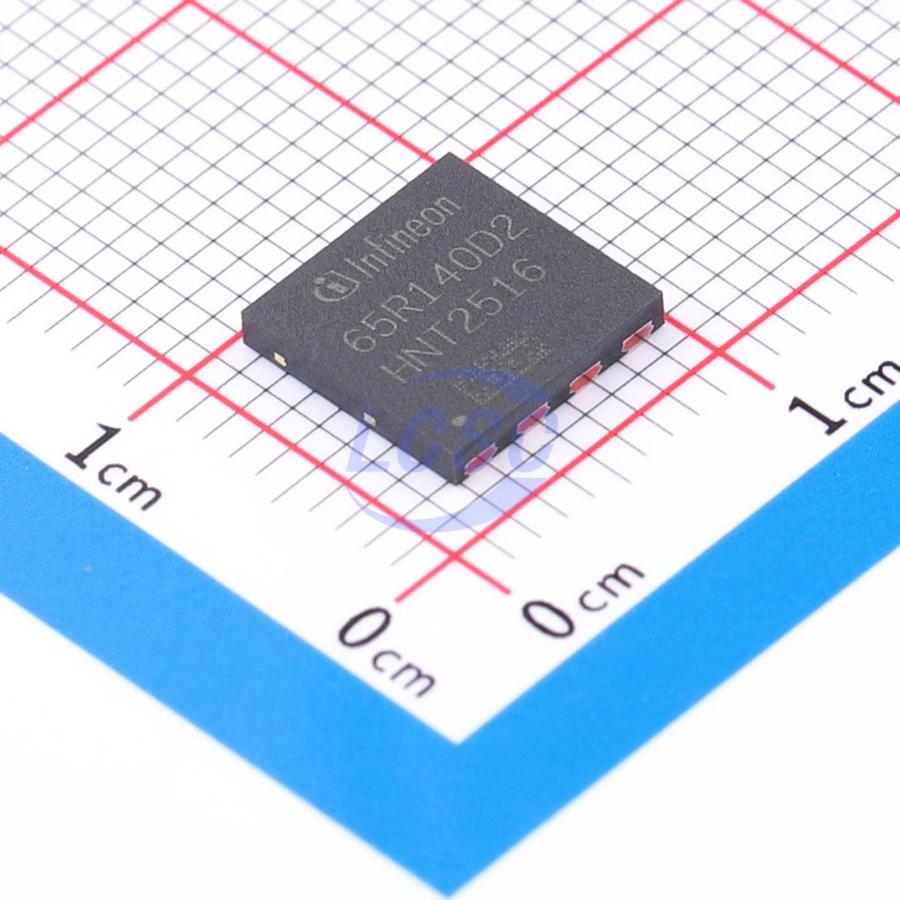

InfineonDatasheet (PDF)
IGLD65R140D2AUMA1
650V 12A 42W 140mΩ N-Channel LSON-8 Single FETs, MOSFETs
LSON-8RoHSActive
- Manufacturer
- Infineon
- Manufacturer part #
- IGLD65R140D2AUMA1
- Store part #
- C42669667
- Package / case
- LSON-8
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
40 in stock
#C42669667
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹449.09 | ₹449.09 |
| 10+ | ₹382.16 | ₹3,821.60 |
| 30+ | ₹342.27 | ₹10,268.10 |
| 100+ | ₹301.94 | ₹30,194.00 |
| 500+ | ₹283.41 | ₹1,41,705.00 |
| 1,000+ | ₹275.13 | ₹2,75,130.00 |
1 × ₹449.09
₹449.09
excl. GST
₹529.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
IGLD65R140D2AUMA1
₹449.09 for 1 + GST
Specifications
- Drain to Source Voltage
- 650V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 12A
- Output Capacitance(Coss)
- 22pF
- Ciss-Input Capacitance
- 155pF
- Technology
- E-mode
- Pd - Power Dissipation
- 42W
- Reverse Transfer Capacitance (Crss)
- 0.31pF
- RDS(on)
- 140mΩ
- Gate Charge(Qg)
- 1.8nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 1.2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.97 g
Overview
Infineon's CoolGaN™ is a high-efficiency 650 V GaN transistor designed for power conversion. It enables higher power density, helps reduce system BOM costs, and facilitates miniaturized form factors. The product is manufactured using 200 mm wafer technology with fully automated production lines, featuring tight manufacturing tolerances and the highest product quality. This makes it suitable for a wide range of applications, from consumer electronics to industrial use.
Applications
- Industrial switching power supplies
- Telecom switching power supplies
- Data center switching power supplies
- Chargers
- Adapters
Key features
- Enhancement-mode transistor
- Ultra-fast switching speed
- No reverse recovery charge
- Reverse conduction capability
- Low gate charge and output charge
- Excellent commutation robustness
- 2 kV HBM ESD compliant
