IKSEMICONDatasheet (PDF)

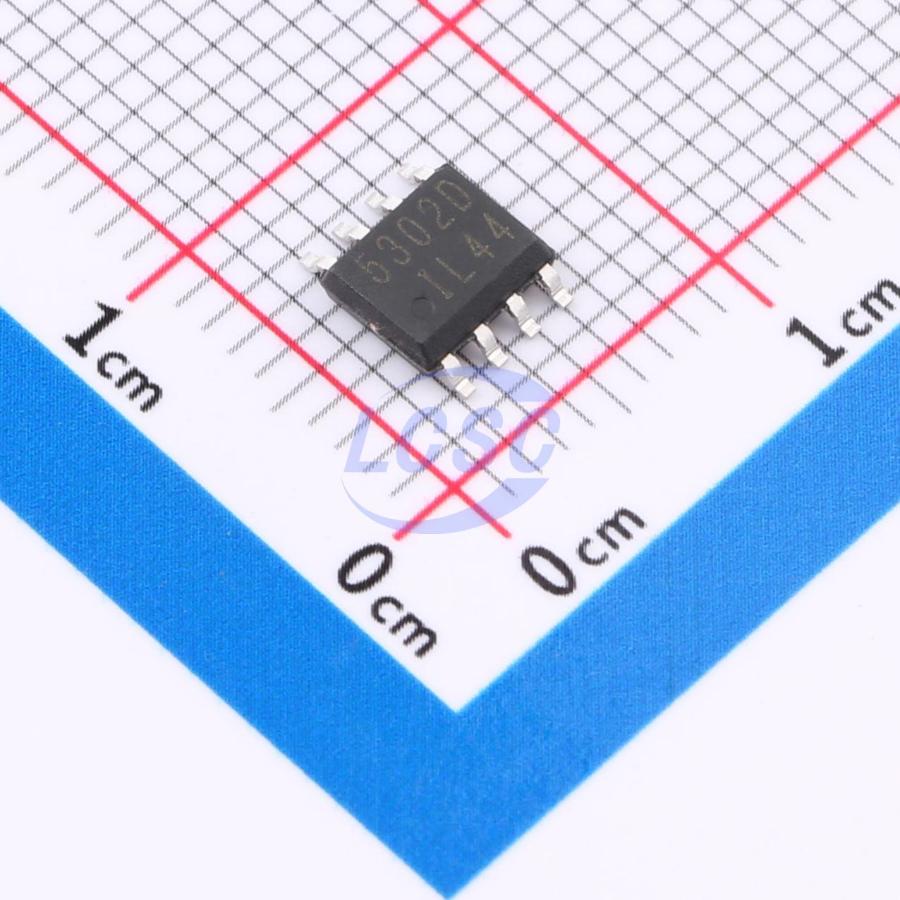

IK5302DT
1MHz Step-down type Adjustable 800mV~13.5V 3A SOP-8 Voltage Regulators - DC DC Switching Regulators
SOP-8RoHSActive
3A Synchronous Buck Regulator
- Manufacturer
- IKSEMICON
- Manufacturer part #
- IK5302DT
- Store part #
- C5157589
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,319 in stock
#C5157589
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.40 | ₹59.40 |
| 10+ | ₹53.42 | ₹534.20 |
| 30+ | ₹50.33 | ₹1,509.90 |
| 100+ | ₹47.44 | ₹4,744.00 |
| 500+ | ₹43.73 | ₹21,865.00 |
| 1,000+ | ₹42.69 | ₹42,690.00 |
1 × ₹59.40
₹59.40
excl. GST
₹70.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IK5302DT
₹59.40 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Frequency - Switching
- 1MHz
- Function
- Step-down type
- Number of Outputs
- 1
- Features
- Cycle-by-cycle current limiting;Overcurrent Protection;External compensation
- Output Type
- Adjustable
- Topology
- Buck
- Operating Voltage
- 4.5V~18V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 800mV~13.5V
- Output Current
- 3A
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.26 g
Overview
The IK5302 is a 18V 3A synchronous step-down (buck) converter with two integrated High side and Low side N-LDMOS transistors. The IK5302 implements current control method which provides high stability during operation and fast response during abrupt load change. It operates from a 4.5V to 18V input voltage range and supplies up to 3A of load current. The IK5302 operates on fixed 1Mhz frequency.
Applications
- Point of load DC/DC conversion
- PCIe graphics cards
- Set top boxes
- DVD drives and HDD
- LCD panels
- Cable modems
- Telecom/networking
Key features
- 4.5V to 18V operating input voltage range
- Synchronous rectification: 120mΩ internal high-side switch and 80mΩ Internal low-side switch
- High efficiency up to 93%
- Output voltage adjustable to 0.8V
- 3A continuous output current
- Fixed 1MHz operation
- Cycle-by-cycle current limit
- Short-circuit protection and Thermal shutdown
