InfineonDatasheet (PDF)

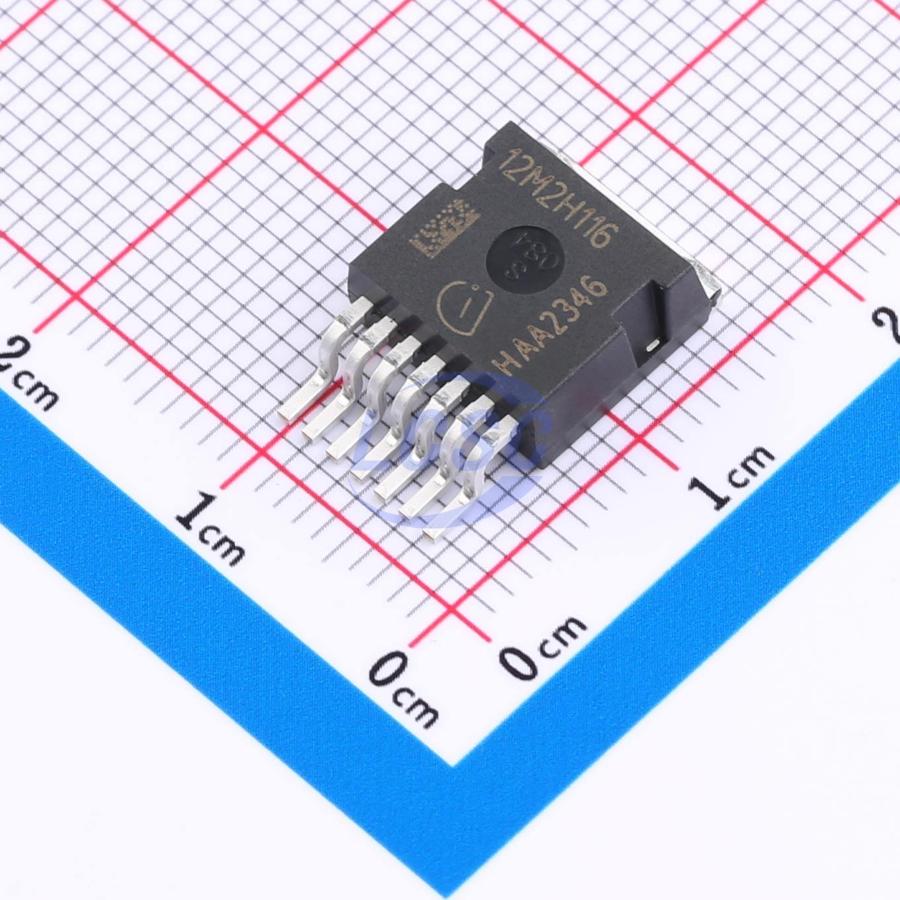

IMBG120R116M2HXTMA1
1.2kV 21.2A 123W TO-263-7
TO-263-7ROHS3 CompliantActive
SICFET 1.2kV 21.2A TO-263-7
- Manufacturer
- Infineon
- Manufacturer part #
- IMBG120R116M2HXTMA1
- Store part #
- C28489444
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C28489444
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹782.42 | ₹782.42 |
| 10+ | ₹665.76 | ₹6,657.60 |
| 30+ | ₹594.87 | ₹17,846.10 |
| 100+ | ₹535.37 | ₹53,537.00 |
1 × ₹782.42
₹782.42
excl. GST
₹923.26 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IMBG120R116M2HXTMA1
₹782.42 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Current - Continuous Drain(Id)
- 21.2A
- Output Capacitance(Coss)
- 19pF
- Ciss-Input Capacitance
- 500pF
- Pd - Power Dissipation
- 123W
- Reverse Transfer Capacitance (Crss)
- 1.6pF
- RDS(on)
- 115.7mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 14.4nC
- Type
- N-Channel
- Gate Threshold Voltage (Vgs(th))
- 5.1V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.98 g
Overview
Applications
- EV Charging
- Online UPS/Industrial UPS
- String inverter
- General purpose drives (GPD)
Key features
- VDSS = 1200 V at Tvj = 25°C
- IDDC = 15 A at Tc = 100°C
- RDS(on) = 115.7 mΩ at VGS = 18 V, Tvj = 25°C
- Very low switching losses
- Overload operation up to Tvj = 200°C
- Short circuit withstand time 2 µs
- Benchmark gate threshold voltage, VGS(th) = 4.2 V
- Robust against parasitic turn on, 0 V turn-off gate voltage can be applied
- Robust body diode for hard commutation
- .XT interconnection technology for best-in-class thermal performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AIMBG120R080M1XTMA1#C7072054Infineon · TO-263-7 | Infineon | TO-263-7 | 3 | ₹1,108.79 · 3 in stock | View |
 | SG1M160120J#C22363612Sichainsemi · TO-263-7L | Sichainsemi | TO-263-7L | 49 | ₹341.72 · 49 in stock | View |
 | IV2Q12080D7Z#C22368197InventChip · TO-263-7 | InventChip | TO-263-7 | 5 | ₹1,383.67 · 5 in stock | View |
 | AIMBG120R030M1XTMA1#C22408468Infineon · TO-263-7 | Infineon | TO-263-7 | 2 | ₹2,515.06 · 2 in stock | View |
| IMBG120R017M2HXTMA1#C24177597Infineon · TO-263-7 | Infineon | TO-263-7 | 1 | ₹2,956.27 · 1 in stock | View | |
