InfineonDatasheet (PDF)

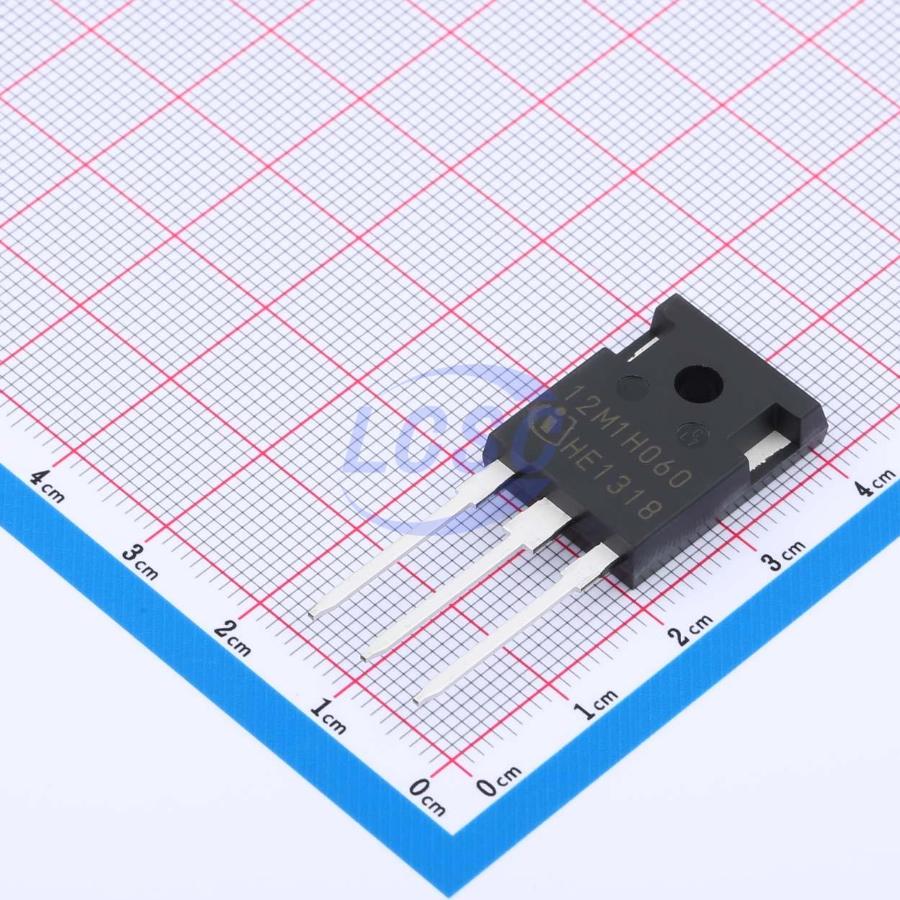

IMW120R060M1H
N-Channel 1.2kV 36A 150W Through Hole TO-247-3
TO-247-3ROHS3 CompliantActive
1200V SiC Trench MOSFET
- Manufacturer
- Infineon
- Manufacturer part #
- IMW120R060M1H
- Store part #
- C536281
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
168 in stock
#C536281
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹957.64 | ₹957.64 |
| 10+ | ₹816.13 | ₹8,161.30 |
| 30+ | ₹729.93 | ₹21,897.90 |
| 90+ | ₹657.44 | ₹59,169.60 |
1 × ₹957.64
₹957.64
excl. GST
₹1,130.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IMW120R060M1H
₹957.64 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 1.2kV
- Output Capacitance(Coss)
- 58pF
- Current - Continuous Drain(Id)
- 36A
- Ciss-Input Capacitance
- 1.06nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 6.5pF
- RDS(on)
- 60mΩ
- Number
- 1 N-channel
- Gate Charge(Qg)
- 31nC
- Gate Threshold Voltage (Vgs(th))
- 5.7V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.55 g
Overview
Applications
- Energy generation
- Solar string inverter and solar optimizer
- Industrial power supplies
- Industrial UPS
- Industrial SMPS
- Infrastructure – Charge
- Charger
Key features
- Very low switching losses
- Threshold-free on state characteristic
- Wide gate-source voltage range
- Benchmark gate threshold voltage, VGS(th)=4.5V
- 0V turn-off gate voltage for easy and simple gate drive
- Fully controllable dV/dt
- Robust body diode for hard commutation
- Temperature independent turn-off switching losses
