InfineonDatasheet (PDF)

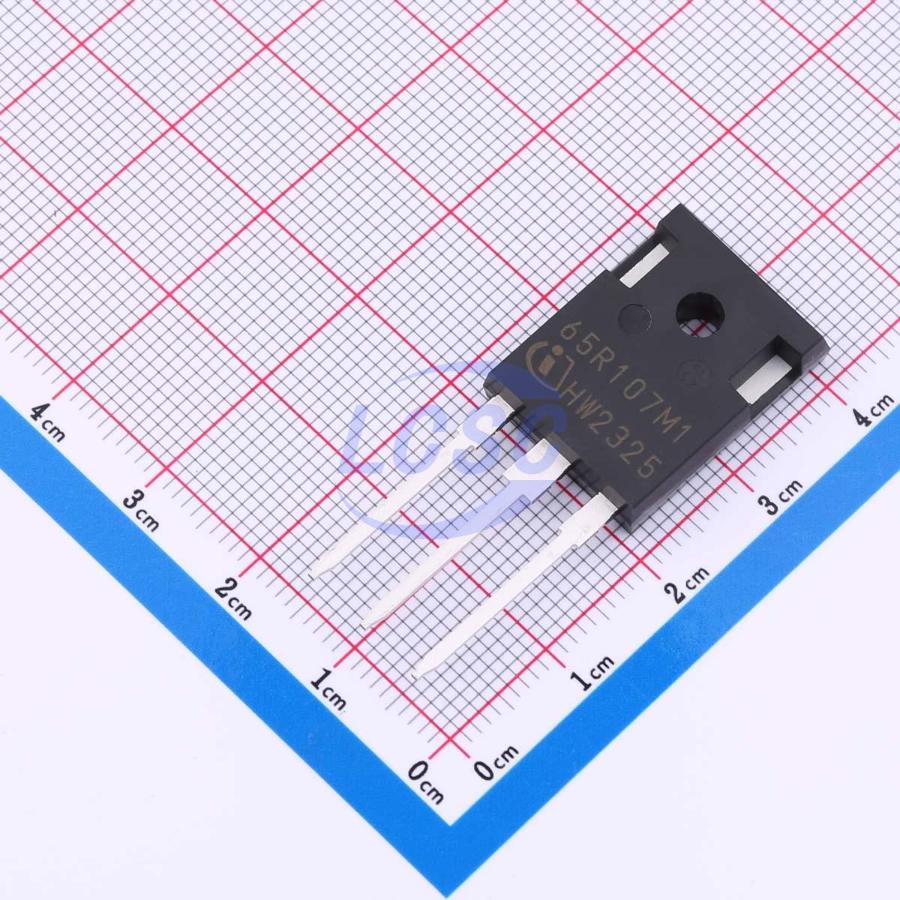

IMW65R107M1HXKSA1
650V 20A 75W 142mΩ@18V 1 N-channel N-Channel TO-247-3 Single FETs, MOSFETs RoHS
TO-247-3ROHS3 CompliantActive
650V CoolSiC M1 Silicon Carbide Trench Power Device
- Manufacturer
- Infineon
- Manufacturer part #
- IMW65R107M1HXKSA1
- Store part #
- C2997994
- Package / case
- TO-247-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C2997994
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,047.39 | ₹1,047.39 |
| 10+ | ₹904.11 | ₹9,041.10 |
| 30+ | ₹816.89 | ₹24,506.70 |
| 90+ | ₹743.62 | ₹66,925.80 |
1 × ₹1,047.39
₹1,047.39
excl. GST
₹1,235.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 30 per tube
IMW65R107M1HXKSA1
₹1,047.39 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Output Capacitance(Coss)
- 75pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 496pF
- Pd - Power Dissipation
- 75W
- Reverse Transfer Capacitance (Crss)
- 7pF
- RDS(on)
- 142mΩ@18V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 15nC
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 30 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 8.537 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BCW120N160W1#C42401700Bestirpower · TO-247-3L | Bestirpower | TO-247-3L | 83 | ₹250.21 · 83 in stock | View |
 | SP23N120CTF#C45351243Siliup · TO-247 | Siliup | TO-247 | 101 | ₹263.03 · 101 in stock | View |
 | NTHL190N65S3HF-HXY#C53133746HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 9 | ₹297.15 · 9 in stock | View |
 | FCH190N65F-F155-HXY#C53133747HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 5 | ₹250.85 · 5 in stock | View |
 | SPW20N60C3FKSA1-HXY#C53133748HXY MOSFET · TO-247 | HXY MOSFET | TO-247 | 8 | ₹297.15 · 8 in stock | View |
