INA290A4QDCKRQ1

1 2uV 2.7V~120V 2V/us 160dB 20uA 370uA 200V/V SC-70-5 Instrumentation, Op Amps, Buffer Amps RoHS

SC-70-5ROHS CompliantActive

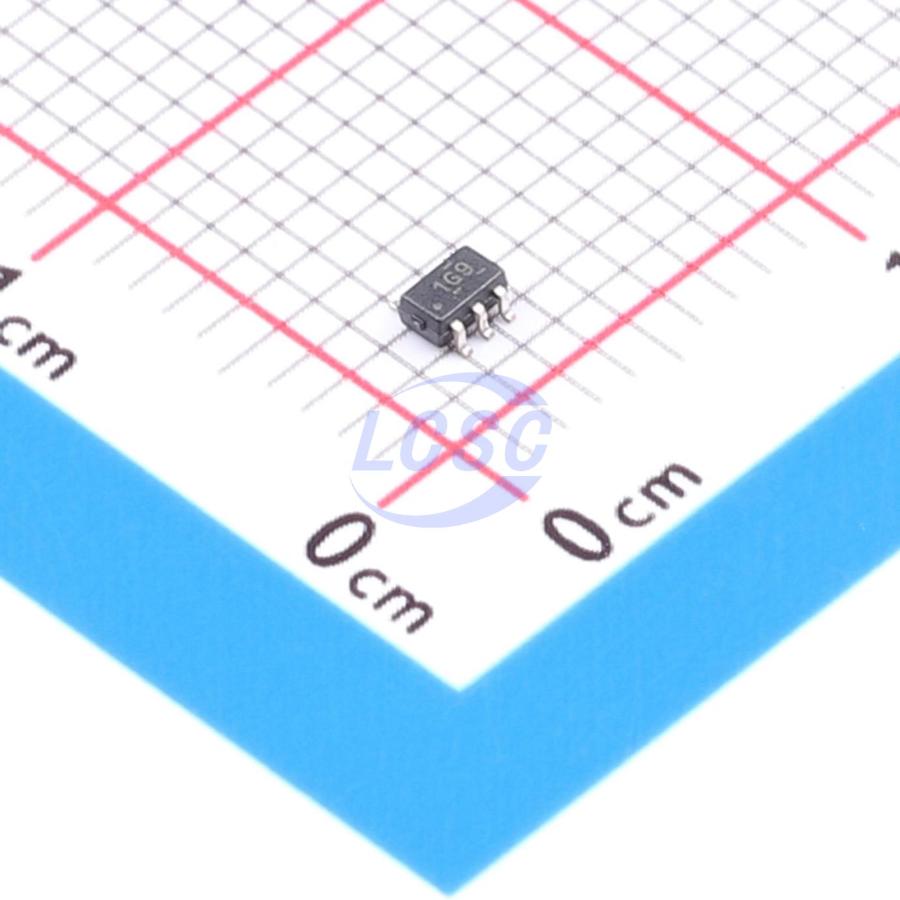

Ultra-Precision Current Sense Amplifier

Manufacturer: TI
Manufacturer part #: INA290A4QDCKRQ1
Store part #: C5214642
Package / case: SC-70-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11 in stock

#C5214642

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹734.01	₹734.01
10+	₹654.45	₹6,544.50
30+	₹603.76	₹18,112.80
100+	₹554.58	₹55,458.00

Quantity (min 1)

1 × ₹734.01

₹734.01

excl. GST

₹866.13 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA290A4QDCKRQ1

₹734.01 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vos - Input Offset Voltage: 2uV
Vcm - Common Mode Voltage: 2.7V~120V
Slew Rate: 2V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 160dB
Ib - Input Bias Current: 20uA
Input Offset Voltage Drift(Vos TC): 0.2uV/℃
-3dB Bandwidth: 1.1MHz
Quiescent Current: 370uA
Gain: 200V/V
Features: High-side detection;Zero drift / auto-zero
Input Voltage Noise Density: 50nV/√Hz
Differential Voltage: ±30V
Single Supply: 2.7V~20V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

The INA290-Q1 is an ultra-precision current-sensing amplifier that can measure the voltage drop across a shunt resistor within a wide common-mode range of 2.7V to 120V. It comes in a space-saving SC-70 package, with a PCB footprint of only 2.0mm×2.1mm. Thanks to the combination of features such as an ultra-low offset voltage of ±12μV (maximum), a small gain error of ±0.1% (maximum), and a high DC CMRR of 160dB (typical), the device can achieve ultra-high precision in current measurement. With a high bandwidth of 1.1MHz (at a gain of 20V/V) and an AC CMRR of 85dB (at 50kHz), the INA290-Q1 is suitable not only for DC current measurement but also for high-speed applications (e.g., fast overcurrent protection). By detecting the voltage drop across the shunt resistor within a wide common-mode range of 2.7V to 120V, the INA290-Q1 can provide the function of ultra-precision current measurement. The INA290-Q1 uses an SC-70 package, which can minimize the size of the solution.

Applications

Solid-state LiDAR
Automotive HVAC compressor modules
Automotive interior heater modules
Automotive parking heater modules
Automotive pumps

Key features

AEC-Q100 qualified for automotive applications: Temperature Grade 1: -40°C to +125°C, TA; functional safety documentation available to support functional safety system design
Wide common-mode voltage: operating voltage 2.7V to 120V, withstand voltage -20V to +122V
Excellent CMRR: 160dB DC, 85dB AC (at 50kHz)
Accuracy: gain error ±0.1% (max), gain drift ±5ppm/°C (max); offset voltage ±12μV (max), offset drift ±0.2μV/°C (max)
Available gains: 20V/V (A1), 50V/V (A2), 100V/V (A3), 200V/V (A4), 500V/V (A5)
High bandwidth: 1.1MHz
Slew rate: 2V/µs
Quiescent current: 370μA
