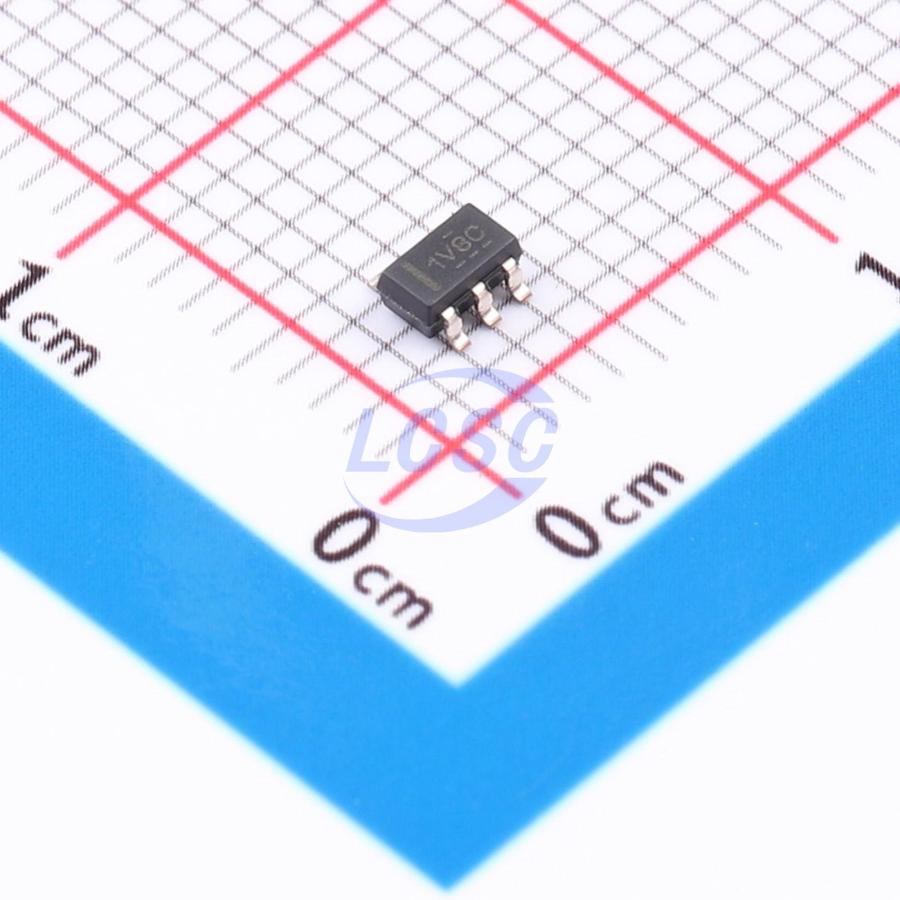

INA293B4QDBVRQ1

1 -4V~110V 5uV 2.5V/us 160dB 20uA 1.5mA 200V/V SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS

SOT-23-5ROHS3 CompliantActive

-4V to 110V, 1.3MHz Ultra-Precision Current Sense Amplifier

Manufacturer: TI
Manufacturer part #: INA293B4QDBVRQ1
Store part #: C2869953
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

12 in stock

#C2869953

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹856.26	₹856.26
10+	₹763.73	₹7,637.30
30+	₹704.21	₹21,126.30
100+	₹647.08	₹64,708.00

Quantity (min 1)

1 × ₹856.26

₹856.26

excl. GST

₹1,010.39 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

INA293B4QDBVRQ1

₹856.26 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Number of Channels: 1
Vcm - Common Mode Voltage: -4V~110V
Vos - Input Offset Voltage: 5uV
Slew Rate: 2.5V/us
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 160dB
Ib - Input Bias Current: 20uA
Input Offset Voltage Drift(Vos TC): 0.25uV/℃
-3dB Bandwidth: 1.3MHz
Quiescent Current: 1.5mA
Gain: 200V/V
Features: High-side detection;Low-side detection;Zero drift / auto-zero
Input Voltage Noise Density: 50nV/√Hz@1kHz
Differential Voltage: ±12V
Single Supply: 2.7V~20V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 1.133 g

Overview

The INA293-Q1 is an ultra-precision current sense amplifier that measures the voltage drop across a shunt resistor over a wide common-mode range of –4V to 110V. The negative common-mode voltage allows the device to operate below ground, enabling accurate measurement of freewheeling currents in half-bridge applications. The combination of low offset voltage, small gain error, and high DC CMRR enables high-accuracy current measurement. The INA293-Q1 is suitable not only for DC current measurement but also for high-speed applications such as fast overcurrent protection, featuring a wide bandwidth of 1.3MHz and 85dB AC CMRR (at 50kHz). The INA293-Q1 operates from a single supply of 2.7V to 20V with a supply current of 1.5mA. The INA293-Q1 offers five gain options: 20V/V, 50V/V, 100V/V, 200V/V, and 500V/V, covering a wide dynamic range of current sensing applications. The INA293-Q1 is rated for an operating temperature range of –40°C to +125°C and is available in a space-saving SOT-23 package with two pin configuration options.

Applications

48V Automotive
Solenoid Control
48V DC/DC Converter
Valve Control

Key features

AEC-Q100 qualified for automotive applications – Temperature Grade 1: -40°C to +125°C, TA
Functional Safety capable
Documentation available to aid functional safety system design
Wide common-mode voltage: operating voltage: -4V to +110V, withstand voltage: -20V to +120V
Excellent CMRR: 160dB DC CMRR, 85dB AC CMRR (at 50kHz)
Accuracy: gain error: ±0.15% (maximum), gain drift: ±10ppm/°C (maximum); offset voltage: ±15μV (typical), temperature drift: ±0.05μV/°C (typical)
High bandwidth: 1.3 MHz
Slew rate: 2.5 V/μs
Quiescent current: 1.5mA
Available gains: 20V/V, 50V/V, 100V/V, 200V/V, and 500V/V
