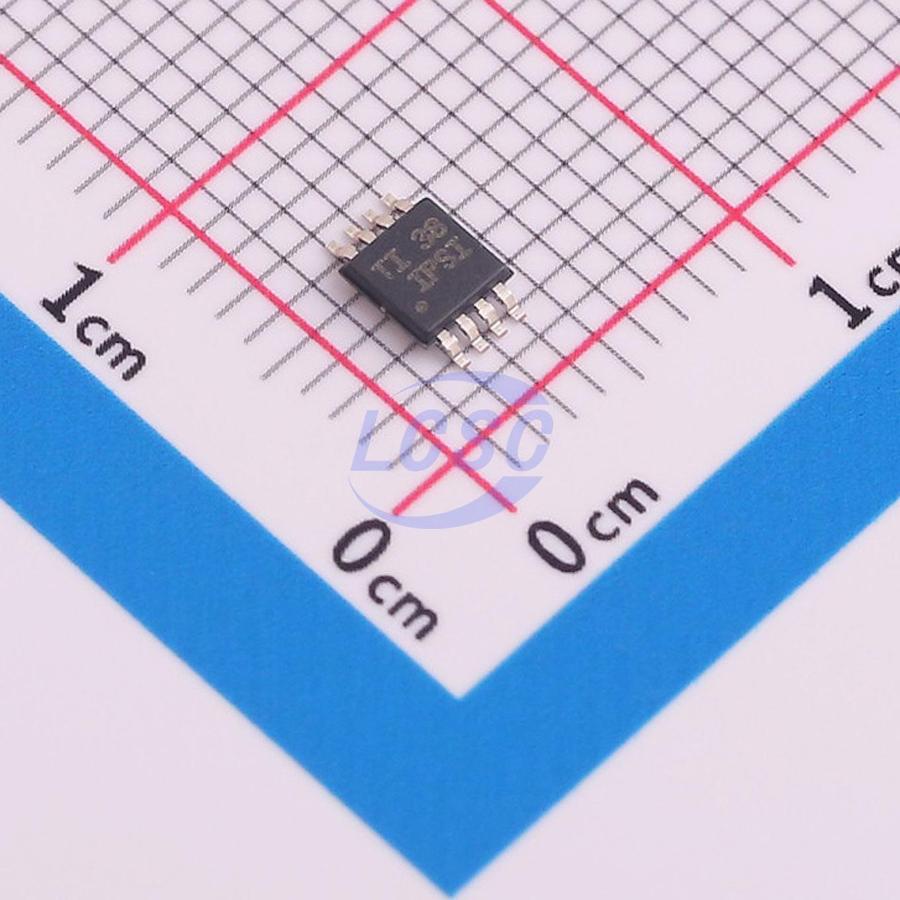

INA827AIDGKR

16mA 1 40uV 1.5V/us 100dB 35nA 200uA Rail-to-rail output MSOP-8 Instrumentation, Op Amps, Buffer Amps RoHS

MSOP-8ROHS3 CompliantActive

Instrument amplifier with wide power supply range and rail-to-rail output

Manufacturer: TI
Manufacturer part #: INA827AIDGKR
Store part #: C2860185
Package / case: MSOP-8
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

854 in stock

#C2860185

Stock & price checked 19 days ago

Quantity	Unit price	Pack price
1+	₹277.53	₹277.53
10+	₹241.54	₹2,415.40
30+	₹218.77	₹6,563.10
100+	₹195.79	₹19,579.00
500+	₹185.38	₹92,690.00
1,000+	₹180.83	₹1,80,830.00

Quantity (min 1)

1 × ₹277.53

₹277.53

excl. GST

₹327.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

INA827AIDGKR

₹277.53 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Settling time: 10us
Output Current: 16mA
Number of Channels: 1
Vos - Input Offset Voltage: 40uV
Slew Rate: 1.5V/us
Input Offset Current(Ios): 700pA
Operating Temperature: -40℃~+125℃
Common Mode Rejection Ratio(CMRR): 100dB
Ib - Input Bias Current: 35nA
Power Supply Rejection Ratio (PSRR): 120dB
Input Offset Voltage Drift(Vos TC): 500nV/℃
Quiescent Current: 200uA
Features: External resistor gain;Overvoltage protection
Input Voltage Noise Density: 17nV/√Hz@1kHz
Dual Supply: -18V~-1.5V;1.5V~18V
Rail to Rail: Rail-to-rail output
Single Supply: 3V~36V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 2 (1 year)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.051 g
