TECH PUBLIC

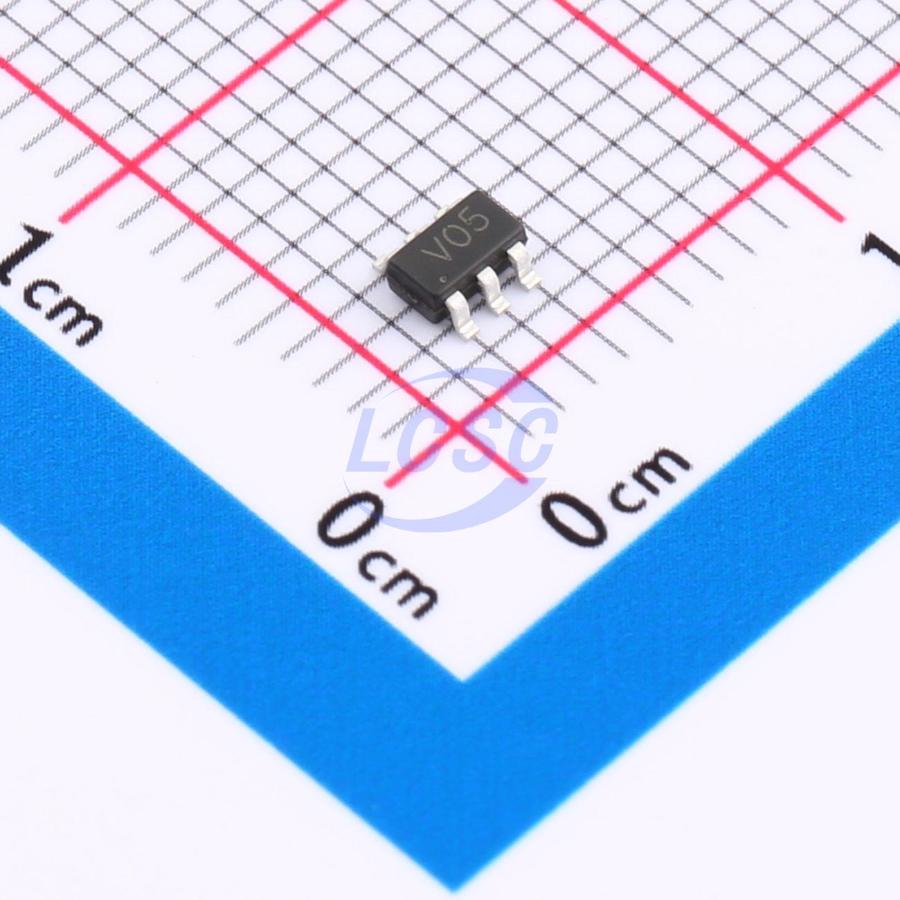

IP4220CZ6-L

20VC Clamp 3A@8/20us Ipp SOT-23-6

SOT-23-6RoHSActive

5VWM 20VC SOT-23-6

Manufacturer: TECH PUBLIC
Manufacturer part #: IP4220CZ6-L
Store part #: C19829526
Package / case: SOT-23-6
Category: TVS Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,720 in stock

#C19829526

Stock & price checked 16 days ago

Quantity	Unit price	Pack price
20+	₹4.71	₹94.20
200+	₹3.64	₹728.00
600+	₹3.06	₹1,836.00
3,000+	₹2.70	₹8,100.00
9,000+	₹2.38	₹21,420.00
21,000+	₹2.22	₹46,620.00

Quantity (min 20, multiples of 20)

20 × ₹4.71

₹94.20

excl. GST

₹111.16 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

IP4220CZ6-L

₹94.20 for 20 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Clamping Voltage: 20V
Operating Temperature: -55℃~+125℃
Peak Pulse Current (Ipp): 3A@8/20us
Peak Pulse Power Dissipation (Ppp): 60W@8/20us
Voltage - Breakdown: 9V
Reverse Leakage Current (Ir): 500nA
Reverse Stand-Off Voltage (Vrwm): 5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 20 (multiples of 20)
Unit weight: 0.039 g

Overview

Applications

USB 2.0 and USB 3.0 Ports
USB OTG
Digital video interface (DVI)
Monitor and Flat Panel Displays
PCI Express and Serial SATA Ports
Gigabit Ethernet
IEEE 1394 firewire ports
Consumer products (STB, DVD, DSC, DVC..)

Key features

Ultra low capacitance: 0.3pF typical (/O to /0)
Ultra low leakage: nA level
Low operating voltage: 5V
Low clamping voltage
Up to 4 data lines and one power line protects
Complies with following standards:
IEC 61000-4-2 (ESD) immunity test Air discharge: ±30kV Contact discharge: ±25kV
IEC 61000-4-4 (EFT) 40A (5/50ns)
IEC 61000-4-5 (Lightning): 3A (8/20μs)
