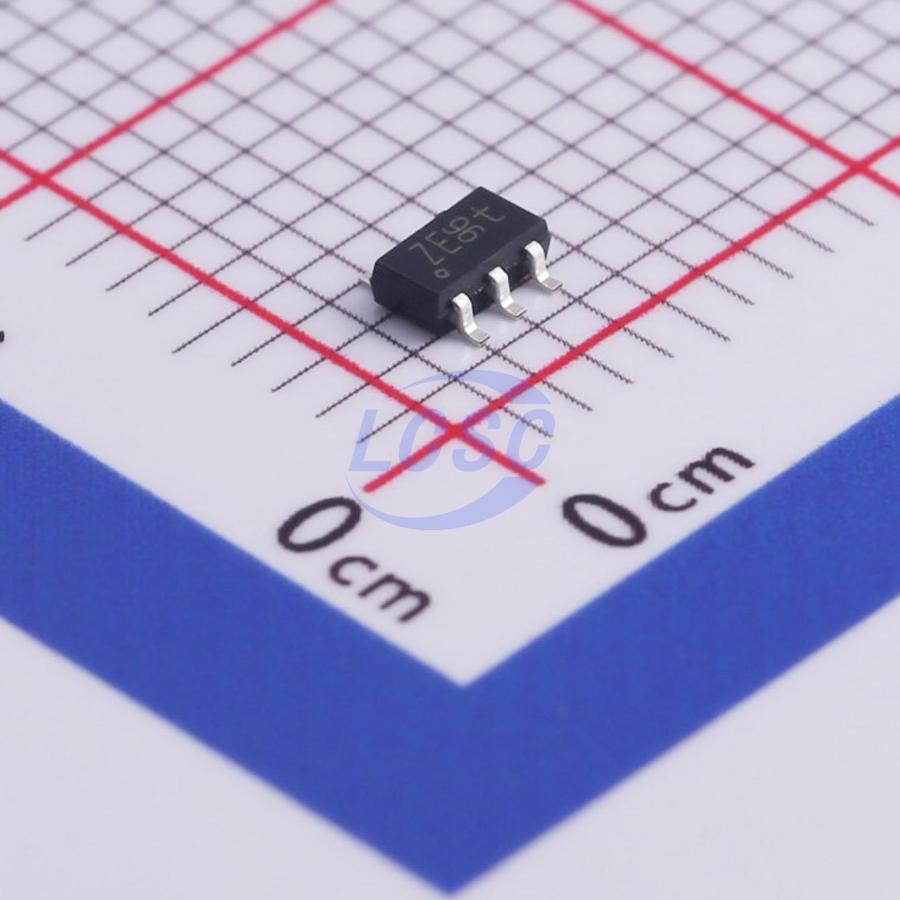

IP4234CZ6,125

The IP4234CZ6 is designed to protect Input/Output (I/O) USB 2.0 ports, that are sensitive to capacitive loads, from being damaged by ElectroStatic Discharge (ESD). The π- filter structure is implemented with a small series resistor to provide the necessary protection to signal and supply components from ESD voltages greater than ±8 KV contact discharge according IEC 61000-4-2, level 4. The ESD protection is independent of the supply voltage due to the rail-to-rail diode architecture being connected to a Zener diode. The IP4234CZ6 is fabricated using monolithic silicon technology and integrates two ultralow capacitance π-filter ESD protection diodes plus a Zener diode in a miniature 6-lead SOT457 package.

Applications

• General-purpose downstream ESD protection high frequency analog signals and highspeed serial data transmission for ports inside:
• Cellular and PCS mobile handsets
• PC/Notebook USB2.0/IEEE1394 ports
• DVI interfaces
• HDMI interfaces
• Cordless telephones
• Wireless data (WAN/LAN) systems
• PDAs

Key features

• Pb-free and RoHS compliant
• Simple, direct signal routing provides for high speed signal integrity
• ESD protection compliant to IEC 61000-4-2 level 4, ±8 KV contact discharge
• Four low input capacitance (3.1 pF typical) rail-to-rail ESD protection diodes
• Low voltage clamping due to an integrated Zener diode
• Small 6-lead SO6 (SOT457) package
• IEC 61000-4-5 15 A Lightning (8/20 μs) compliant
