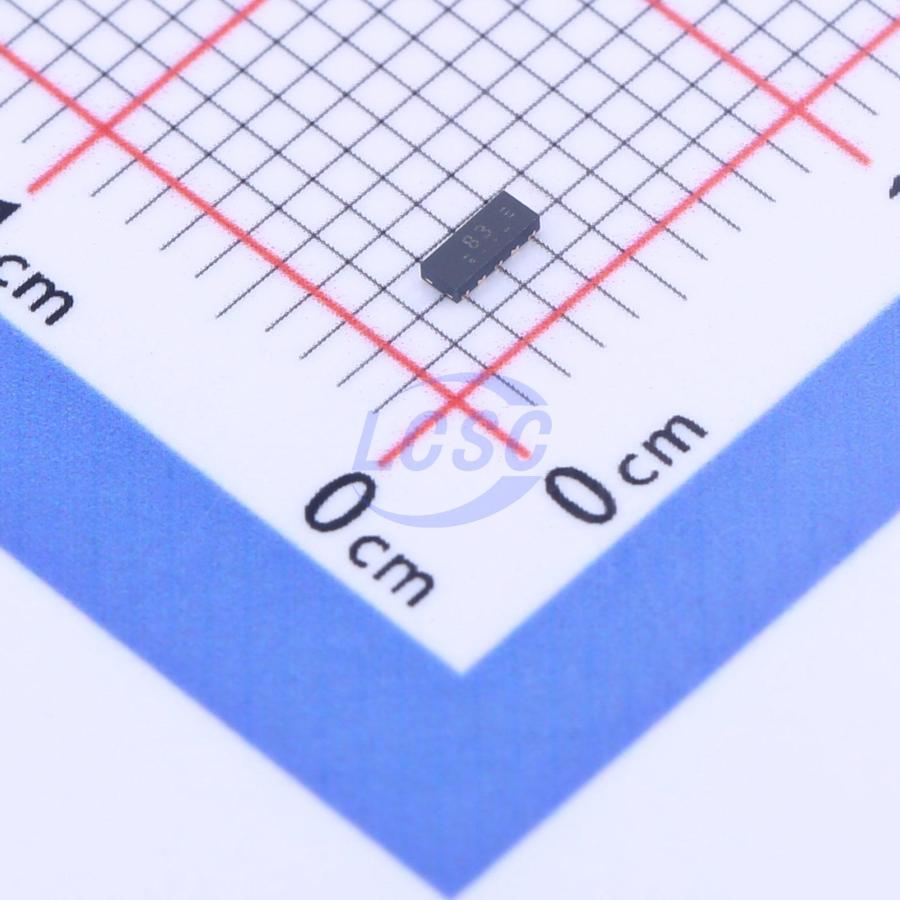

IP4283CZ10-TBR,115
9.5VC Clamp ESD DIODE DFN2510-10
ESD DIODE 5.5VWM 9.5VC DFN2510-10
- Manufacturer
- Nexperia
- Manufacturer part #
- IP4283CZ10-TBR,115
- Store part #
- C551514
- Package / case
- DFN2510-10
- Category
- TVS Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,370 in stock
#C551514
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹33.90 | ₹169.50 |
| 50+ | ₹26.47 | ₹1,323.50 |
| 150+ | ₹23.30 | ₹3,495.00 |
| 500+ | ₹19.33 | ₹9,665.00 |
| 2,500+ | ₹17.56 | ₹43,900.00 |
| 5,000+ | ₹16.50 | ₹82,500.00 |
5 × ₹33.90
₹169.50
excl. GST
₹200.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
IP4283CZ10-TBR,115
₹169.50 for 5 + GST
Specifications
- Clamping Voltage
- 9.5V
- Operating Temperature
- -40℃~+85℃
- Number of Channels
- Four channels
- Voltage - Breakdown
- 6V
- type
- ESD
- Reverse Leakage Current (Ir)
- 1uA
- Reverse Stand-Off Voltage (Vrwm)
- 5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.025 g
Overview
The devices are designed to protect high-speed interfaces such as High-Definition Multimedia Interface (HDMI), DisplayPort, external Serial Advanced Technology Attachment (eSATA) and Low-Voltage Differential Signaling (LVDS) interfaces against ElectroStatic Discharge (ESD). The devices include four high-level ESD protection diode structures for ultra high-speed signal lines. They are available in three package variants: DFN2510-10 (SOT1165-1), DFN2510A-10 (SOT1176-1) and TSSOP10 (SOT552-1). All signal lines are protected by a special diode configuration offering ultra low line capacitance of only 0.6 pF. These diodes provide protection to downstream components from ESD voltages up to ±8 kV contact according to IEC 61000-4-2, level 4.
Applications
- TVs, monitors
- DVD recorders and players
- Notebooks, main board graphics cards and ports
- Set-top boxes and game consoles
Key features
- System ESD protection for HDMI, DisplayPort, eSATA and LVDS
- All signal lines with integrated rail-to-rail clamping diodes for downstream
- ESD protection of ±8 kV according to IEC 61000-4-2, level 4
- Matched 0.5 mm trace spacing
- Signal lines with ≤0.05 pF matching capacitance between signal pairs
- Line capacitance of only 0.6 pF for each channel
- Design-friendly ‘pass-thru’ signal routing
