IP4292CZ10-TBR,115-JSM

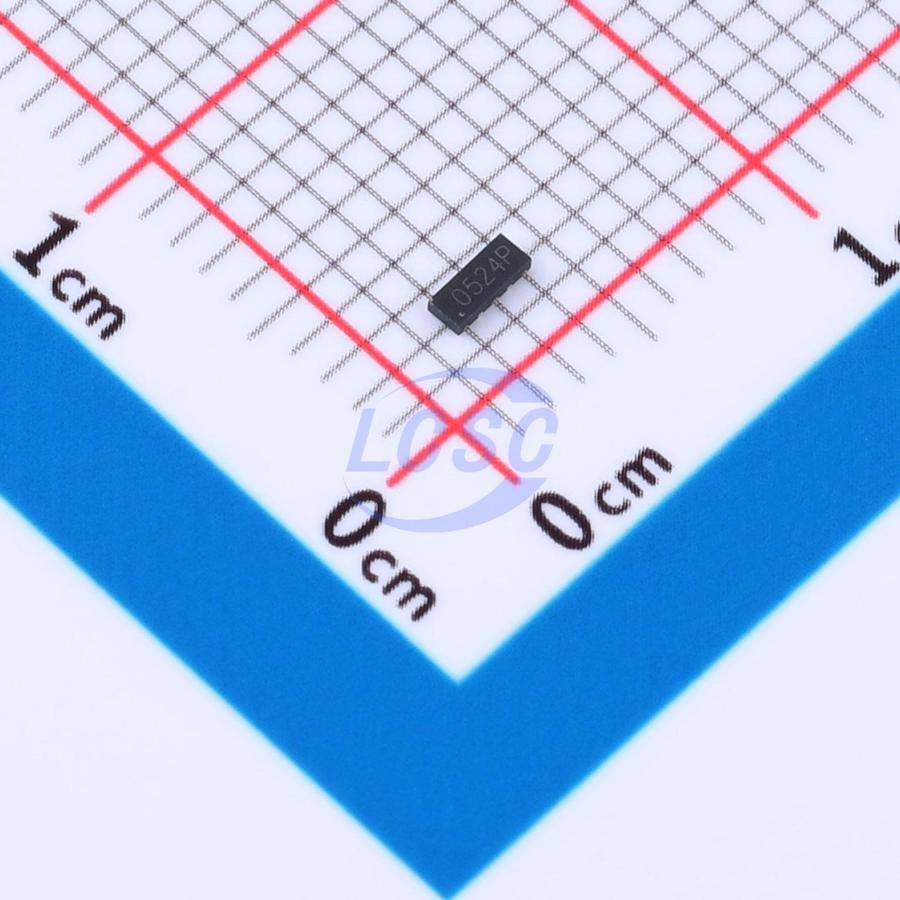

IP4292CZ10-TBR,115-JSM is an ultra-low capacitance transient voltage suppressor designed to protect high-speed data interfaces. With a typical capacitance of only 0.2pF, it is designed to protect systems sensitive to parasitic parameters from overvoltage and overcurrent transient events. The device complies with IEC 61000-4-2 at Level 4, withstanding ±15kV air discharge and ±8kV contact discharge, as well as IEC 61000-4-4, withstanding 40A, 5/50ns electrical fast transient bursts, and very fast charged device model ESD and cable discharge events. IP4292CZ10-TBR,115-JSM comes in an ultra-compact DFN2510 package. Each device protects four high-speed data lines. The combination of ultra-low capacitance, ultra-small form factor, and high ESD robustness makes it ideal for high-speed data port and high-frequency line applications. Its low clamping voltage ensures minimal stress on the protected IC.

Applications

• Serial ATA
• PCI Express
• Desktops, Servers and Notebooks
• MDDI Ports
• USB 2.0/3.0 Power and Data Line Protection

Key features

• Transient protection for high-speed data lines
• IEC 61000-4-2 compliant, withstands ±25kV air discharge
• IEC 61000-4-2 compliant, withstands ±20kV contact discharge
• IEC 61000-4-4 compliant, withstands 40A, 5/50ns electrical fast transient burst
• Withstands cable discharge events
• Package optimized for high-speed lines
• Ultra-compact package
• Protects four data lines
• Low capacitance: 0.2pF
• Low leakage current
• Low clamping voltage
• Each I/O pin withstands ESD strikes of over 1000 ±8kV contact discharges
