InfineonDatasheet (PDF)

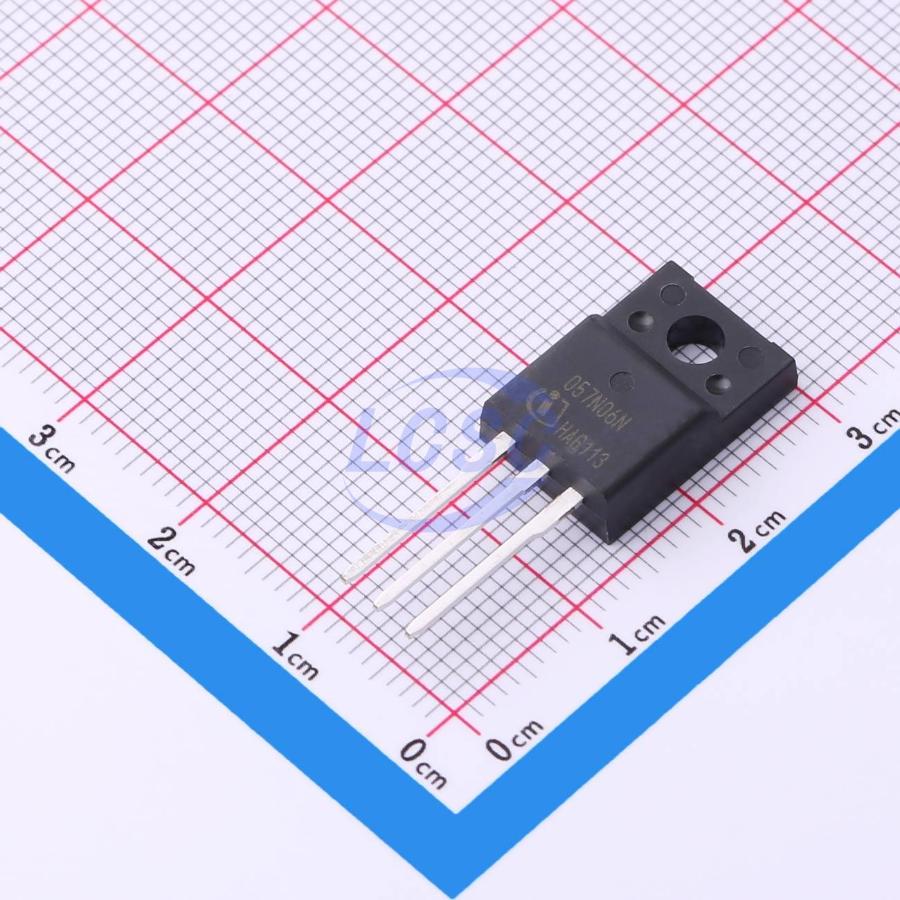

IPA057N06N3G
60V 60A 38W Through Hole TO-220
TO-220ROHS CompliantActive
MOSFET 60V 60A TO-220
- Manufacturer
- Infineon
- Manufacturer part #
- IPA057N06N3G
- Store part #
- C3282149
- Package / case
- TO-220
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C3282149
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹788.52 | ₹788.52 |
| 10+ | ₹680.00 | ₹6,800.00 |
| 50+ | ₹615.62 | ₹30,781.00 |
| 100+ | ₹550.58 | ₹55,058.00 |
| 500+ | ₹520.44 | ₹2,60,220.00 |
| 1,000+ | ₹506.88 | ₹5,06,880.00 |
1 × ₹788.52
₹788.52
excl. GST
₹930.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA057N06N3G
₹788.52 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.5nF
- Ciss-Input Capacitance
- 6.6nF
- Pd - Power Dissipation
- 38W
- Drain to Source Voltage
- 60V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 60A
- Reverse Transfer Capacitance (Crss)
- 38pF
- RDS(on)
- 5.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.9 g
Overview
Applications
- Standard applications: computers, office equipment, communications equipment, test and measurement equipment, audio/visual equipment, home electronic appliances, machine tools, personal electronic devices, and industrial robots
- High-quality applications: transportation equipment (automobiles, trains, ships, etc.), traffic control systems, disaster prevention systems, anti-theft systems, safety equipment, and medical devices not specifically intended for life support
Key features
- High-frequency switching and synchronous rectification
- Technology optimized for DC/DC converters
- Excellent gate charge × RDS(on) product (Figure of Merit, FOM)
- N-channel, normally-on
- 100% avalanche tested
- Lead-free finish; RoHS compliant
- JEDEC qualified for target applications
