InfineonDatasheet (PDF)

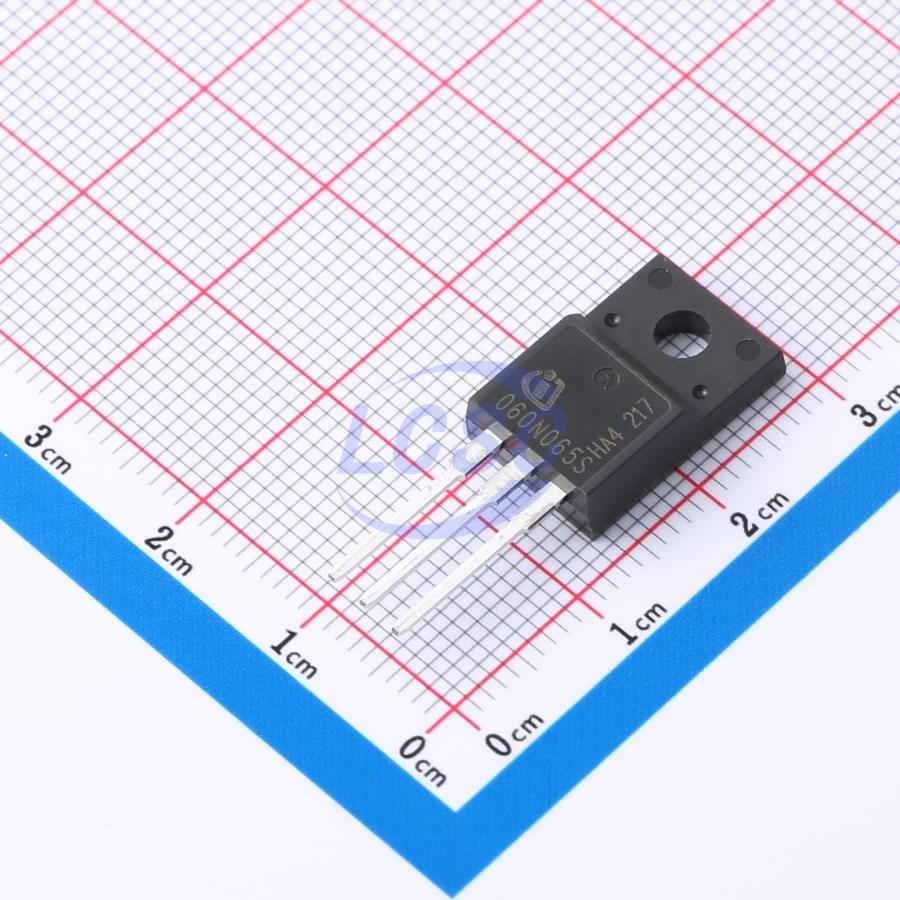

IPA060N06NM5S
N-Channel 60V 56A 33W Through Hole TO-220F
TO-220FROHS CompliantActive
MOSFET N-CH 60V 56A TO-220F
- Manufacturer
- Infineon
- Manufacturer part #
- IPA060N06NM5S
- Store part #
- C536318
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
119 in stock
#C536318
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹242.29 | ₹242.29 |
| 10+ | ₹207.02 | ₹2,070.20 |
| 50+ | ₹185.03 | ₹9,251.50 |
| 100+ | ₹162.40 | ₹16,240.00 |
| 500+ | ₹152.17 | ₹76,085.00 |
| 1,000+ | ₹147.82 | ₹1,47,820.00 |
1 × ₹242.29
₹242.29
excl. GST
₹285.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA060N06NM5S
₹242.29 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 490pF
- Ciss-Input Capacitance
- 2.6nF
- Pd - Power Dissipation
- 33W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 56A
- Reverse Transfer Capacitance (Crss)
- 22pF
- RDS(on)
- 5.2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 27nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.221 g
Overview
Key features
- Ideal for high frequency switching and sync. rec.
- Excellent gate charge x RDS(on) product (FOM)
- Very low on-resistance RDS(on)
- N-channel, normal level
- 100% avalanche tested
- Pb-free plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
