InfineonDatasheet (PDF)

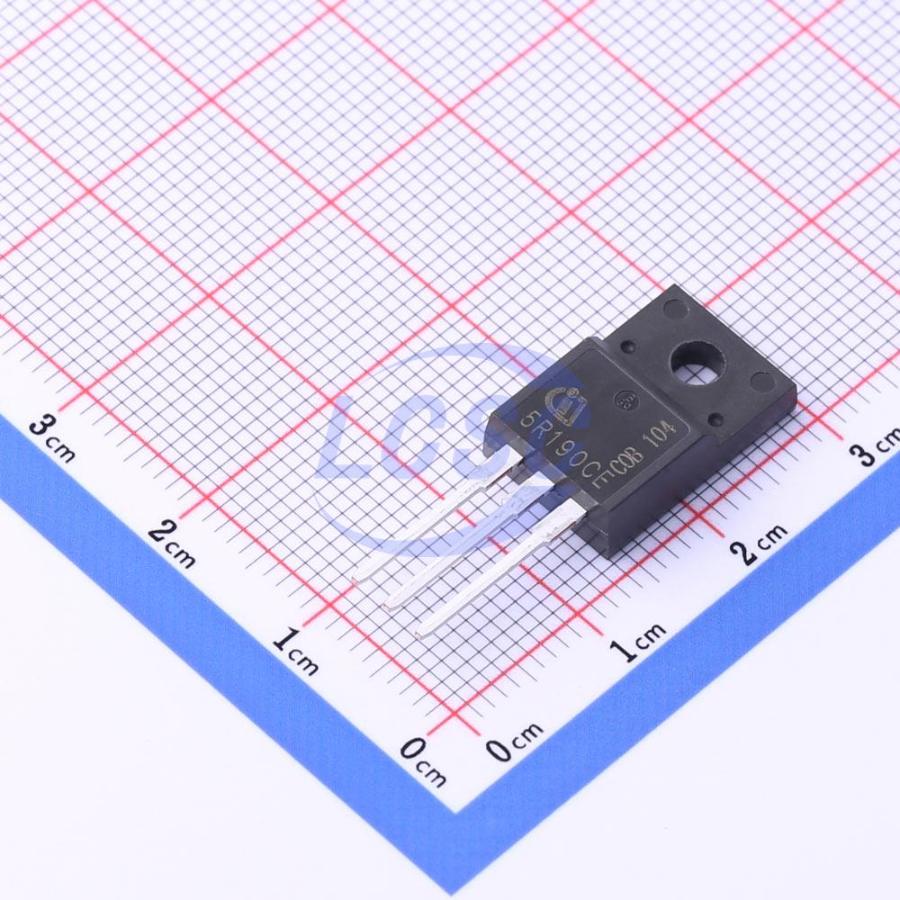

IPA50R190CE
550V 24.8A 32W Through Hole TO-220F
TO-220FROHS3 CompliantDiscontinued
MOSFET 550V 24.8A TO-220F
- Manufacturer
- Infineon
- Manufacturer part #
- IPA50R190CE
- Store part #
- C536330
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C536330
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹186.54 | ₹186.54 |
| 10+ | ₹182.24 | ₹1,822.40 |
| 30+ | ₹179.23 | ₹5,376.90 |
| 100+ | ₹176.42 | ₹17,642.00 |
1 × ₹186.54
₹186.54
excl. GST
₹220.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA50R190CE
₹186.54 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 68pF
- Ciss-Input Capacitance
- 1.137nF
- Pd - Power Dissipation
- 32W
- Operating Temperature
- -40℃~+150℃
- Drain to Source Voltage
- 550V
- Current - Continuous Drain(Id)
- 24.8A
- Reverse Transfer Capacitance (Crss)
- 251pF
- RDS(on)
- 190mΩ@13V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 47.2nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.96 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS CE is a price-performance optimized platform enabling to target cost sensitive applications in Consumer and Lighting markets by still meeting highest efficiency standards. The new series provides all benefits of a fast switching Superjunction MOSFET while not sacrificing ease of use and offering the best cost down performance ratio available on the market.
Applications
- PFC stages, hard switching PWM stages and resonant switching stages for e.g. PC Silverbox, Adapter, LCD & PDP TV and indoor lighting.
Key features
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for standard grade applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ASA60R170E#C5439997ANHI · TO-220F | ANHI | TO-220F | 40 | ₹208.80 · 40 in stock | View |
 | MS25N65HCT1#C42445162MASPOWER · TO-220F | MASPOWER | TO-220F | 150 | ₹191.23 · 150 in stock | View |
 | RSF65T110F#C51904666REASUNOS · TO-220F | REASUNOS | TO-220F | 409 | ₹96.24 · 409 in stock | View |
 | BMF65N120UC1#C47715871Bestirpower · TO-220F | Bestirpower | TO-220F | 78 | ₹176.81 · 78 in stock | View |
 | NCE65TF099F#C502881NCE · TO-220F | NCE | TO-220F | 206 | ₹448.80 · 206 in stock | View |
