InfineonDatasheet (PDF)

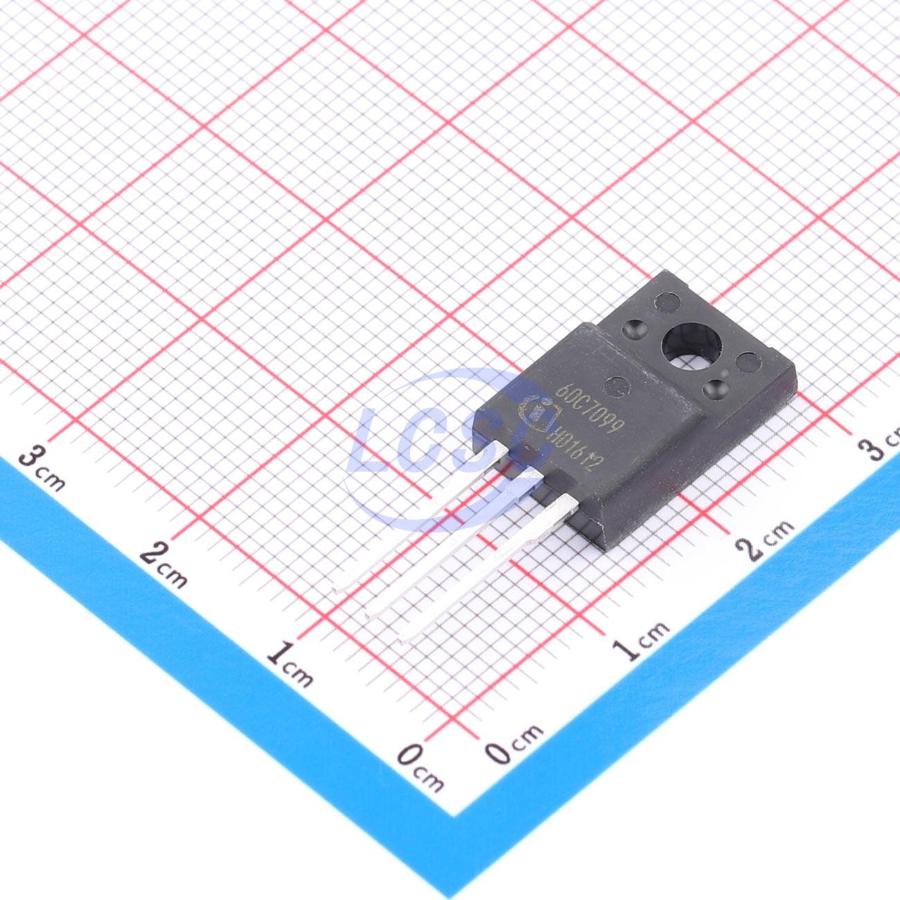

IPA60R099C7
33W 600V 8A 99mΩ@10V 1 N-channel N-Channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R099C7
- Store part #
- C536343
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
16 in stock
#C536343
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,864.61 | ₹1,864.61 |
| 10+ | ₹1,820.38 | ₹18,203.80 |
1 × ₹1,864.61
₹1,864.61
excl. GST
₹2,200.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
IPA60R099C7
₹1,864.61 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 33pF
- Ciss-Input Capacitance
- 1.819nF
- Pd - Power Dissipation
- 33W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Current - Continuous Drain(Id)
- 8A
- Reverse Transfer Capacitance (Crss)
- 641pF
- RDS(on)
- 99mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 42nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.981 g
Overview
CoolMOS™ C7 is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS™ C7 series combines the experience of a leading SJ MOSFET supplier with best-in-class innovation. The 600V C7 is the first technology to achieve an R DS(on) × die area (A) product below 1 Ω·mm².
Applications
- PFC and PWM stages (TTF, LLC) for high-power/high-performance SMPS, including computers, servers, telecommunications, UPS, and solar applications.
Key features
- Suitable for hard-switching and soft-switching (PFC and high-performance LLC)
- Enhances MOSFET dv/dt robustness up to 120V/ns
- Improves efficiency with best-in-class figures of merit RDS(on) * Eoss and RDS(on) * Qg
- Best-in-class RDS(on)-to-package ratio
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPP60R099P7XKSA1#C672383Infineon · TO-220-3 | Infineon | TO-220-3 | 64 | ₹236.12 · 64 in stock | View |
| IPP60R099C7#C537192Infineon · TO-220-3 | Infineon | TO-220-3 | 4 | ₹811.83 · 4 in stock | View | |
 | IPP65R095C7XKSA1#C3278763Infineon · TO-220-3 | Infineon | TO-220-3 | 3 | ₹1,681.74 · 3 in stock | View |
| IPA60R199CP#C536363Infineon · TO-220 | Infineon | TO-220 | 43 | ₹435.90 · 43 in stock | View | |
 | IPP60R120P7#C537199Infineon · TO-220-3 | Infineon | TO-220-3 | 4 | ₹315.96 · 4 in stock | View |
