InfineonDatasheet (PDF)

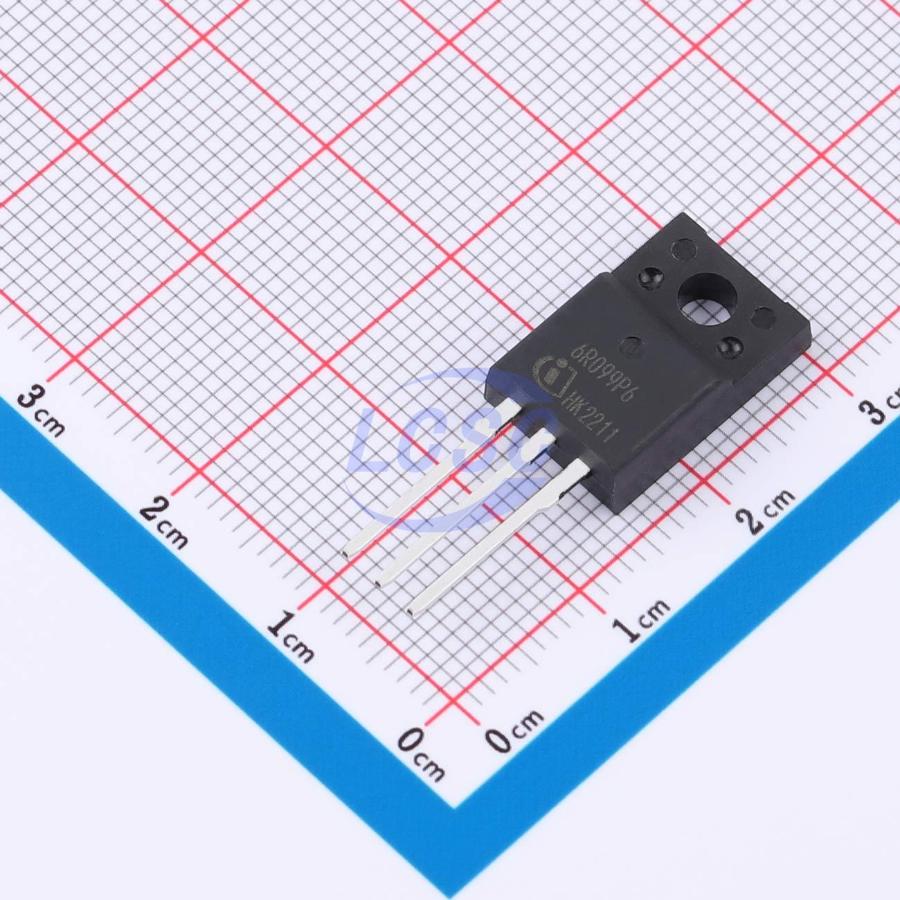

IPA60R099P6
650V 24A 34W 99mΩ@10V 1 N-channel TO-220-3 Single FETs, MOSFETs RoHS
TO-220-3ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPA60R099P6
- Store part #
- C536344
- Package / case
- TO-220-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C536344
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹530.31 | ₹530.31 |
| 10+ | ₹451.29 | ₹4,512.90 |
| 50+ | ₹404.27 | ₹20,213.50 |
| 100+ | ₹356.59 | ₹35,659.00 |
| 500+ | ₹334.60 | ₹1,67,300.00 |
| 1,000+ | ₹324.81 | ₹3,24,810.00 |
1 × ₹530.31
₹530.31
excl. GST
₹625.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R099P6
₹530.31 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 24A
- Ciss-Input Capacitance
- 3.33nF
- Pd - Power Dissipation
- 34W
- RDS(on)
- 99mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 70nC@400V
- Gate Threshold Voltage (Vgs(th))
- 4V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.346 g
Overview
CoolMOS is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS P6 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The offered devices provide all benefits of a fast switching SJ MOSFET while not sacrificing ease of use. Extremely low switching and conduction losses make switching applications even more efficient, more compact, lighter and cooler.
Applications
- PFC stages, hard switching PWM stages and resonant switching stages for e.g. PC Silverbox, Adapter, LCD & PDP TV, Lighting, Server, Telecom and UPS.
Key features
- Increased MOSFET dv/dt ruggedness
- Extremely low losses due to very low FOM Rdson*Qg and Eoss
- Very high commutation ruggedness
- Easy to use/drive
- Pb-free plating, Halogen free mold compound
- Qualified for industrial grade applications according to JEDEC (J-STD20 and JESD22)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CMF65R105#C22391062Cmos · TO-220F | Cmos | TO-220F | 37 | ₹273.86 · 37 in stock | View |
 | BMP65N100UC1#C55805908Bestirpower · TO-220-3L | Bestirpower | TO-220-3L | 93 | ₹201.49 · 93 in stock | View |
 | NTP095N65S3H#C2902084onsemi · TO-220 | onsemi | TO-220 | 10 | ₹1,196.56 · 10 in stock | View |
| IPP65R110CFDA#C537229Infineon · TO-220-3 | Infineon | TO-220-3 | 29 | ₹671.26 · 29 in stock | View | |
 | IXFP34N65X2#C455173Littelfuse/IXYS · TO-220 | Littelfuse/IXYS | TO-220 | 355 | ₹632.46 · 355 in stock | View |
