VBsemi ElecDatasheet (PDF)

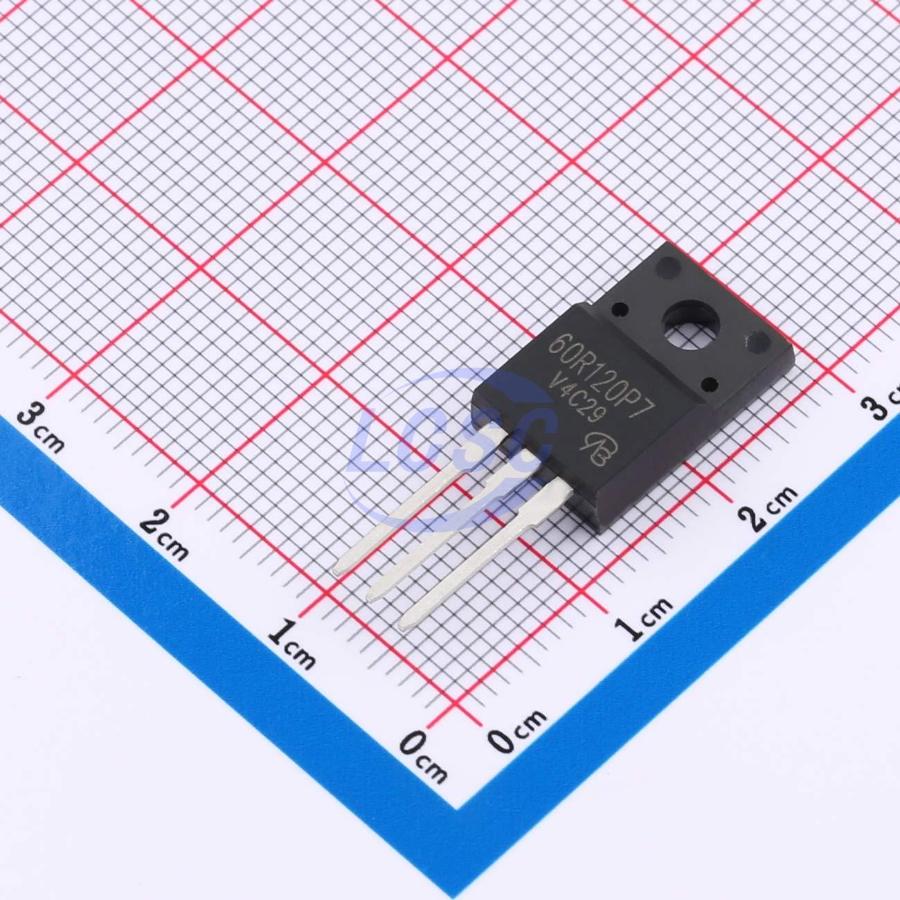

IPA60R120P7-VB
N-Channel 600V 25A 80W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 600V 25A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPA60R120P7-VB
- Store part #
- C22357048
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22357048
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹495.27 | ₹495.27 |
| 10+ | ₹433.43 | ₹4,334.30 |
| 50+ | ₹350.49 | ₹17,524.50 |
| 100+ | ₹313.48 | ₹31,348.00 |
| 500+ | ₹296.29 | ₹1,48,145.00 |
| 1,000+ | ₹288.45 | ₹2,88,450.00 |
1 × ₹495.27
₹495.27
excl. GST
₹584.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R120P7-VB
₹495.27 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 25A
- Ciss-Input Capacitance
- 2.7nF
- Pd - Power Dissipation
- 80W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 120mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 54nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
Applications
- Server and telecom power supplies
- Switching Mode Power Supplies (SMPS)
- Power Factor Correction (PFC) power supplies
- Lighting
- High Intensity Discharge (HID) lamps
- Fluorescent ballast lighting
- Industrial applications
Key features
- Low figure of merit (FOM) Ron × Qg
- Ultra-fast body diode
- Reduced switching and conduction losses
- Ultra-low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SiHF30N60E-VB#C22357049VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 1 | ₹411.29 · 1 in stock | View |
 | STF33N60M6-VB#C22357050VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹411.29 · 5 in stock | View |
 | AOTF125A60L-VB#C22357052VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 1 | ₹411.29 · 1 in stock | View |
 | VBMB16R25S#C22357355VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹411.29 · 5 in stock | View |
 | TK25A60X5-VB#C22357051VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹411.29 · 5 in stock | View |
