VBsemi ElecDatasheet (PDF)

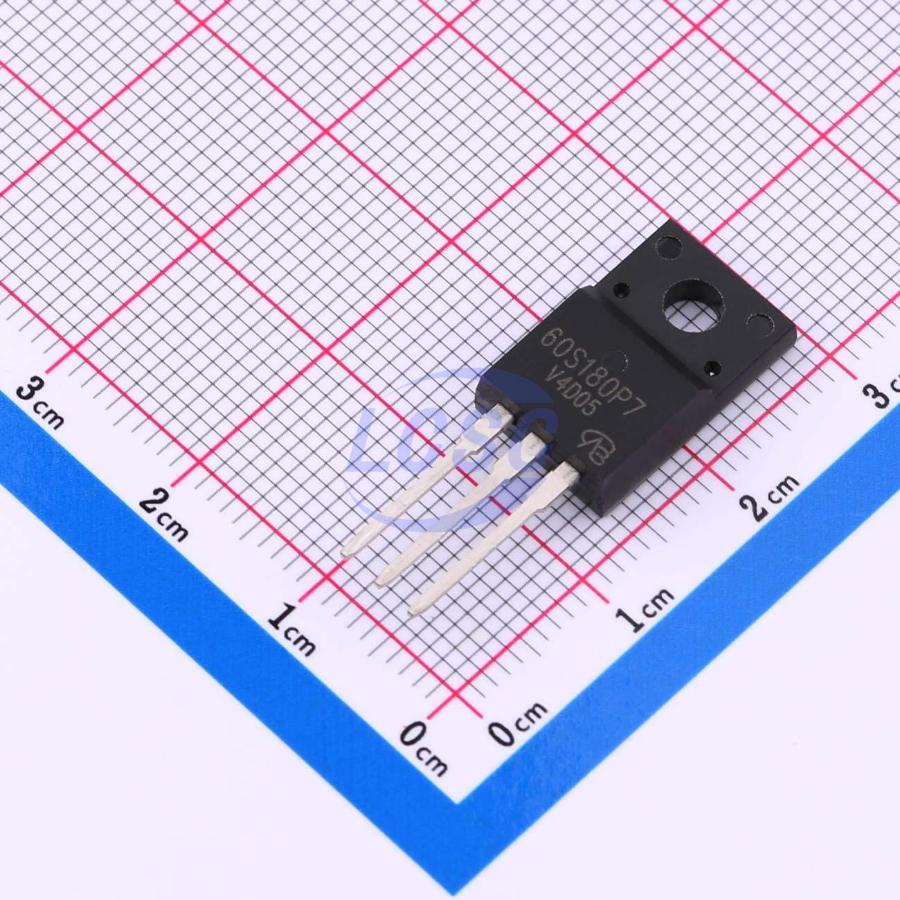

IPA60R180P7S-VB
N-Channel 600V 20A 180W Through Hole TO-220F
TO-220FRoHSActive
MOSFET N-CH 600V 20A TO-220F
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPA60R180P7S-VB
- Store part #
- C22357059
- Package / case
- TO-220F
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C22357059
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹290.93 | ₹290.93 |
| 10+ | ₹246.18 | ₹2,461.80 |
| 50+ | ₹218.26 | ₹10,913.00 |
| 100+ | ₹189.47 | ₹18,947.00 |
| 500+ | ₹176.66 | ₹88,330.00 |
| 1,000+ | ₹170.98 | ₹1,70,980.00 |
1 × ₹290.93
₹290.93
excl. GST
₹343.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPA60R180P7S-VB
₹290.93 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 80pF
- Current - Continuous Drain(Id)
- 20A
- Ciss-Input Capacitance
- 2.29nF
- Pd - Power Dissipation
- 180W
- Reverse Transfer Capacitance (Crss)
- 4pF
- RDS(on)
- 150mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 82nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.1 g
Overview
Applications
- Server and telecom power supplies
- Switch mode power supplies (SMPS)
- Power factor correction power supplies (PFC)
- Lighting - High-intensity discharge (HID)
- Fluorescent ballast lighting
- Industrial
Key features
- Low figure-of-merit (FOM) RDS(on) × Qg
- Low input capacitance (Ciss)
- Reduced switching and conduction losses
- Ultra low gate charge (Qg)
- Avalanche energy rated (UIS)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STF28N60M2-VB#C22357054VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹377.23 · 5 in stock | View |
 | TK20A60W-VB#C22357055VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹348.90 · 5 in stock | View |
 | SiHF23N60E-VB#C22357053VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹348.90 · 5 in stock | View |
 | IPA60R160P7-VB#C22357056VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹348.90 · 5 in stock | View |
 | AOTF160A60L-VB#C22357058VBsemi Elec · TO-220F | VBsemi Elec | TO-220F | 5 | ₹348.90 · 5 in stock | View |
