VBsemi ElecDatasheet (PDF)

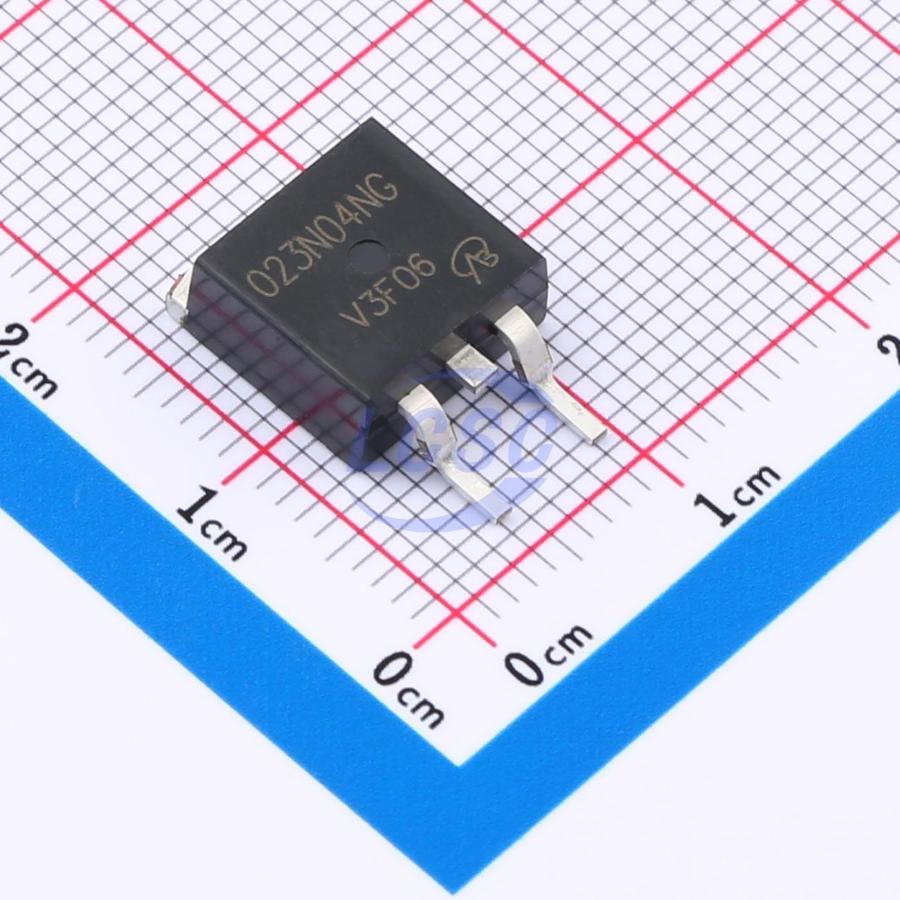

IPB023N04NG-VB
N-Channel 40V 150A 312W Surface Mount TO-263(D2Pak)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPB023N04NG-VB
- Store part #
- C19711204
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C19711204
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹203.37 | ₹203.37 |
| 10+ | ₹169.81 | ₹1,698.10 |
| 50+ | ₹151.31 | ₹7,565.50 |
| 100+ | ₹130.28 | ₹13,028.00 |
| 500+ | ₹120.92 | ₹60,460.00 |
| 1,000+ | ₹116.68 | ₹1,16,680.00 |
1 × ₹203.37
₹203.37
excl. GST
₹239.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
IPB023N04NG-VB
₹203.37 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 650pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 9nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 2.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 180nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.45 g
Overview
Applications
- Synchronous Rectification
- Power Supplies
Key features
- TrenchFET Power MOSFET 100 % Rg and UIS Tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HY4504B-VB#C19190149VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹201.03 · 10 in stock | View |
 | IRF1404SPBF-VB#C19711246VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 14 | ₹201.03 · 14 in stock | View |
 | SUM90N04-3M3P-VB#C19711292VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 50 | ₹232.94 · 50 in stock | View |
 | PSMN1R1-40BS-VB#C20755251VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹201.03 · 10 in stock | View |
 | SUM110N04-03P-E3-VB#C22389864VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 4 | ₹192.84 · 4 in stock | View |
