VBsemi ElecDatasheet (PDF)

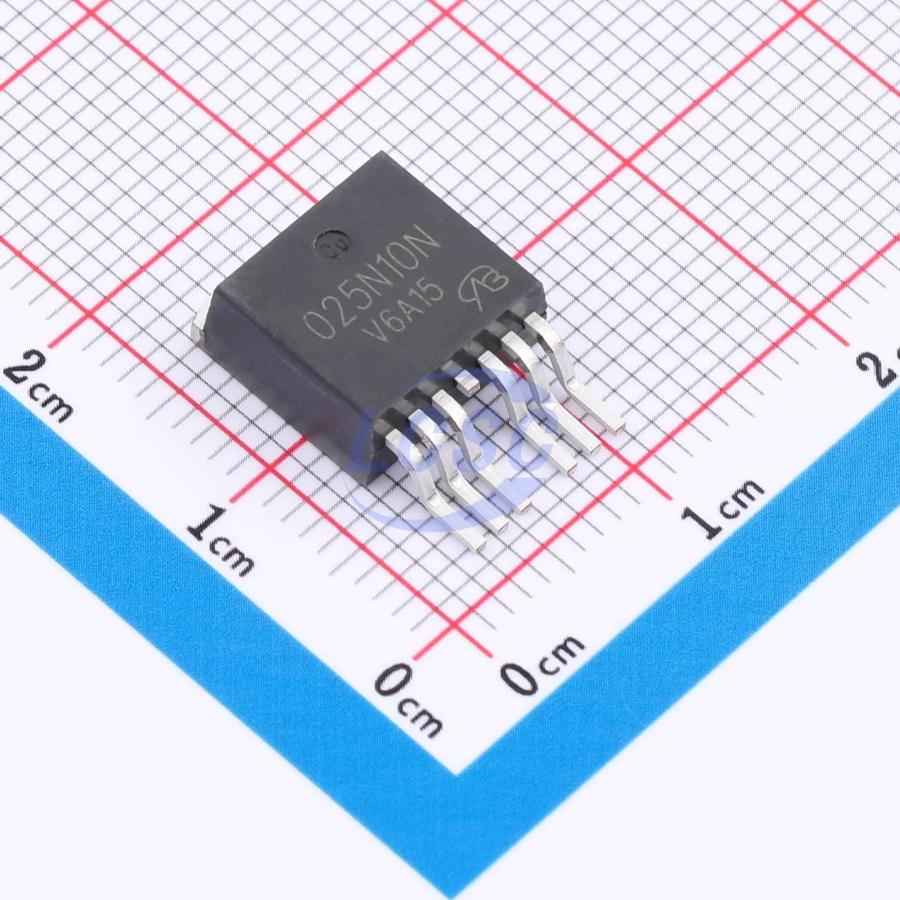

IPB025N10N3G-VB
N-Channel 100V 180A 150W Surface Mount TO-263-7L
TO-263-7LRoHSActive
MOSFET N-CH 100V 180A TO-263-7L
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPB025N10N3G-VB
- Store part #
- C21264526
- Package / case
- TO-263-7L
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
50 in stock
#C21264526
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹395.11 | ₹395.11 |
| 10+ | ₹337.43 | ₹3,374.30 |
| 30+ | ₹301.30 | ₹9,039.00 |
| 100+ | ₹264.07 | ₹26,407.00 |
| 500+ | ₹247.31 | ₹1,23,655.00 |
| 800+ | ₹240.12 | ₹1,92,096.00 |
1 × ₹395.11
₹395.11
excl. GST
₹466.23 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 800 per reel
IPB025N10N3G-VB
₹395.11 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 100V
- Output Capacitance(Coss)
- 246pF
- Current - Continuous Drain(Id)
- 180A
- Ciss-Input Capacitance
- 8.2nF
- Pd - Power Dissipation
- 150W
- Reverse Transfer Capacitance (Crss)
- 21pF
- RDS(on)
- 3mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 105nC@10V
- Gate Threshold Voltage (Vgs(th))
- 4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 800 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.55 g
Overview
Applications
- Power supplies:
- Uninterruptible power supplies
- AC/DC switch-mode power supplies
- Lighting
- Synchronous rectification
- DC/DC converter
- Motor drive switch
- DC/AC inverter
- Solar micro inverter
- Class D audio amplifier
Key features
- SGT technology Power MOSFET
- Maximum 175 °C junction temperature
- 100 % Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | VBGL7103#C21264525VBsemi Elec · TO-263-7L | VBsemi Elec | TO-263-7L | 5 | ₹362.98 · 5 in stock | View |
 | IPB180N10S4-02-VB#C21264527VBsemi Elec · TO-263-7L | VBsemi Elec | TO-263-7L | 5 | ₹362.98 · 5 in stock | View |
 | IPB015N08N5ATMA1-VB#C22395950VBsemi Elec · TO-263-7 | VBsemi Elec | TO-263-7 | 5 | ₹362.98 · 5 in stock | View |
 | IPB180N10S403ATMA1-VB#C46753315VBsemi Elec · TO-263-7 | VBsemi Elec | TO-263-7 | 10 | ₹526.38 · 10 in stock | View |
 | IPF015N10N5ATMA1-VB#C47993813VBsemi Elec · TO-263-7L | VBsemi Elec | TO-263-7L | 5 | ₹468.92 · 5 in stock | View |
