InfineonDatasheet (PDF)

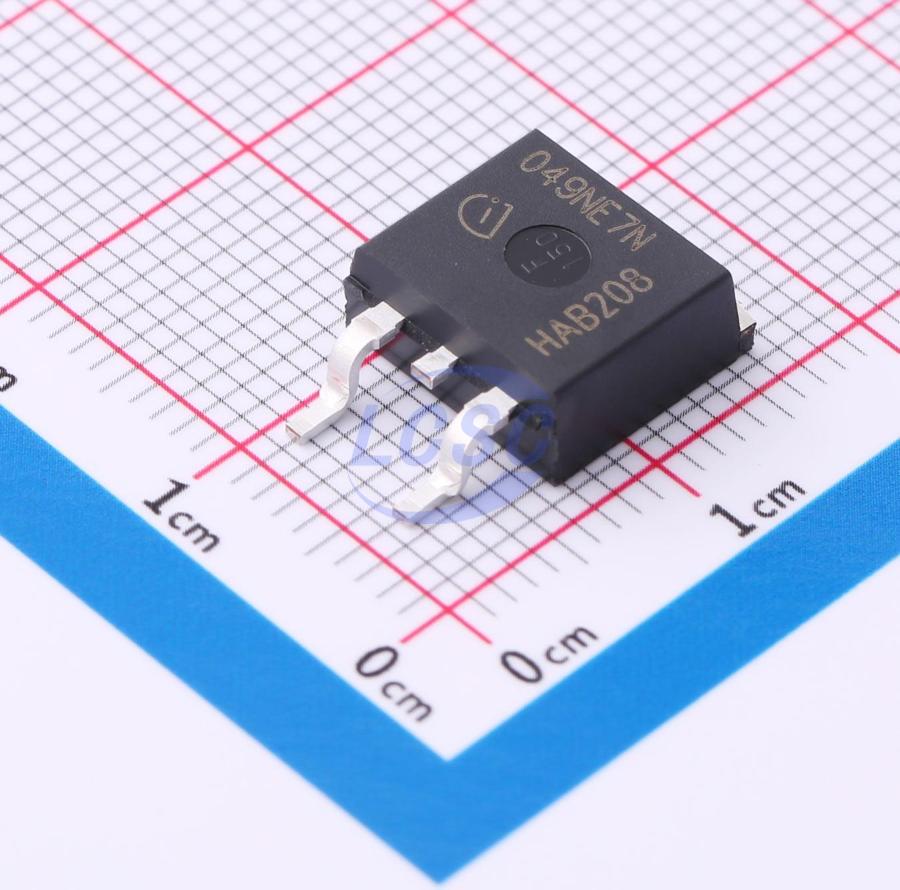

IPB049NE7N3G
N-Channel Surface Mount TO-263
TO-263ROHS3 CompliantActive
MOSFET N-CH TO-263
- Manufacturer
- Infineon
- Manufacturer part #
- IPB049NE7N3G
- Store part #
- C476124
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C476124
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹547.07 | ₹547.07 |
1 × ₹547.07
₹547.07
excl. GST
₹645.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB049NE7N3G
₹547.07 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 805pF
- Ciss-Input Capacitance
- 3.57nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 75V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 40pF
- RDS(on)
- 4.4mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.1V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2 g
Overview
Key features
- Optimized for synchronous rectification
- Ideal for high-frequency switching and DC/DC converters
- Excellent gate charge × RDS(on) product (figure of merit FOM)
- Ultra-low on-resistance RDS(on)
- N-channel, normal level
- 100% avalanche tested
- Lead-free plating; RoHS compliant
- JEDEC qualified for target applications
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XRS130N85G#C54741583XNRUSEMI · TO-263 | XNRUSEMI | TO-263 | On request | ₹79.14 · 0 in stock | View |
 | HSH1504#C54842116HUASHUO · TO-263 | HUASHUO | TO-263 | 40 | ₹145.64 · 40 in stock | View |
 | SFB058N80C3#C49257088SCILICON · TO-263 | SCILICON | TO-263 | 764 | ₹70.98 · 764 in stock | View |
 | IPB065N10N3G(UMW)#C18209207UMW · TO-263 | UMW | TO-263 | 19 | ₹82.26 · 19 in stock | View |
 | APG054N10D#C5443675ALLPOWER · TO-263 | ALLPOWER | TO-263 | 1,004 | ₹165.67 · 1,004 in stock | View |
