InfineonDatasheet (PDF)

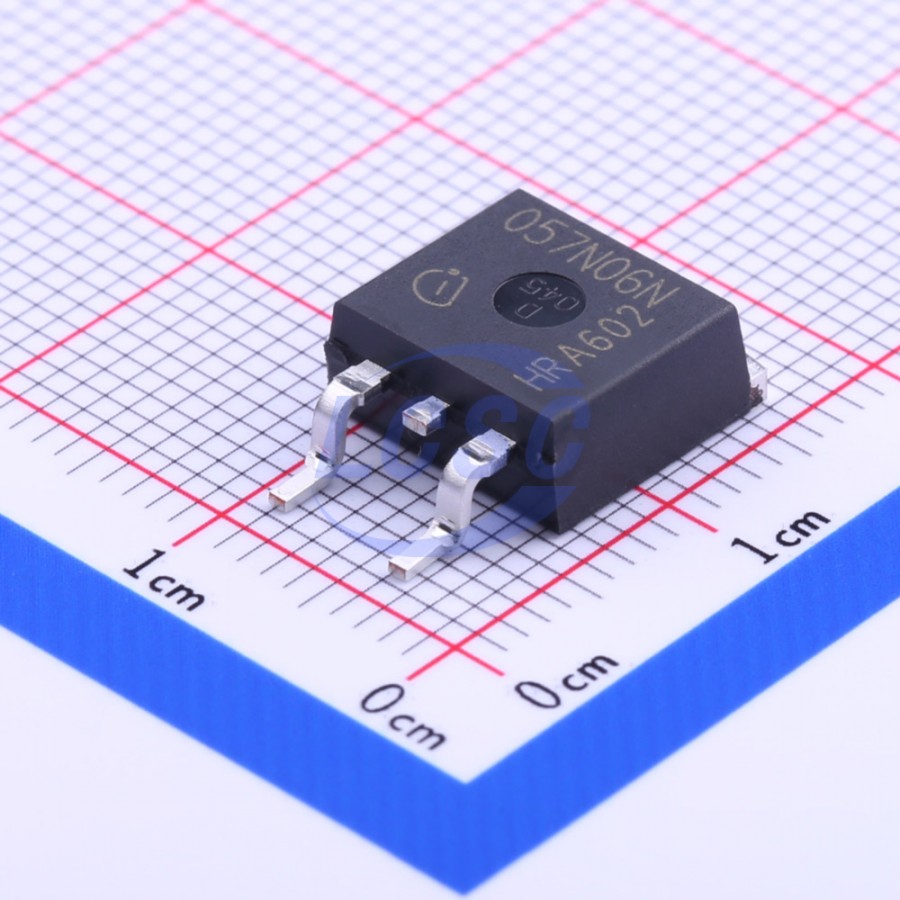

IPB057N06N
N-Channel 60V 45A 83W Surface Mount TO-263-3
TO-263-3ROHS3 CompliantActive
MOSFET N-CH 60V 45A TO-263-3
- Manufacturer
- Infineon
- Manufacturer part #
- IPB057N06N
- Store part #
- C151524
- Package / case
- TO-263-3
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
64 in stock
#C151524
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹293.79 | ₹293.79 |
| 10+ | ₹249.46 | ₹2,494.60 |
| 30+ | ₹221.66 | ₹6,649.80 |
| 100+ | ₹193.18 | ₹19,318.00 |
| 500+ | ₹180.14 | ₹90,070.00 |
| 1,000+ | ₹174.72 | ₹1,74,720.00 |
1 × ₹293.79
₹293.79
excl. GST
₹346.67 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB057N06N
₹293.79 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 490pF
- Ciss-Input Capacitance
- 2.5nF
- Pd - Power Dissipation
- 83W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 45A
- Reverse Transfer Capacitance (Crss)
- 44pF
- RDS(on)
- 5.7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 32nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.028 g
Overview
Key features
- Optimized for synchronous rectification
- 100% avalanche tested
- Superior thermal resistance
- N-channel, normal level
- Qualified according to JEDEC for target applications
- Pb-free lead plating; RoHS compliant
- Halogen-free according to IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HSH6040#C845624HUASHUO · TO-263 | HUASHUO | TO-263 | 20 | ₹106.74 · 20 in stock | View |
 | IPB065N10N3G#C69298Infineon · TO-263-3 | Infineon | TO-263-3 | 4 | ₹399.40 · 4 in stock | View |
 | IPB175N20NM6ATMA1#C50374445Infineon · TO-263-3 | Infineon | TO-263-3 | On request | ₹431.07 · 0 in stock | View |
 | IPB055N08NF2S#C5359112Infineon · TO-263-3 | Infineon | TO-263-3 | 703 | ₹194.61 · 703 in stock | View |
| CSD19532KTTT#C2877341TI · TO-263-3 | TI | TO-263-3 | 22 | ₹770.21 · 22 in stock | View | |
