InfineonDatasheet (PDF)

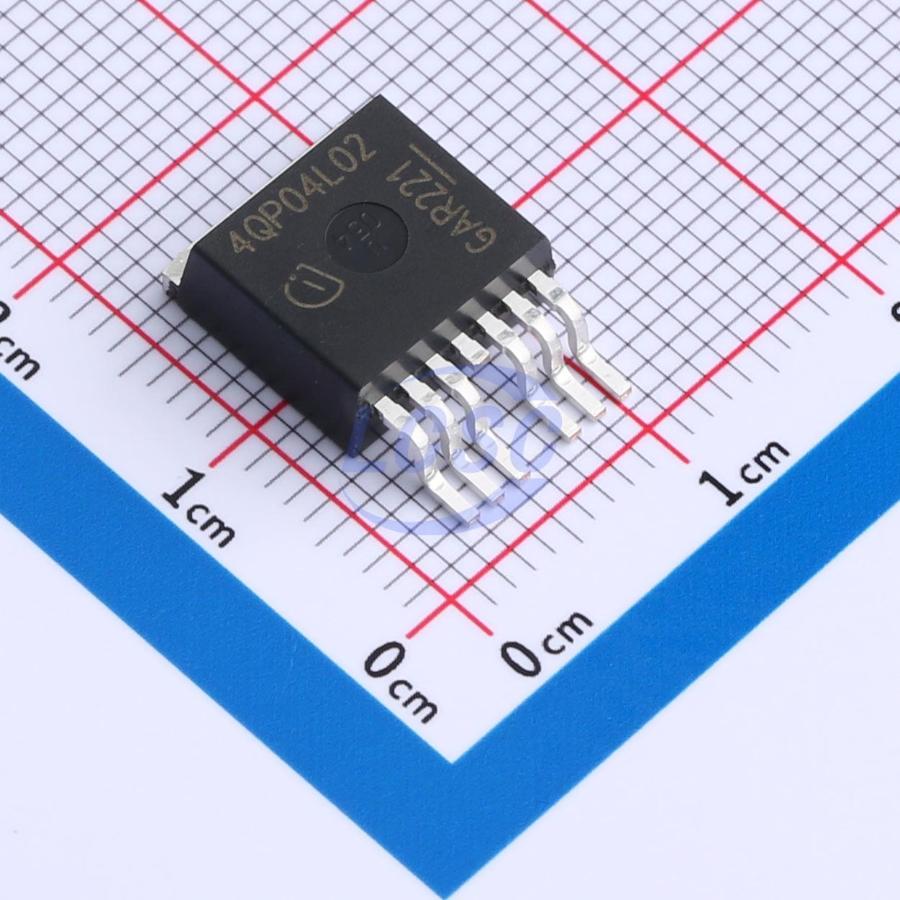

IPB180P04P4L-02
P-Channel 40V 180A 150W TO-263-7
TO-263-7ROHS3 CompliantActive
MOSFET P-CH 40V 180A TO-263-7
- Manufacturer
- Infineon
- Manufacturer part #
- IPB180P04P4L-02
- Store part #
- C536578
- Package / case
- TO-263-7
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,211 in stock
#C536578
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹390.67 | ₹390.67 |
| 10+ | ₹331.58 | ₹3,315.80 |
| 30+ | ₹294.53 | ₹8,835.90 |
| 100+ | ₹256.81 | ₹25,681.00 |
| 500+ | ₹239.60 | ₹1,19,800.00 |
| 1,000+ | ₹232.17 | ₹2,32,170.00 |
1 × ₹390.67
₹390.67
excl. GST
₹460.99 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB180P04P4L-02
₹390.67 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 4.57nF
- Ciss-Input Capacitance
- 18.7nF
- Pd - Power Dissipation
- 150W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 180A
- Reverse Transfer Capacitance (Crss)
- 360pF
- RDS(on)
- 2.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 220nC
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.69 g
Overview
Key features
- P-channel - Logic Level - Enhancement mode
- AEC qualified
- MSL1 up to 260°C peak reflow
- 175°C operating temperature
- Green Product (RoHS compliant)
- 100% Avalanche tested
- Intended for reverse battery protection
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IPB180P04P4-03#C536577Infineon · TO-263-7 | Infineon | TO-263-7 | 21 | ₹441.49 · 21 in stock | View |
 | CMB180P04G-7#C51793145Cmos · TO-263-7 | Cmos | TO-263-7 | 170 | ₹147.38 · 170 in stock | View |
 | IPB180P04P403ATMA2#C21547651Tokmas · TO-263-7L | Tokmas | TO-263-7L | 93 | ₹217.81 · 93 in stock | View |
 | IPB180P04P4L-02(TOKMAS)#C21547650Tokmas · TO-263-7L | Tokmas | TO-263-7L | On request | ₹150.17 · 0 in stock | View |
