InfineonDatasheet (PDF)

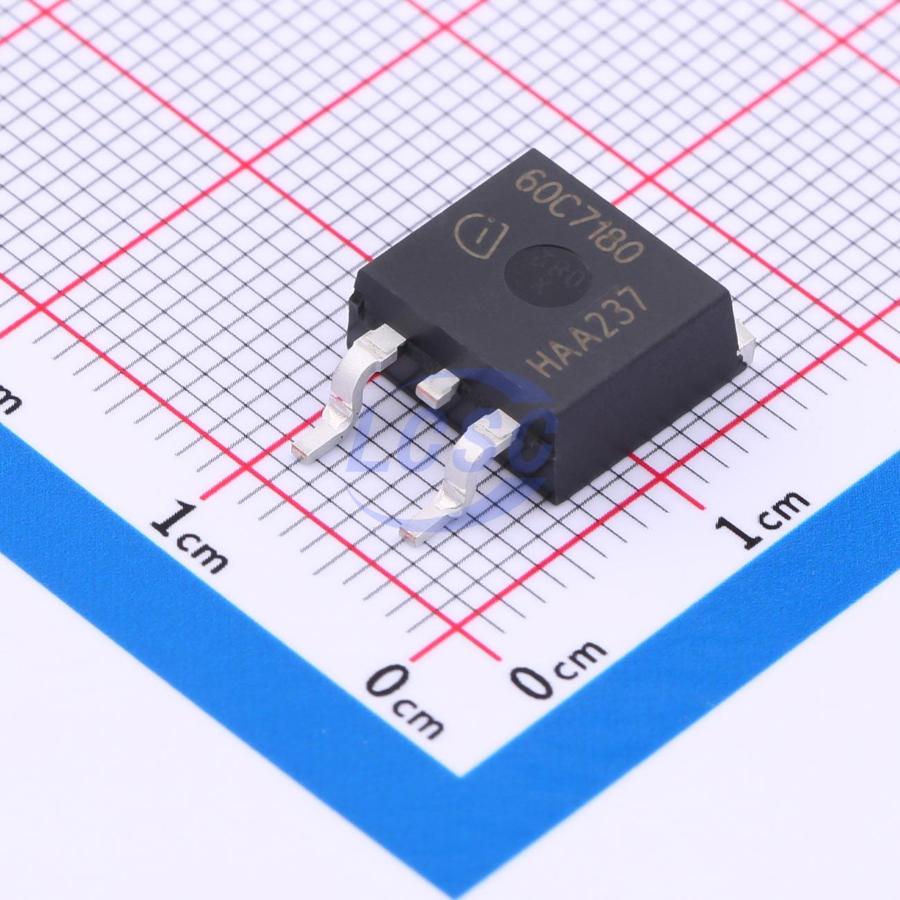

IPB60R180C7
600V 13A 68W 155mΩ@10V 1 N-channel N-Channel TO-263 Single FETs, MOSFETs RoHS
TO-263ROHS3 CompliantActive
- Manufacturer
- Infineon
- Manufacturer part #
- IPB60R180C7
- Store part #
- C536618
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23 in stock
#C536618
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹382.66 | ₹382.66 |
| 10+ | ₹324.86 | ₹3,248.60 |
| 30+ | ₹288.57 | ₹8,657.10 |
| 100+ | ₹251.42 | ₹25,142.00 |
| 500+ | ₹234.69 | ₹1,17,345.00 |
| 1,000+ | ₹227.52 | ₹2,27,520.00 |
1 × ₹382.66
₹382.66
excl. GST
₹451.54 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB60R180C7
₹382.66 for 1 + GST
Specifications
- Configuration
- Standalone
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 600V
- Output Capacitance(Coss)
- 18pF
- Current - Continuous Drain(Id)
- 13A
- Ciss-Input Capacitance
- 1.08nF
- Pd - Power Dissipation
- 68W
- RDS(on)
- 155mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 24nC
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 3.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.8 g
Overview
CoolMOS C7 is a revolutionary technology for high-voltage power MOSFETs, designed based on the Super Junction (SJ) principle. The 600V CoolMOS C7 series combines the experience of a leading SJ MOSFET supplier with best-in-class innovation. The 600V C7 is the first technology to achieve a product of on-resistance RDS(on) and die area A below 1Ω·mm².
Applications
- PFC and PWM stages (TTF, LLC) for high-power/high-performance SMPS applications, including computers, servers, telecom, UPS, and solar energy.
Key features
- Suitable for hard switching and soft switching (PFC and high-performance LLC)
- Enhances MOSFET dv/dt robustness up to 120V/ns
- Improves efficiency with best-in-class figures of merit RDS(on) * Eoss and RDS(on) * Qg
- Best-in-class RDS(on)-to-package ratio
- JEDEC certified (J-STD20 and JESD22) for industrial-grade applications
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ASB65R300E#C5440008ANHI · TO-263 | ANHI | TO-263 | 364 | ₹95.22 · 364 in stock | View |
 | STB24N60M6#C2970255ST · D2PAK | ST | D2PAK | 2 | ₹288.28 · 2 in stock | View |
 | NCE65T260D#C502905NCE · TO-263 | NCE | TO-263 | 498 | ₹180.01 · 498 in stock | View |
 | NCE65TF180D#C502886NCE · TO-263 | NCE | TO-263 | 43 | ₹332.73 · 43 in stock | View |
 | IPB60R125CP#C536612Infineon · TO-263 | Infineon | TO-263 | 10 | ₹833.97 · 10 in stock | View |
