InfineonDatasheet (PDF)

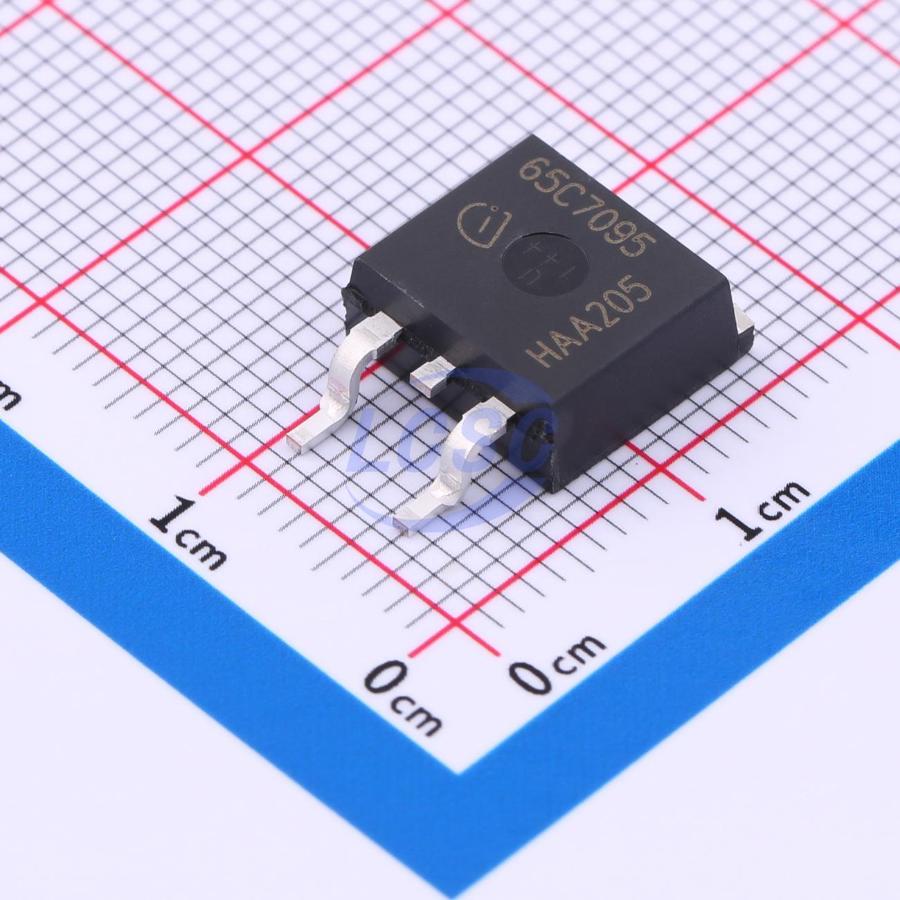

IPB65R095C7
N-Channel 650V 15A 128W Surface Mount TO-263
TO-263ROHS3 CompliantActive
MOSFET N-CH 650V 15A TO-263
- Manufacturer
- Infineon
- Manufacturer part #
- IPB65R095C7
- Store part #
- C536633
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C536633
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,697.28 | ₹1,697.28 |
| 10+ | ₹1,472.51 | ₹14,725.10 |
| 30+ | ₹1,335.63 | ₹40,068.90 |
| 100+ | ₹1,220.79 | ₹1,22,079.00 |
1 × ₹1,697.28
₹1,697.28
excl. GST
₹2,002.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB65R095C7
₹1,697.28 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 33pF
- Ciss-Input Capacitance
- 2.14nF
- Pd - Power Dissipation
- 128W
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 650V
- Current - Continuous Drain(Id)
- 15A
- Reverse Transfer Capacitance (Crss)
- 763pF
- RDS(on)
- 95mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 45nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.85 g
Overview
CoolMOS™ is a revolutionary technology for high voltage power MOSFETs, designed according to the superjunction (SJ) principle. CoolMOS™ C7 series combines the experience of the leading SJ MOSFET supplier with high class innovation. The product portfolio provides all benefits of fast switching superjunction MOSFETs offering better efficiency, reduced gate charge, easy implementation and outstanding reliability.
Applications
- PFC stages and hard switching PWM stages for e.g. Computing, Server, Telecom, UPS and Solar.
Key features
- Increased MOSFET dv/dt ruggedness
- Better efficiency due to best in class FOM RDS(on)*Eoss and RDS(on)*Qg
- Best in class RDS(on) /package
- Easy to use/drive
- Pb-free plating, halogen free mold compound
- Qualified for industrial grade applications according to JEDEC (J-STD20 and JESD22)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS65R190S#C49317671REASUNOS · TO-263 | REASUNOS | TO-263 | 402 | ₹141.79 · 402 in stock | View |
 | ASB65R220E#C18199767ANHI · TO-263 | ANHI | TO-263 | 146 | ₹146.72 · 146 in stock | View |
 | IPB60R160P6#C536615Infineon · TO-263 | Infineon | TO-263 | 11 | ₹306.14 · 11 in stock | View |
 | STB35N65DM2#C5268669ST · D2PAK | ST | D2PAK | 83 | ₹651.07 · 83 in stock | View |
 | IPB65R190CFDA#C536642Infineon · TO-263 | Infineon | TO-263 | 49 | ₹680.93 · 49 in stock | View |
