InfineonDatasheet (PDF)

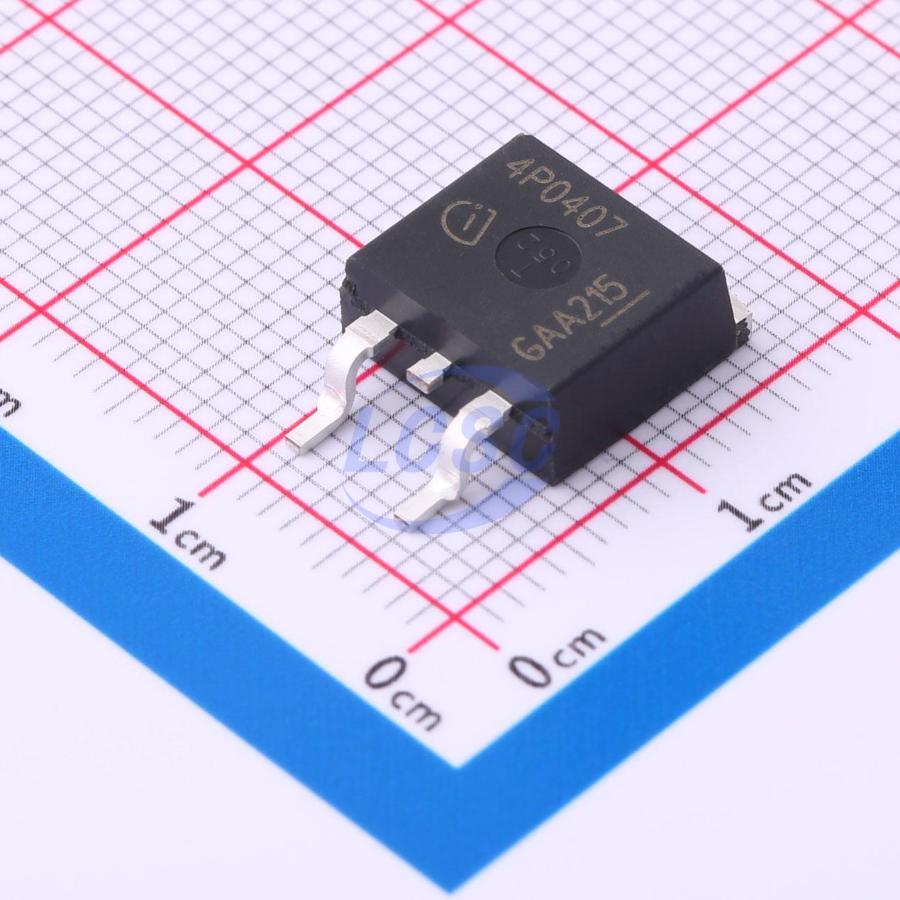

IPB80P04P407ATMA1
P-Channel 40V 80A 88W Surface Mount TO-263
TO-263ROHS CompliantActive
MOSFET P-CH 40V 80A TO-263
- Manufacturer
- Infineon
- Manufacturer part #
- IPB80P04P407ATMA1
- Store part #
- C2983566
- Package / case
- TO-263
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1 in stock
#C2983566
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹287.47 | ₹287.47 |
| 10+ | ₹243.64 | ₹2,436.40 |
| 30+ | ₹216.14 | ₹6,484.20 |
| 100+ | ₹174.25 | ₹17,425.00 |
| 500+ | ₹161.58 | ₹80,790.00 |
| 1,000+ | ₹155.98 | ₹1,55,980.00 |
1 × ₹287.47
₹287.47
excl. GST
₹339.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
IPB80P04P407ATMA1
₹287.47 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 2.28nF
- Ciss-Input Capacitance
- 6.085nF
- Pd - Power Dissipation
- 88W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 40V
- Current - Continuous Drain(Id)
- 80A
- Reverse Transfer Capacitance (Crss)
- 91pF
- RDS(on)
- 7.4mΩ@10V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 89nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 4V
- Type
- P-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.299 g
Overview
Key features
- P-channel - Normal Level - Enhancement mode
- AEC qualified
- MSL1 up to 260°C peak reflow
- 17500 operating temperature
- Green package (RoHS compliant)
- 100% Avalanche tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LWS6008A5#C20630414Lewa Micro · TO-263 | Lewa Micro | TO-263 | 783 | ₹171.02 · 783 in stock | View |
 | WSK92P06#C5185322Winsok Semicon · TO-263-2L | Winsok Semicon | TO-263-2L | 103 | ₹210.46 · 103 in stock | View |
 | AGM60P130H#C46610123AGMSEMI · TO-263 | AGMSEMI | TO-263 | 58 | ₹176.36 · 58 in stock | View |
 | HSH100P06#C7543771HUASHUO · TO-263 | HUASHUO | TO-263 | 1,045 | ₹122.83 · 1,045 in stock | View |
 | IXTA140P05T#C22415820Littelfuse/IXYS · TO-263AA | Littelfuse/IXYS | TO-263AA | 10 | ₹1,062.41 · 10 in stock | View |
