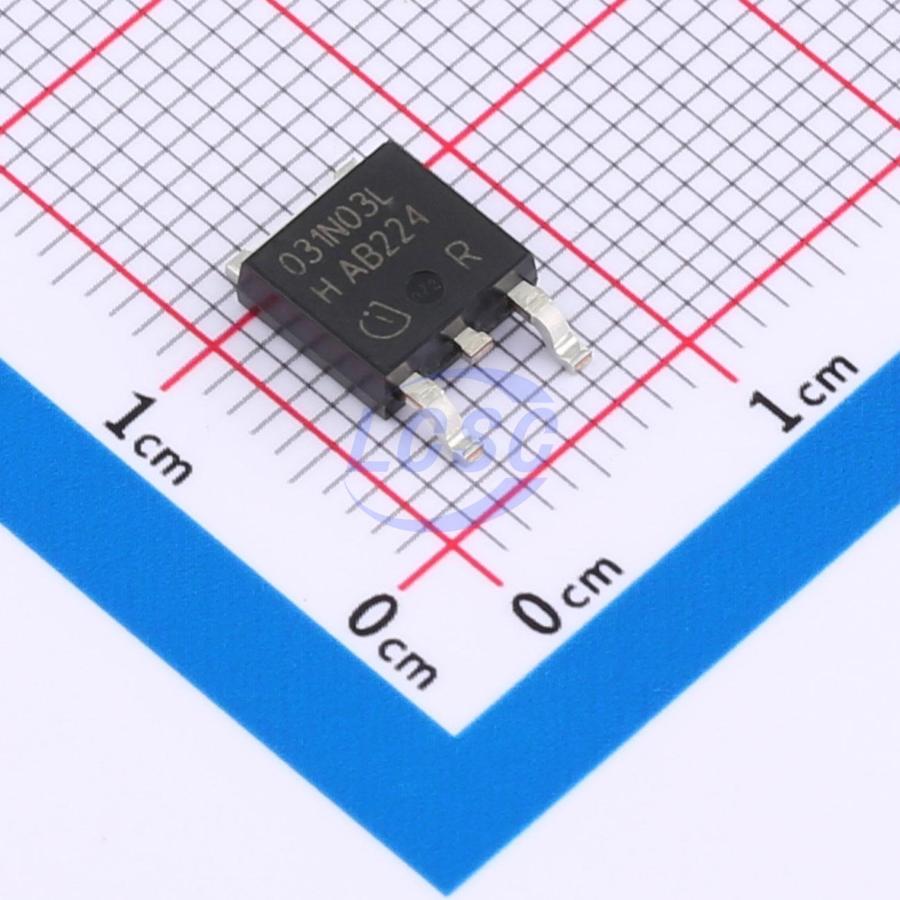

IPD031N03LG
N-Channel 30V 90A 94W Surface Mount TO-252
TO-252ROHS3 CompliantActive
MOSFET N-CH 30V 90A TO-252
- Manufacturer
- Infineon
- Manufacturer part #
- IPD031N03LG
- Store part #
- C6279876
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
45 in stock
#C6279876
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.41 | ₹80.41 |
| 10+ | ₹78.67 | ₹786.70 |
| 30+ | ₹77.58 | ₹2,327.40 |
| 100+ | ₹76.28 | ₹7,628.00 |
1 × ₹80.41
₹80.41
excl. GST
₹94.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD031N03LG
₹80.41 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.9nF
- Ciss-Input Capacitance
- 5.3nF
- Pd - Power Dissipation
- 94W
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 90A
- Reverse Transfer Capacitance (Crss)
- 81pF
- RDS(on)
- 3.1mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 51nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.447 g
Overview
Applications
- High-frequency isolated DC-DC converters with synchronous rectification for telecom and industrial applications
- High-frequency buck converters for computer processor power supplies
Key features
- Fast switching MOSFET for SMPS
- Technology optimized for DC/DC converters
- JEDEC-qualified for target applications
- N-channel, logic level
- Excellent gate charge × RDS(on) product (FOM)
- Ultra-low RDS(on)
- Avalanche rated
- Lead-free finish; RoHS compliant
- Halogen-free per IEC61249-2-21
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DOD100N03#C36499184DOINGTER · TO-252 | DOINGTER | TO-252 | 570 | ₹16.89 · 570 in stock | View |
 | LWN3004A4#C54221208Lewa Micro · TO-252 | Lewa Micro | TO-252 | 2,500 | ₹36.33 · 2,500 in stock | View |
 | CMD031N03L#C7501160Cmos · TO-252 | Cmos | TO-252 | 95 | ₹36.74 · 95 in stock | View |
 | AGM402D-G#C41349464AGMSEMI · TO-252 | AGMSEMI | TO-252 | 20 | ₹49.97 · 20 in stock | View |
 | IRFR7446TRPBF#C97243Infineon · TO-252 | Infineon | TO-252 | 2,390 | ₹79.90 · 2,390 in stock | View |
