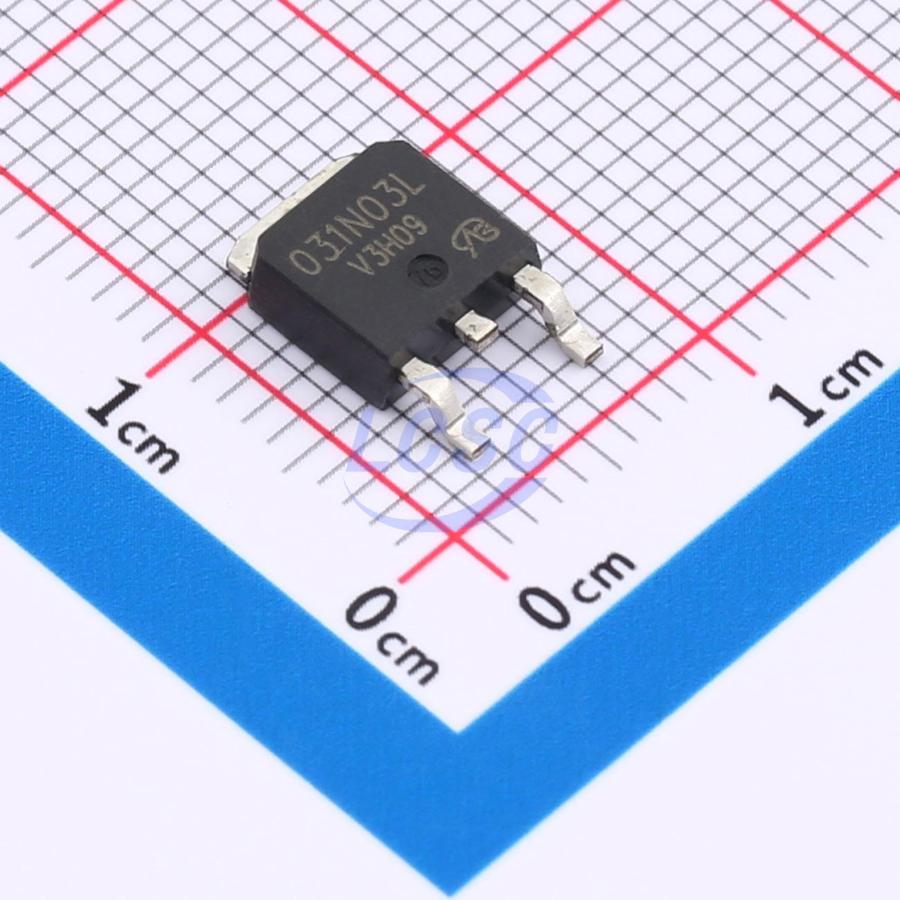

IPD031N03LG-VB
N-Channel 30V 120A 250W Surface Mount TO-252
TO-252ROHS CompliantActive
MOSFET N-CH 30V 120A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- IPD031N03LG-VB
- Store part #
- C7568802
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
59 in stock
#C7568802
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹177.43 | ₹177.43 |
| 10+ | ₹149.78 | ₹1,497.80 |
| 30+ | ₹136.07 | ₹4,082.10 |
| 100+ | ₹122.35 | ₹12,235.00 |
| 500+ | ₹84.25 | ₹42,125.00 |
| 1,000+ | ₹80.12 | ₹80,120.00 |
1 × ₹177.43
₹177.43
excl. GST
₹209.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
IPD031N03LG-VB
₹177.43 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+175℃
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 120A
- Pd - Power Dissipation
- 250W
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 171nC@10V;81.5nC@4.5V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.495 g
Overview
Applications
- OR gate
- Server
- DC/DC
Key features
- Trench Power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per EU Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RU30106L-VB#C29779010VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹136.96 · 20 in stock | View |
 | LR7843-VB#C5137375VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 14 | ₹170.96 · 14 in stock | View |
 | IRLR7833TRPBF-VB#C7568894VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹144.30 · 20 in stock | View |
 | VBZE90N03#C700664VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 4 | ₹94.74 · 4 in stock | View |
 | HM150N03K-VB#C20755510VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹142.63 · 50 in stock | View |
